SP-4A Testing Brake Switch Circuit

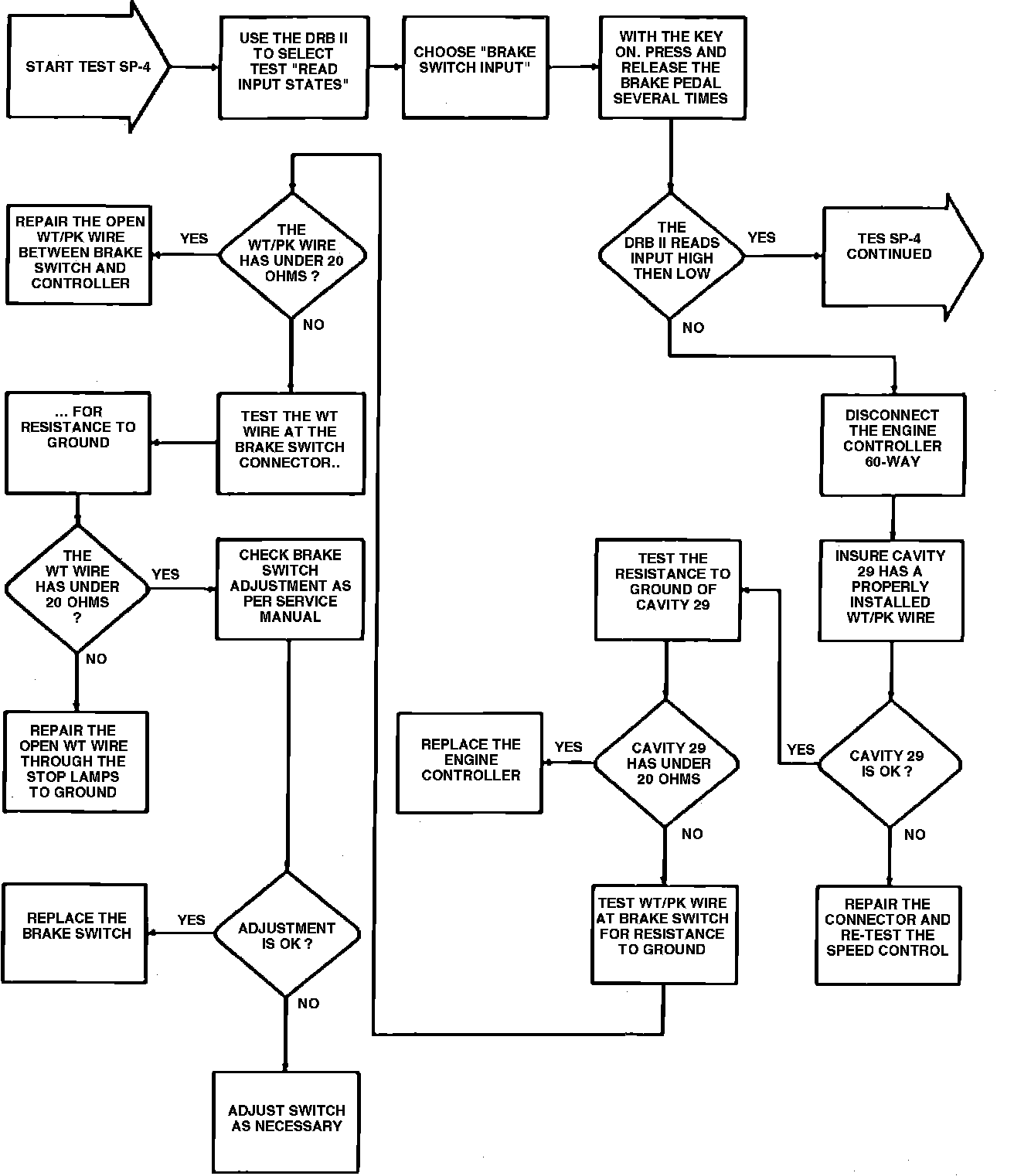

Fig. 5 Test SP-4, Testing Brake Switch Circuit (Part 1 Of 4):

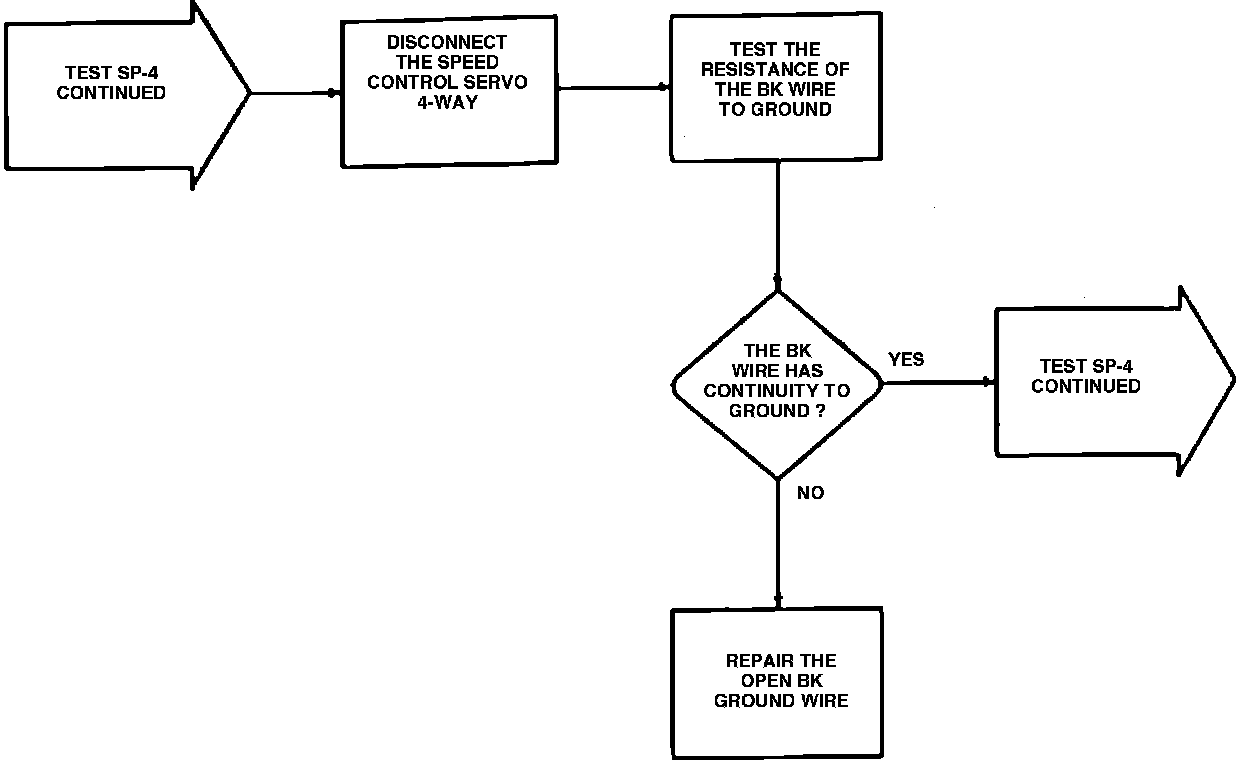

Fig. 5 Test SP-4, Testing Brake Switch Circuit (Part 2 Of 4):

Fig. 5 Test SP-4, Testing Brake Switch Circuit (Part 3 Of 4):

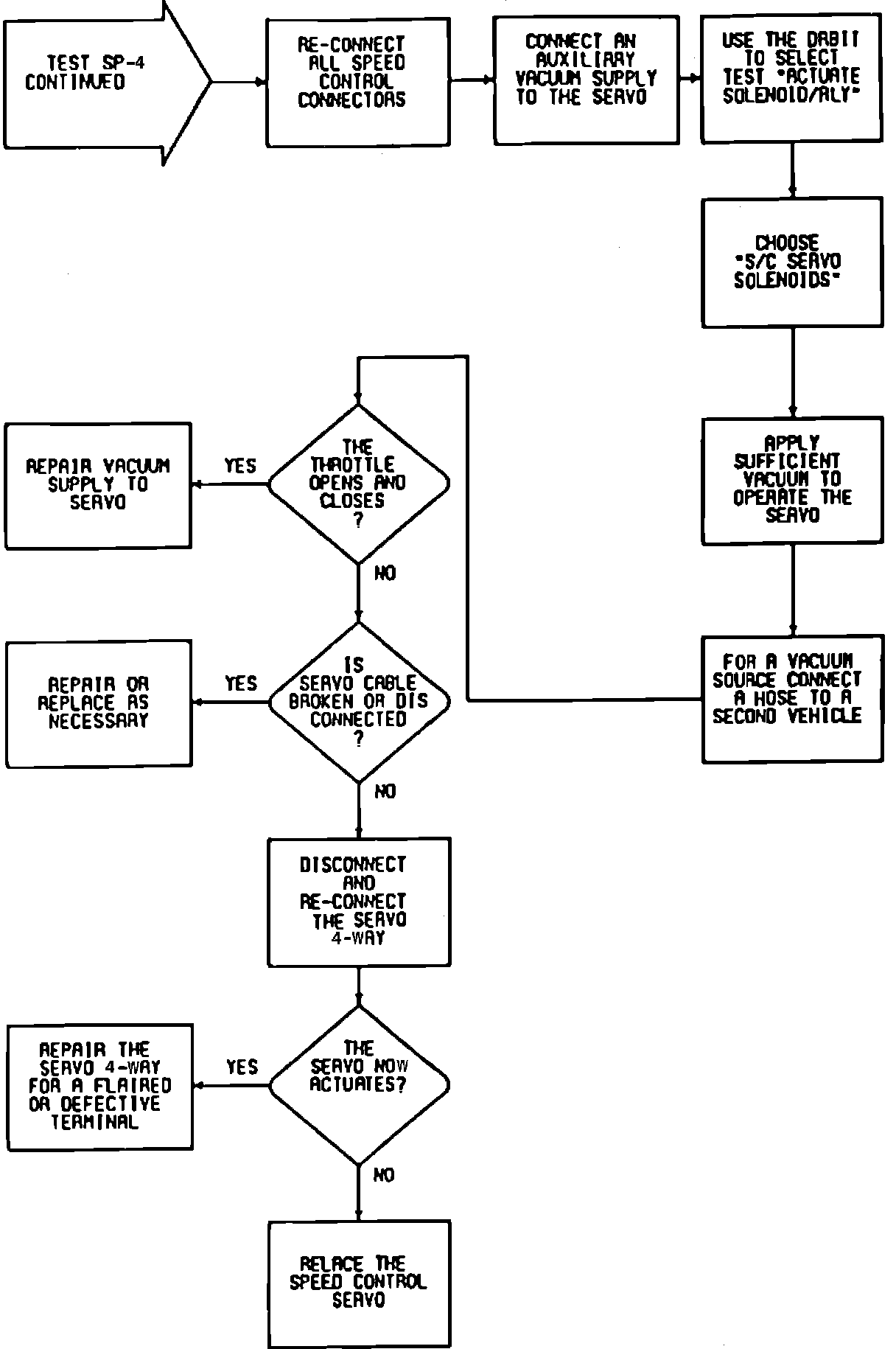

Fig. 5 Test SP-4, Testing Brake Switch Circuit (Part 4 Of 4):
