SP-3 Testing Speed Control Switch

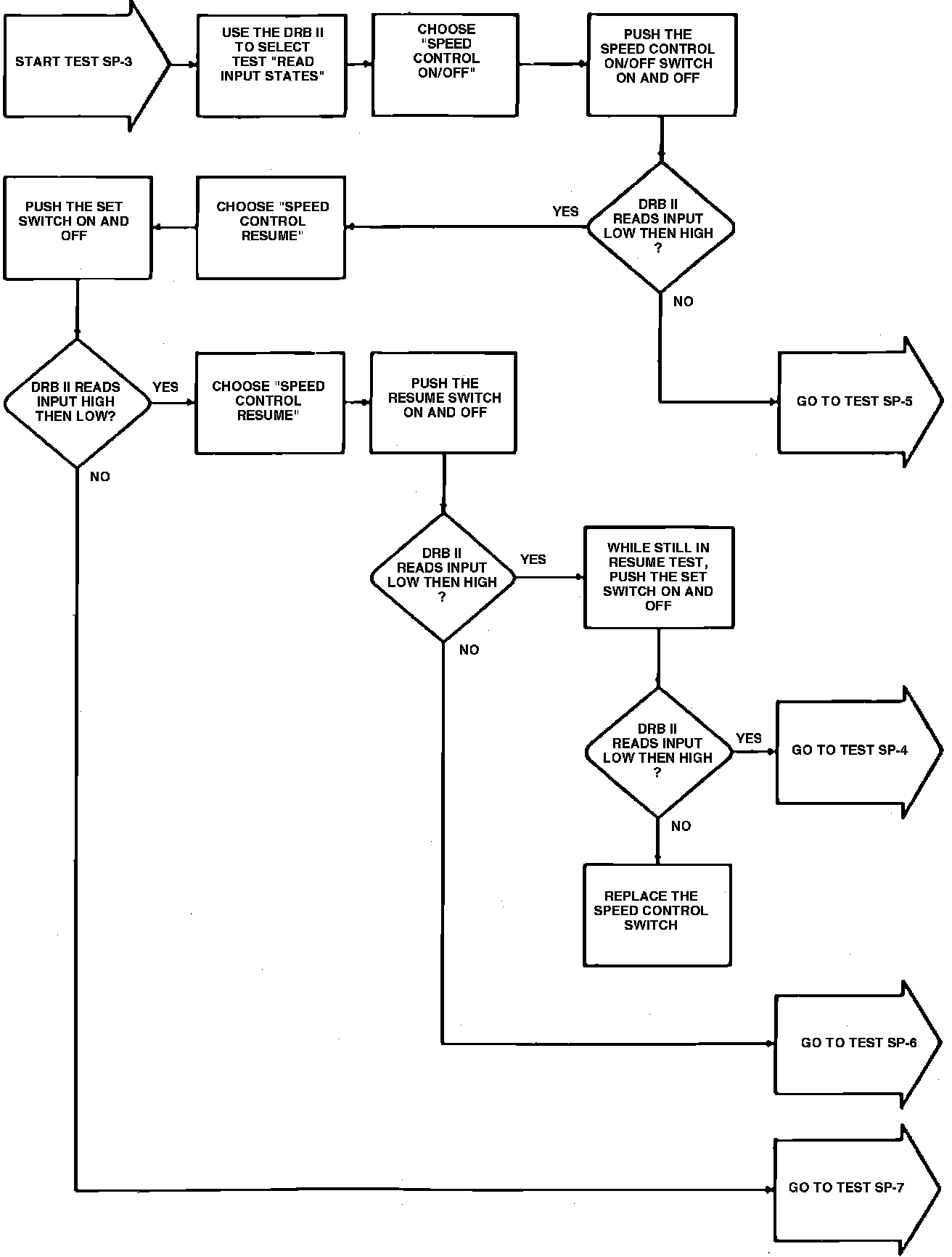

Fig. 4 Test SP-3, Testing Speed Control Switch:

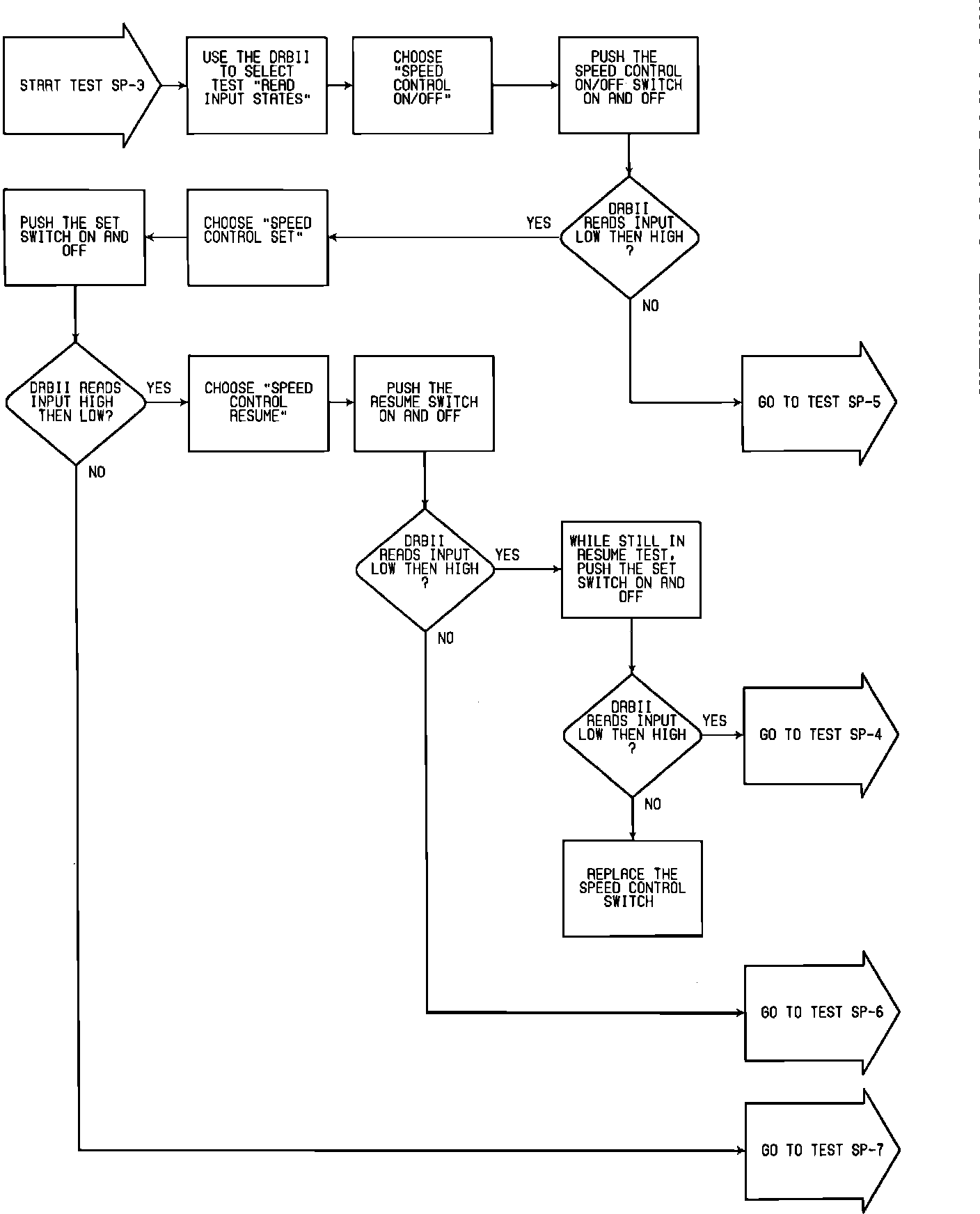

Checking Speed Control Switch:
