SP-2 Checking For Fault Code 34

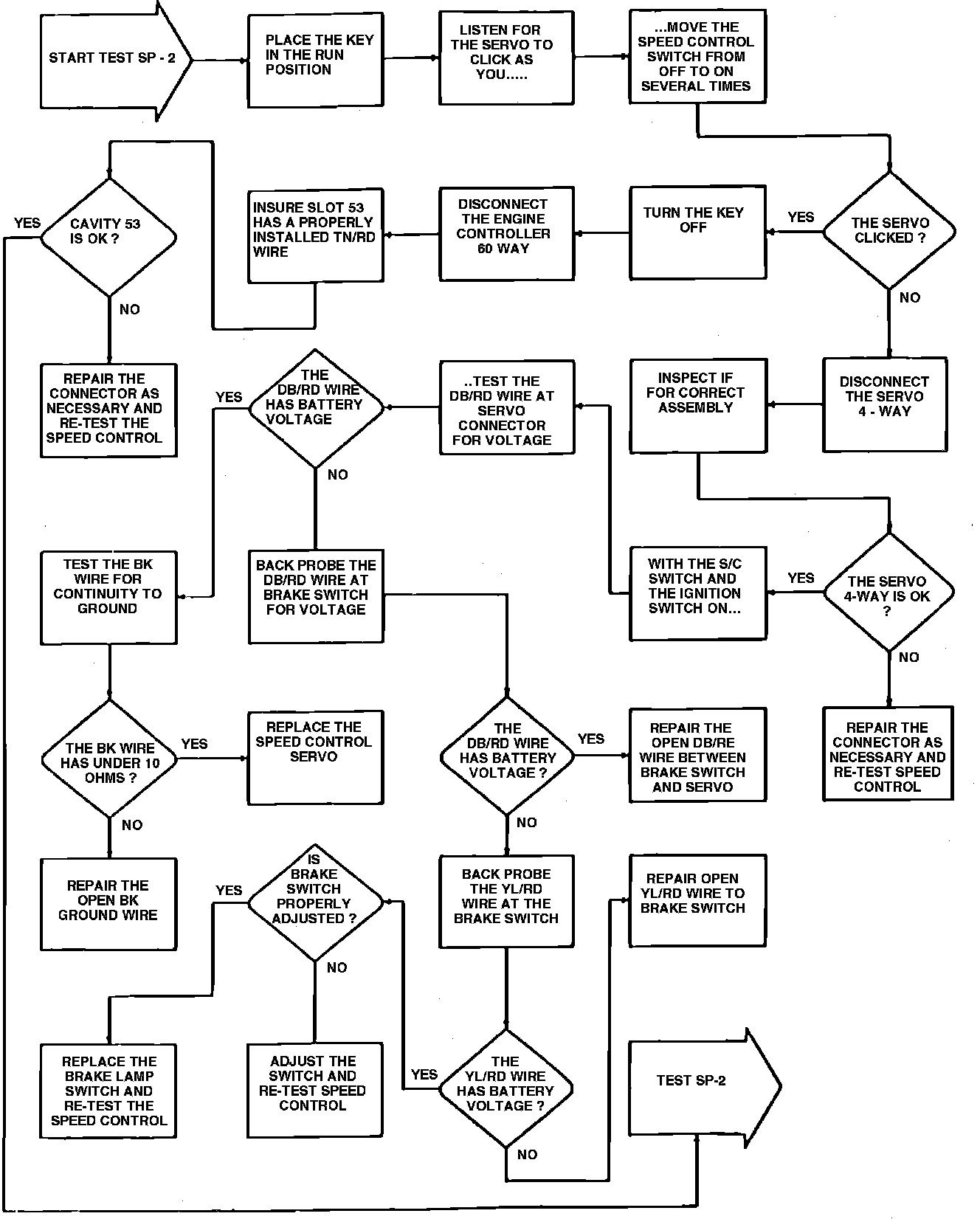

Fig. 3 Test SP-2, Checking For Fault Code 34 (Part 1 Of 2):

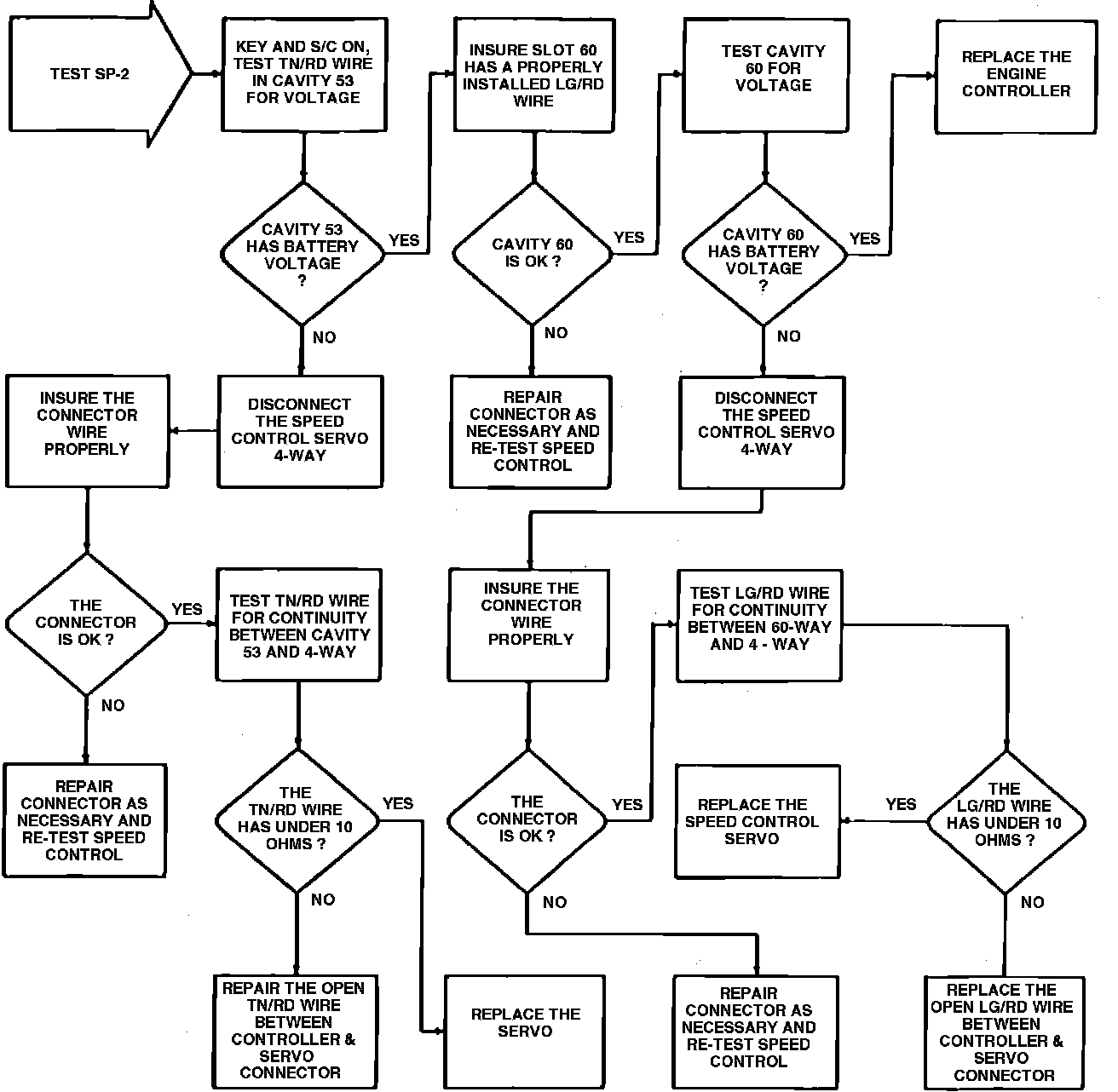

Fig. 3 Test SP-2, Checking For Fault Code 34 (Part 2 Of 2):
