Plymouth
>>
1989
>>
Horizon L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Speed Control (SC) Tests
>>
SC-4A-Brake Switch Circuit
SC-4A-Brake Switch Circuit

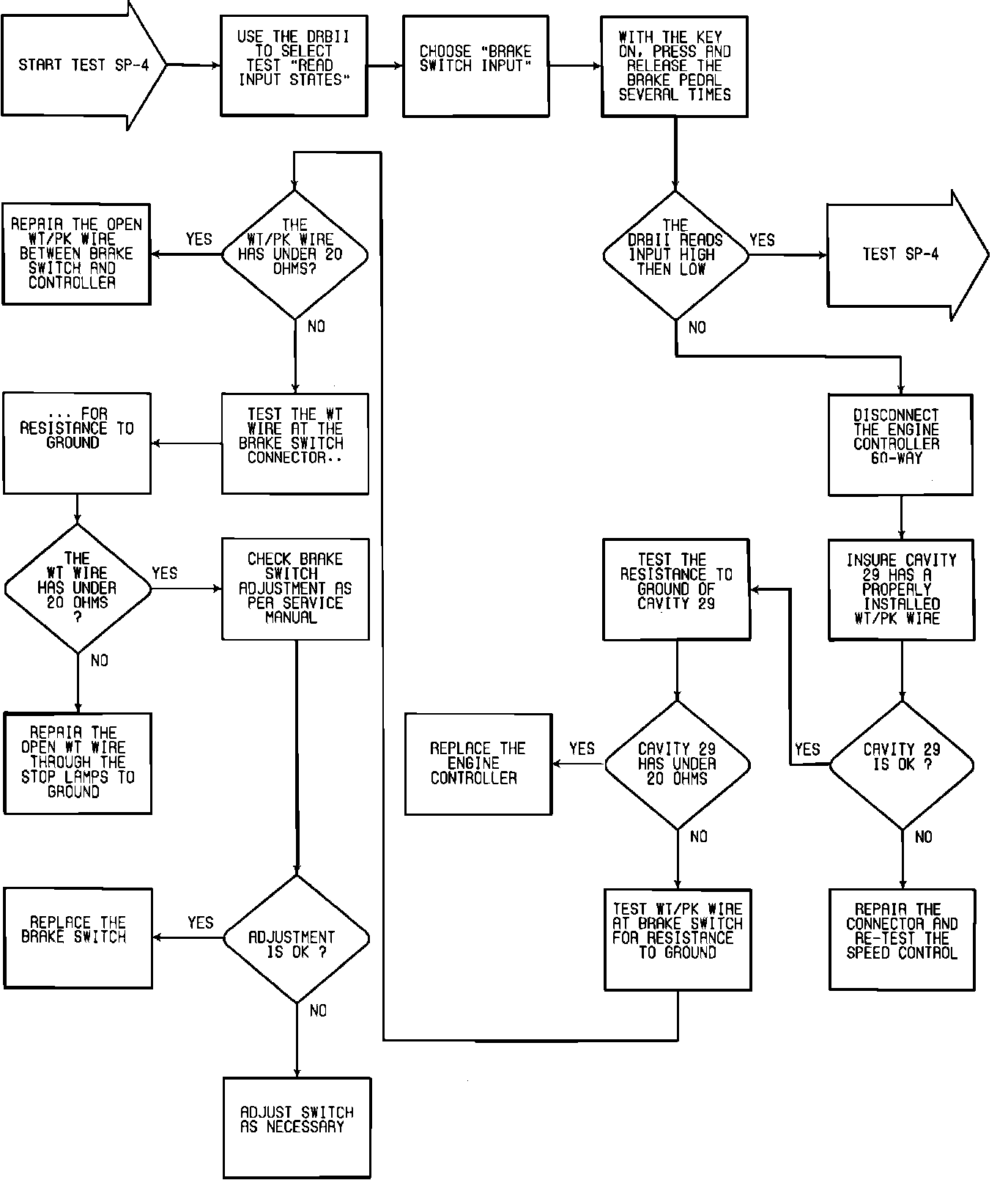

Test 4a-Brake Switch Circuit:
