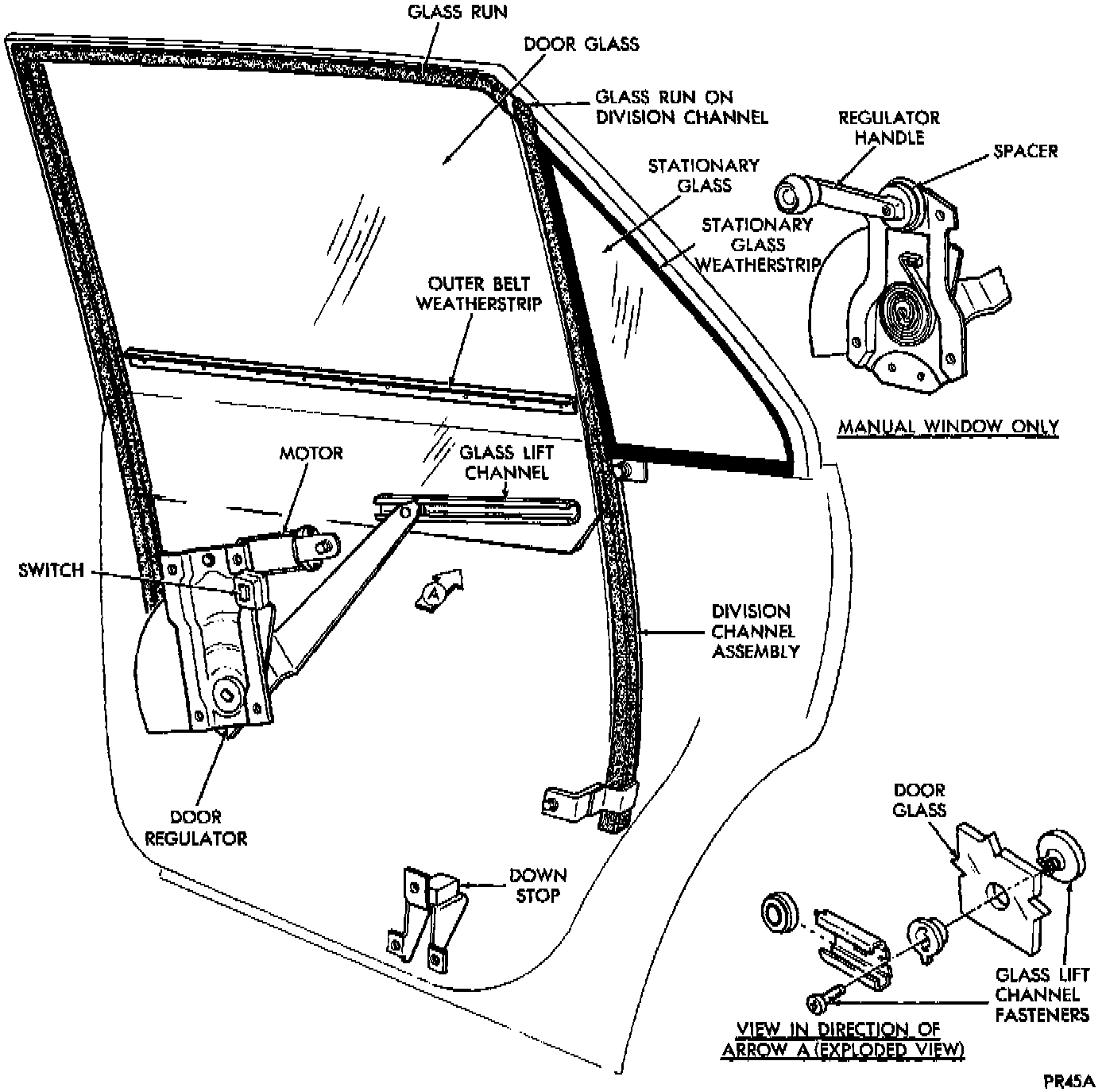

Rear Door Window Regulator
Glass Guidance System:
REMOVAL
1. Remove trim panel and plastic air shield.
2. Place glass at approximately 3/4 full up position.
3. Disconnect regulator from wiring harness (if equipped with power windows).
4. Move wiring harness so that it does not obstruct the large access hole.
5. With glass secured, remove rivets attaching the regulator to inner panel.
6. Slide regulator arm out of glass lift channel.
7. Remove regulator through large access hole.
INSTALLATION
1. Install regulator through large access hole.
2. Slide regulator arm into glass lift channel.
3. Secure regulator to the inner panel.
4. Connect regulator to wiring harness and clip wiring harness to inner panel (if equipped with power windows).
5. Install the plastic air shield and trim panel.
NOTE: Glass readjustment should not be required.
