Lock-Up Module

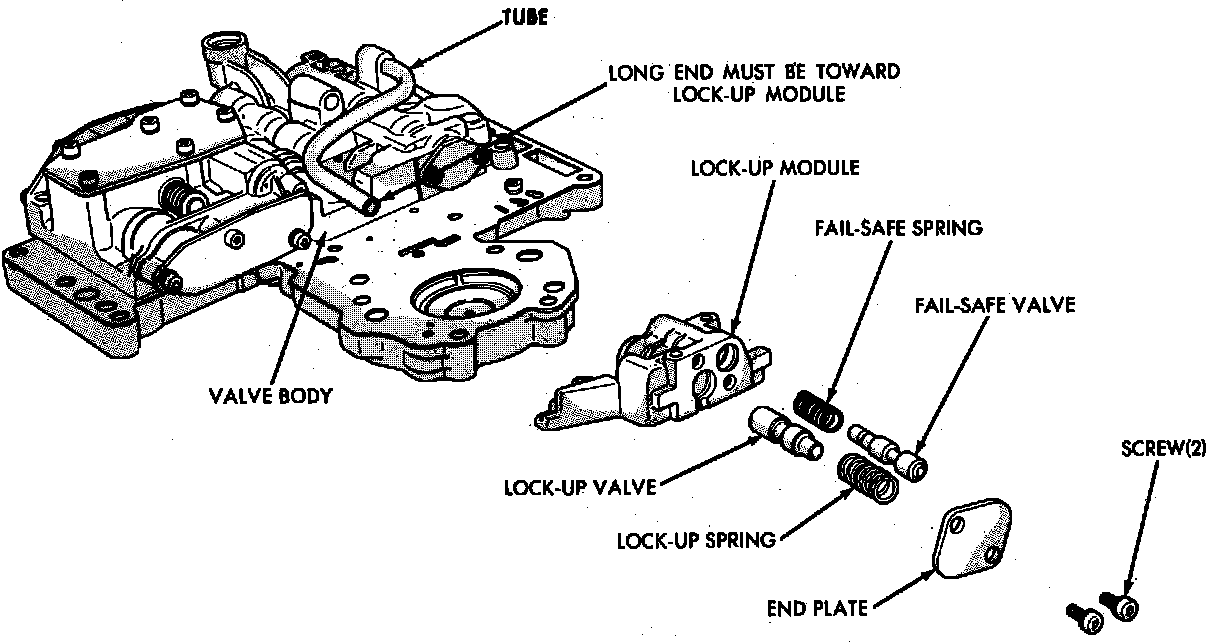

Fig. 8 Lock-up Module Removal:

1. Remove end plate retaining screws and end plate from module, Fig. 8.
2. Remove lock-up spring and valve and fail-safe valve and spring. Tag springs to aid reassembly.
3. Remove lock-up module from valve body.
4. Reverse procedure to install, torquing valve body screws to 35 inch lbs.
