Caster & Camber

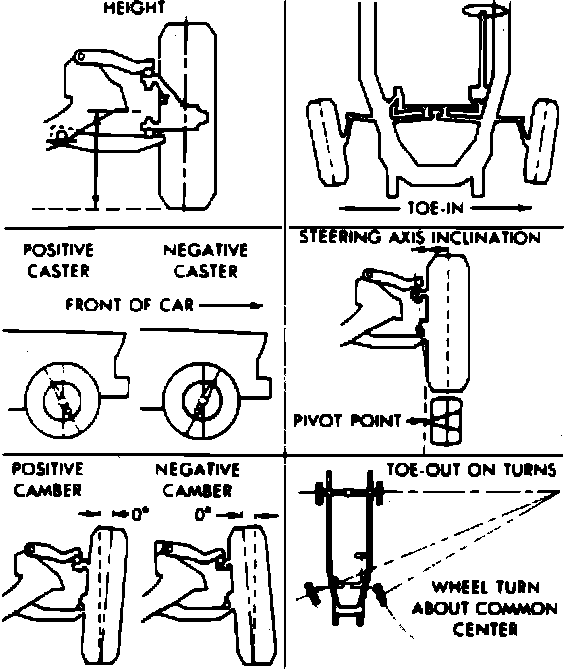

Fig. 2 Alignment Factors:

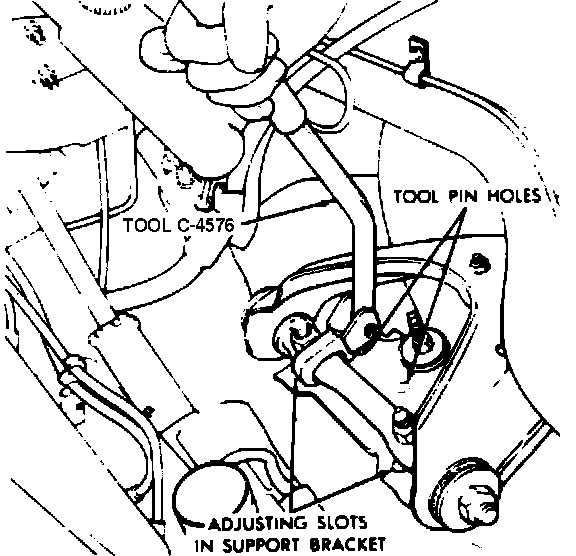

Fig. 3 Adjusting Camber & Caster Using Claw No. C-4576:

Front suspension height must be checked and corrected as necessary before performing wheel alignment.
1. Record initial camber and caster readings before loosening pivot bar bolt nuts.
2. Remove all foreign material from exposed threads of pivot bar adjusting bolt nuts, then loosen nuts slightly holding pivot bar.
3. Adjusting claw No. C-4576 is required to adjust caster and camber. When performing adjustments, the camber settings should be held as close as possible to the "desired" setting, and the caster setting should be held as nearly equal as possible on both wheels.
There may be cases when the vehicle may not have sufficient positive camber adjustment. Upper control arm plate spacers are available that will allow more positive camber adjustment, if required. If this condition is encountered, use spacer 1-4014352 for front suspension upper control arm front pivot support and spacer 1-4014353 for the rear pivot support. To install spacers, proceed as follows:
1. Loosen but do not remove caster/camber adjustment nut.
2. Raise vehicle and remove wheel and tire assembly.
3. Loosen but do not remove shock absorber upper mounting nut.
4. Remove two support plate bolts at front end of plate, then loosen two rear bolts enough to slide front spacer between support plate and frame.
5. Align holes in spacer with holes in support plate and frame.
6. Insert two front bolts and start threads. Do not tighten.
7. Repeat steps 4 through 6 for rear spacer.
8. Torque the four support plate bolts to 65 ft. lbs. and the shock absorber upper nut to 25 ft. lbs.
9. Lower vehicle and adjust alignment on side that spacers were installed.
