Plymouth
>>
1989
>>
Grand Fury/Salon V8-318 5.2L VIN P 2-bbl
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Connector Views
Connector Views
Fuse Applications:

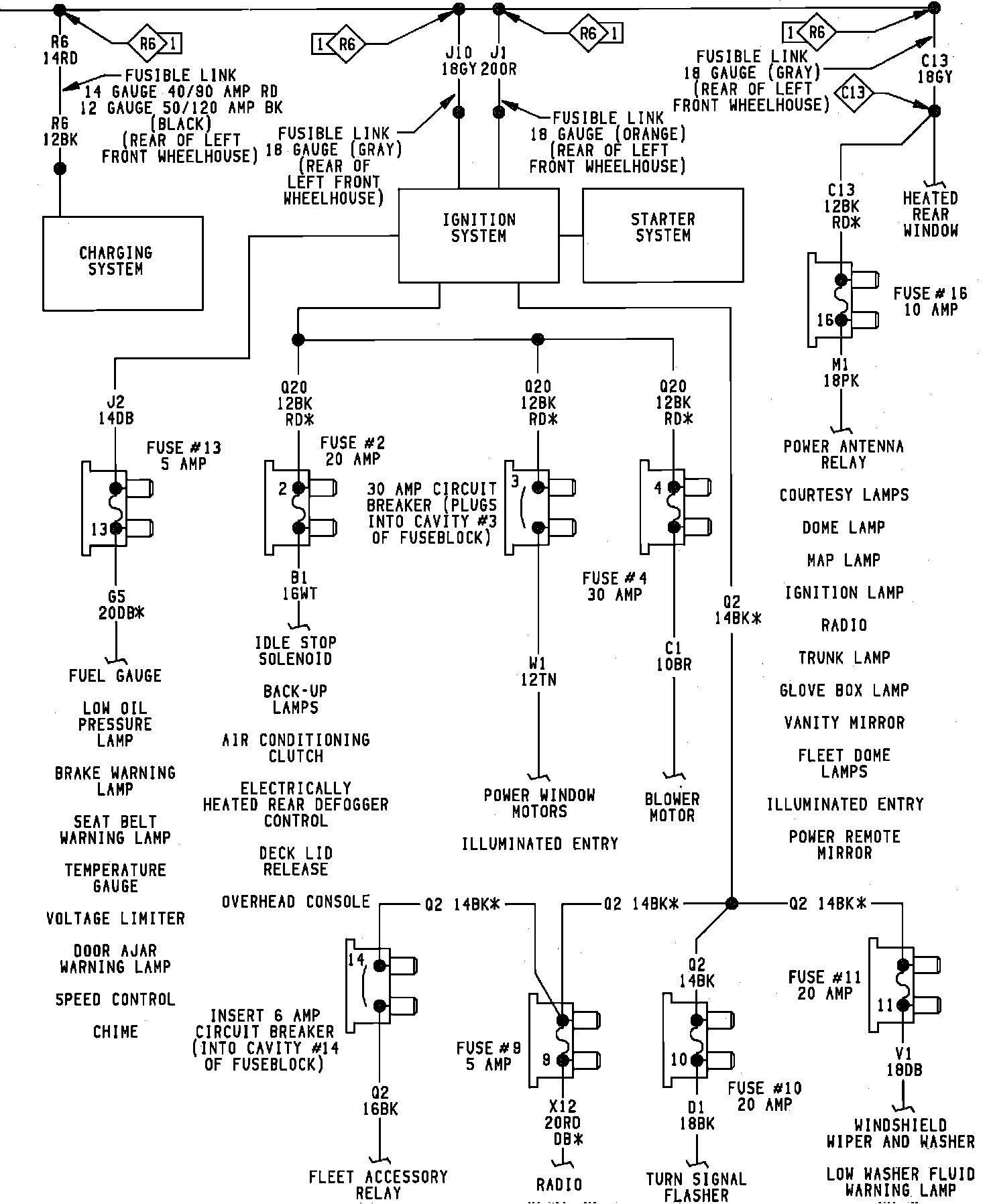

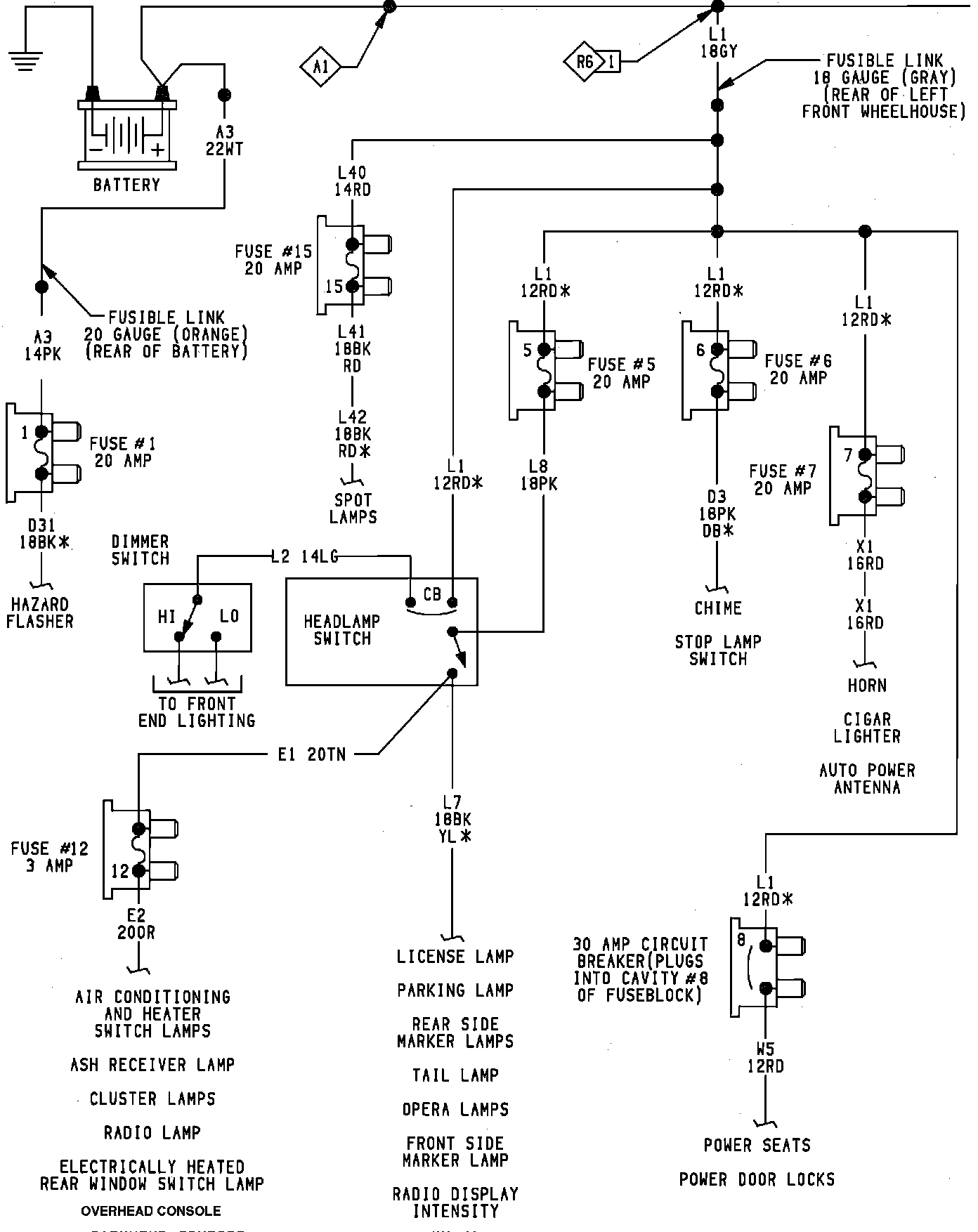

Fuse Application Wiring Diagram:

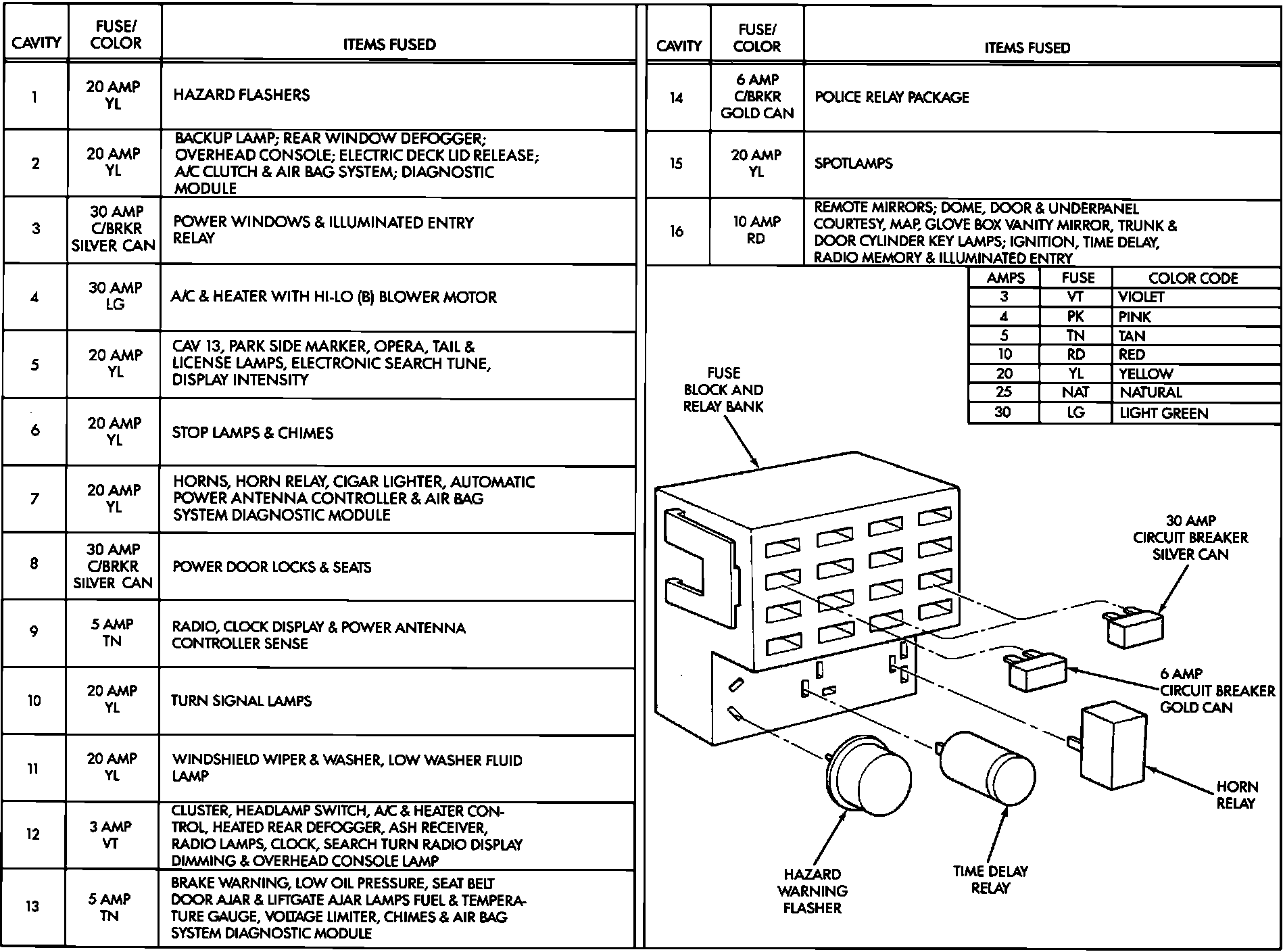

Fuse Application Chart:
