Accelerator Pedal: Service and Repair

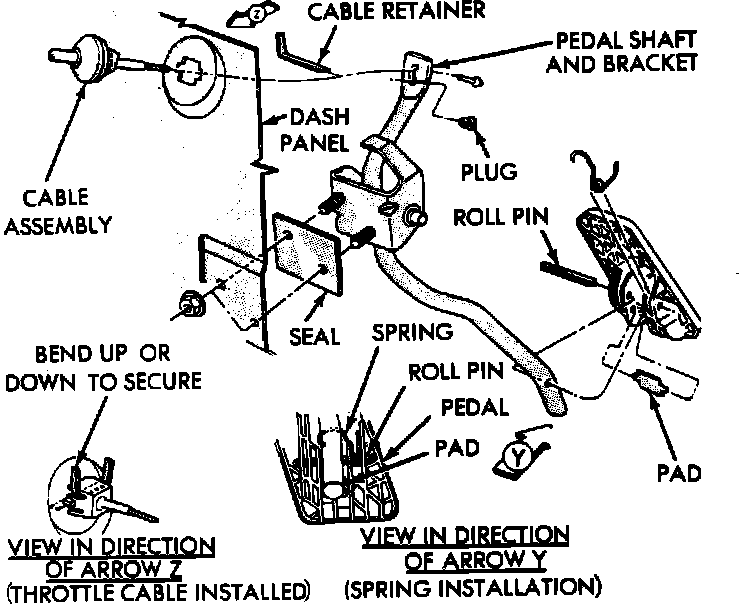

Accelerator Pedal Assembly:

REMOVAL
1. From inside the vehicle, disconnect the cable from the from the pedal shaft while holding the pedal up.
2. From under the hood, remove the accelerator mounting nuts and remove the assembly.

INSTALLATION
1. Install the pedal assembly in the car, and tighten nuts.
2. Holding the pedal up, connect the cable to the pedal arm.
