Home >> Plymouth >> 1989 >> Grand Fury/Salon V8-318 5.2L VIN P 2-bbl >> Repair and Diagnosis >> Lighting and Horns >> Brake Light Switch >> Locations

Brake Light Switch: Locations

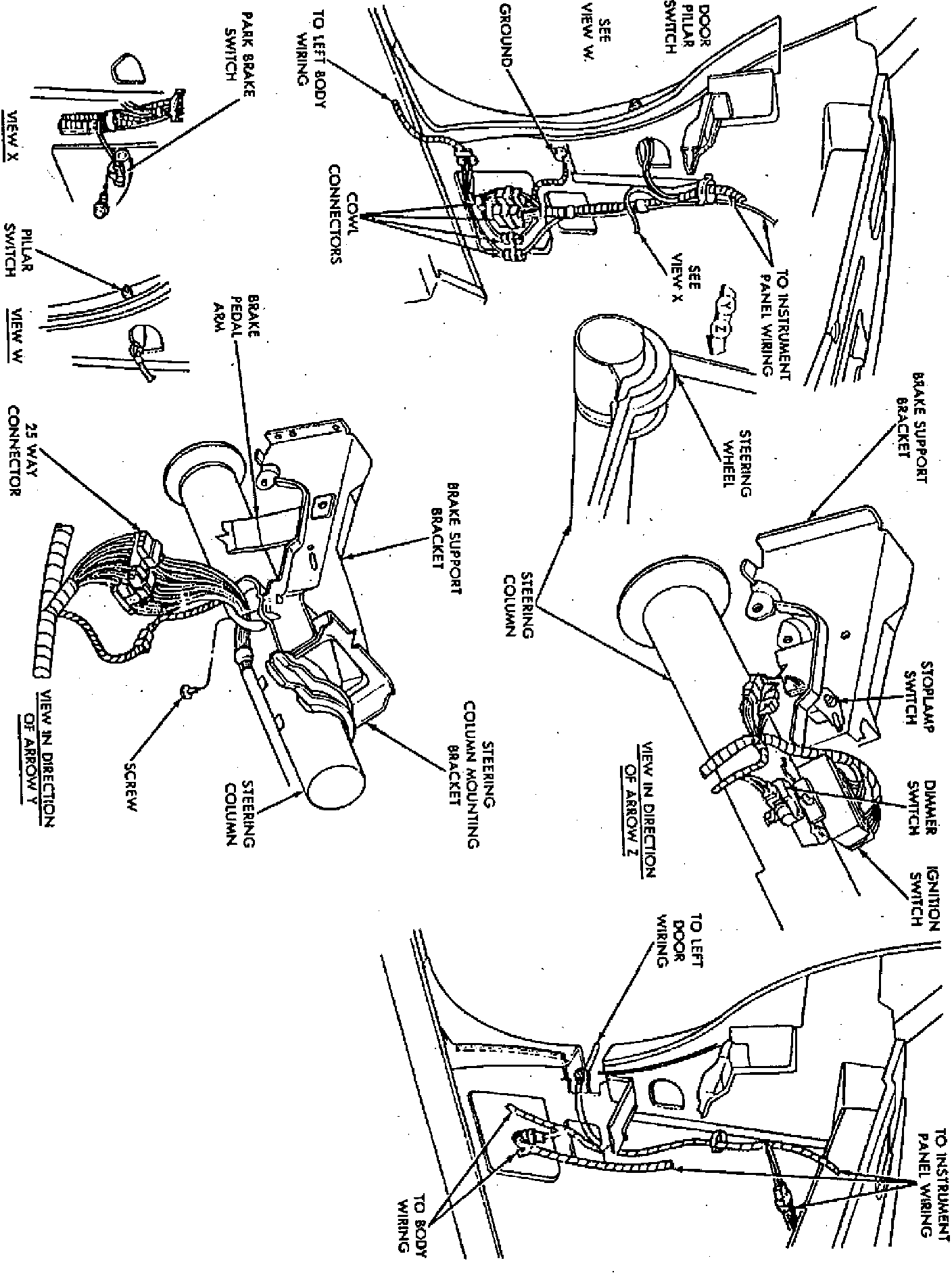

Cowl Panel Connector Locations:




On Brake Pedal Support Bracket
