Removal

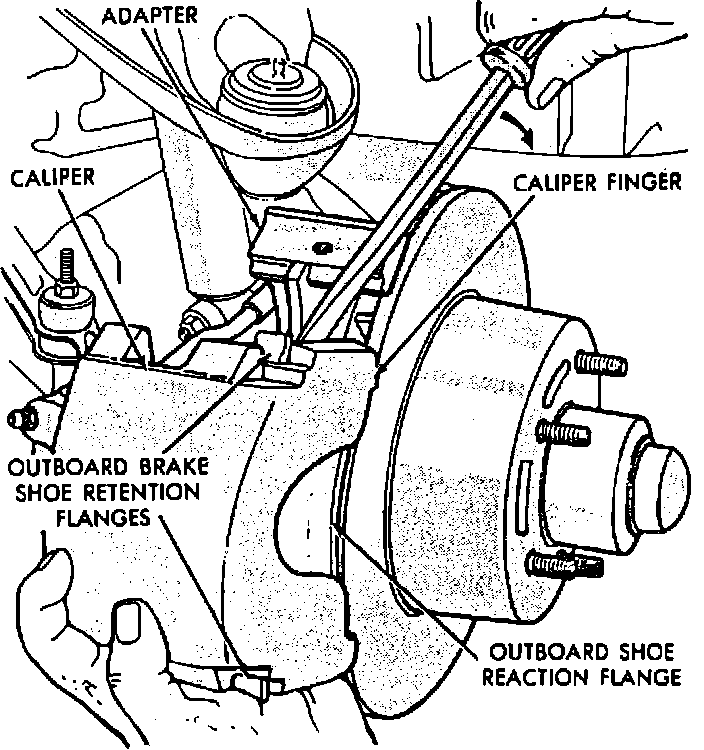

Fig. 4 Removing Outboard Pad:

Fig. 5 Replacing Inboard Pad:

1. Remove caliper assembly as described above.
2. Remove outboard pad by prying between the pad and caliper fingers. Support caliper to avoid damage to brake hose.
3. Remove inboard brake pad from adapter.
