Clearance and Design Specifications

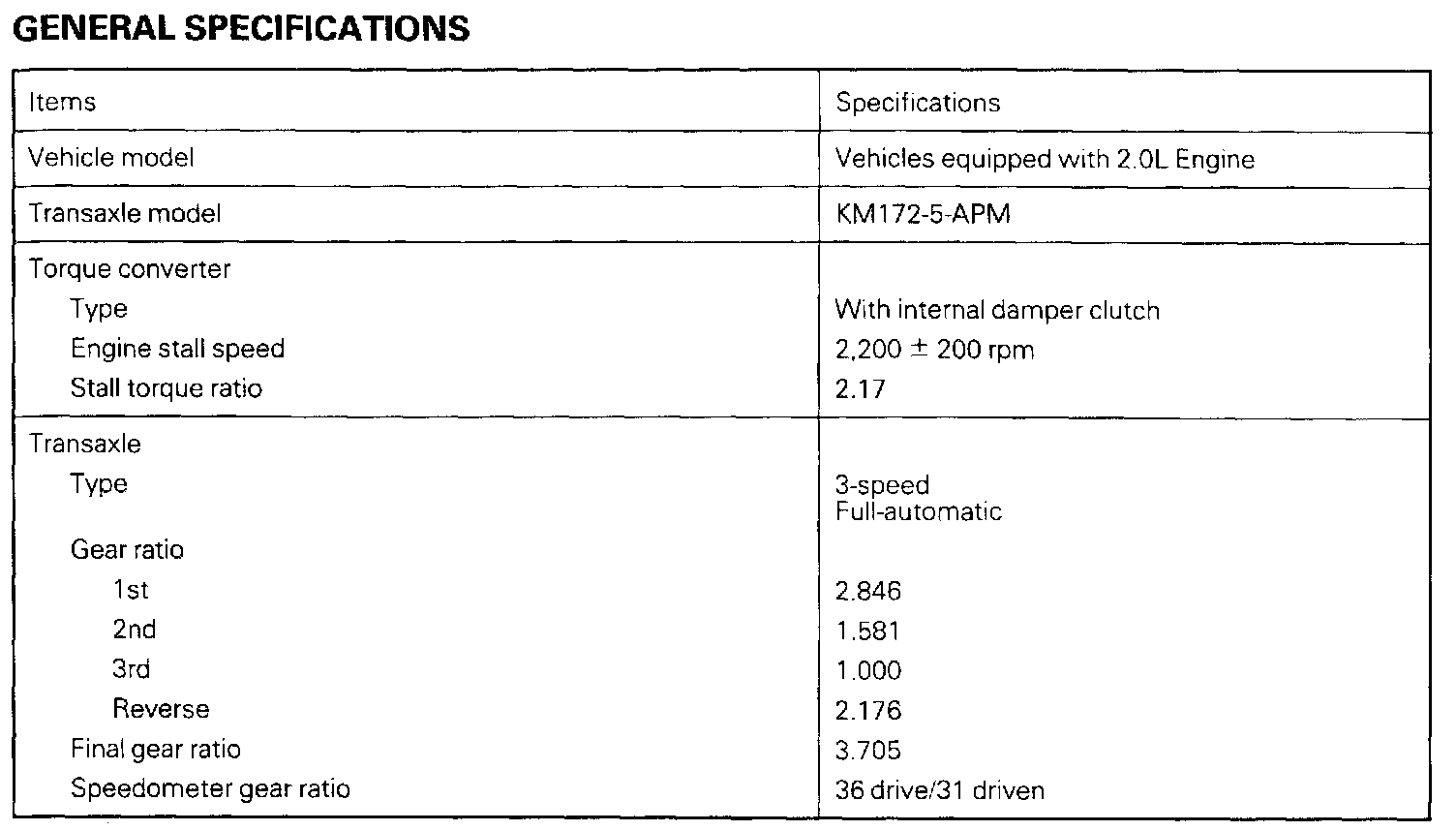

General Specifications:

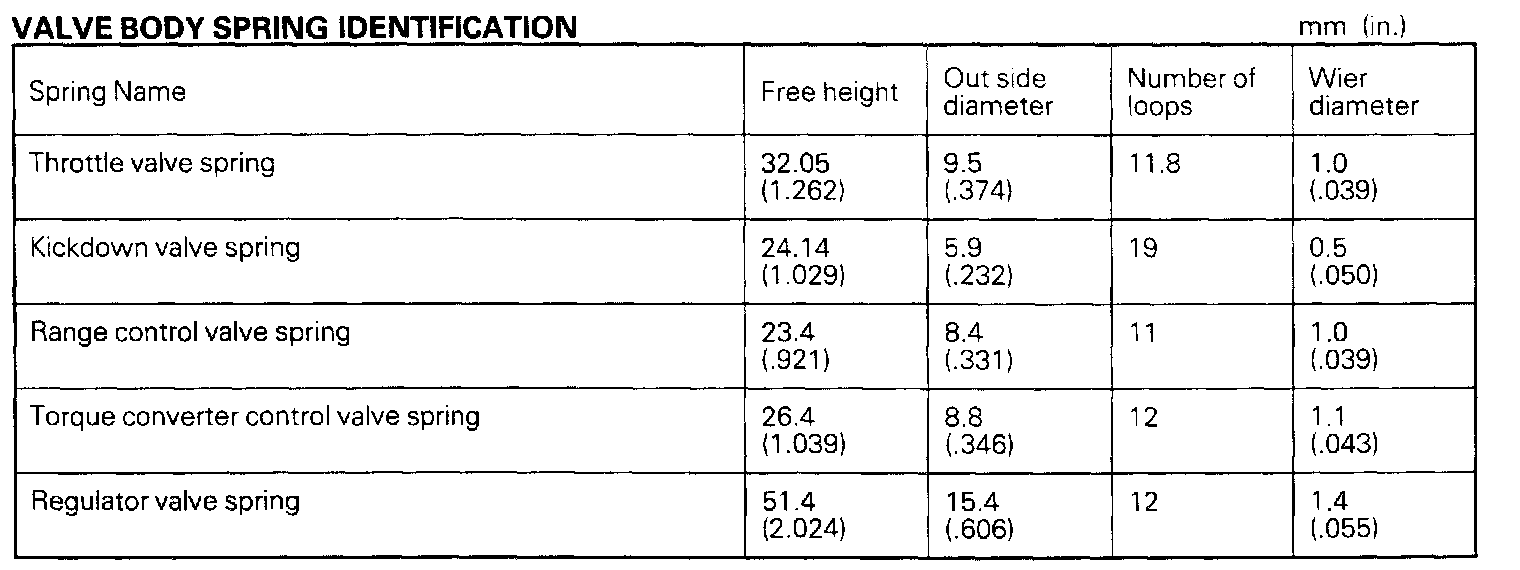

Valve Body Spring Identification Chart:

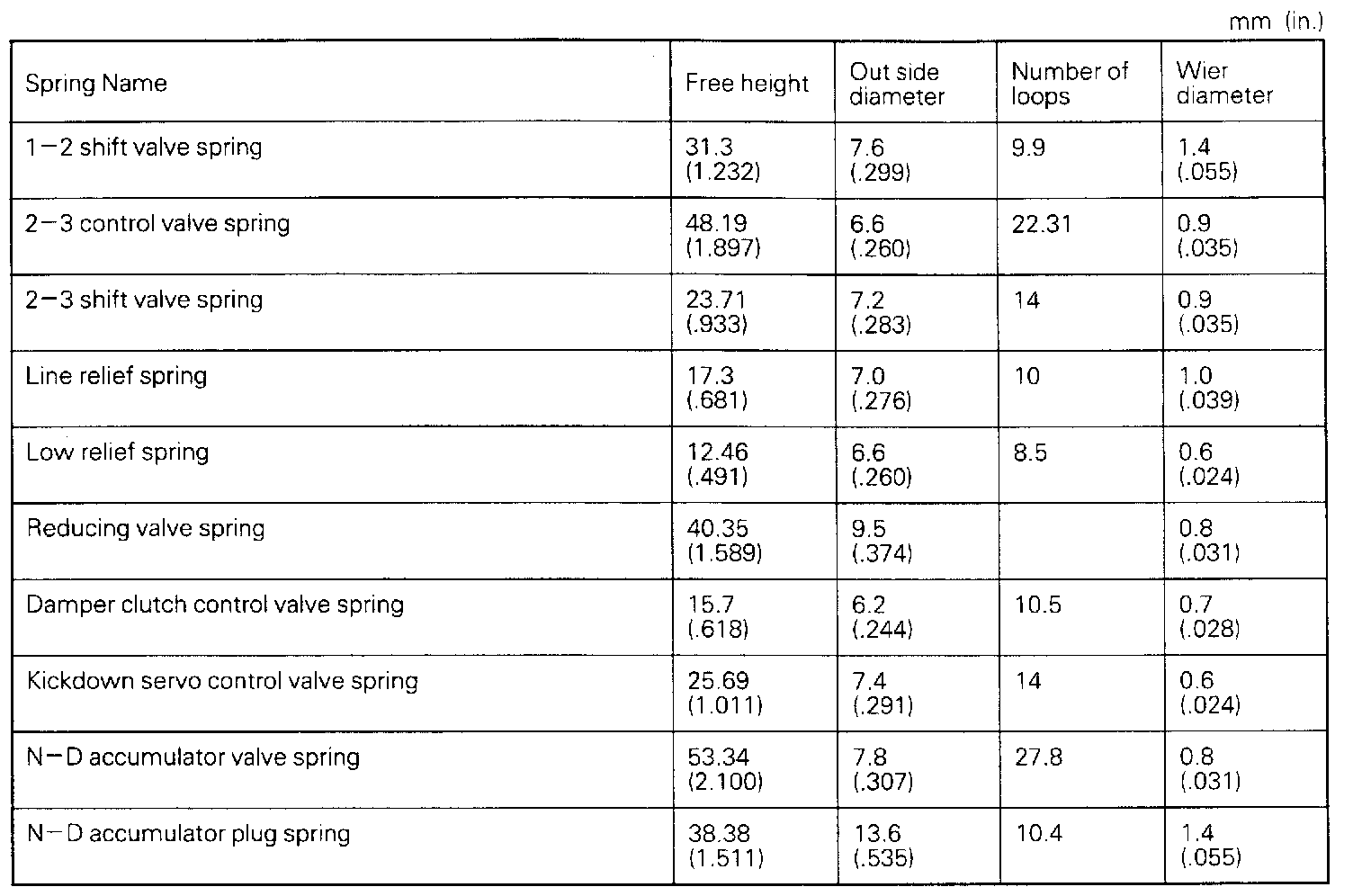

Continued:

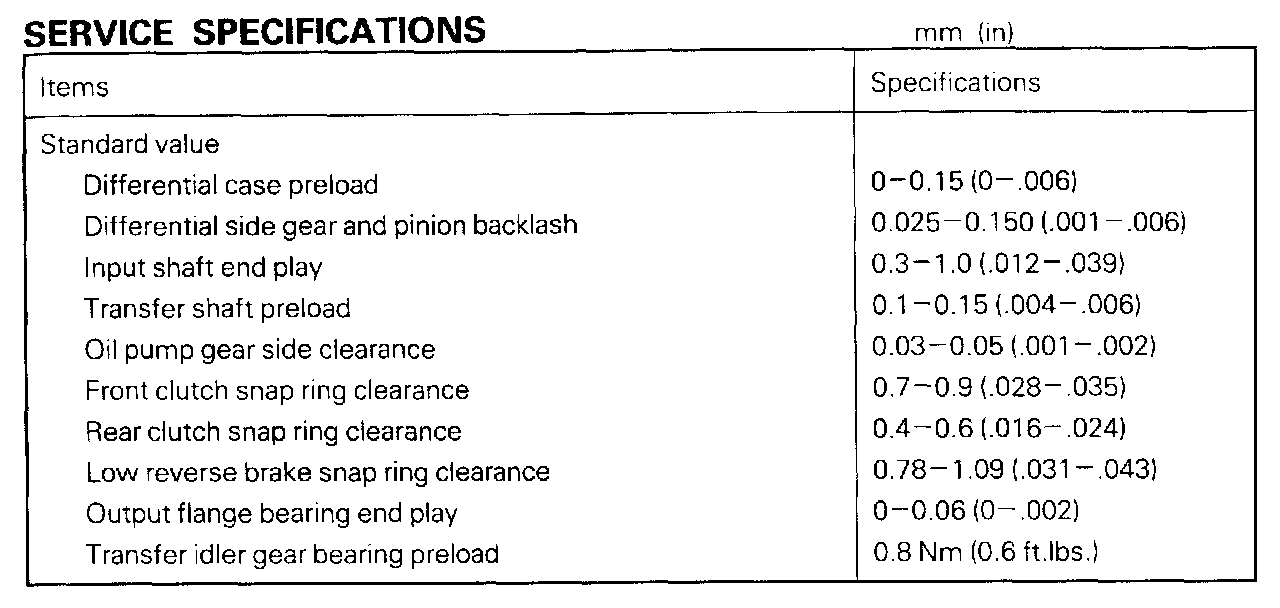

Service Specifications:

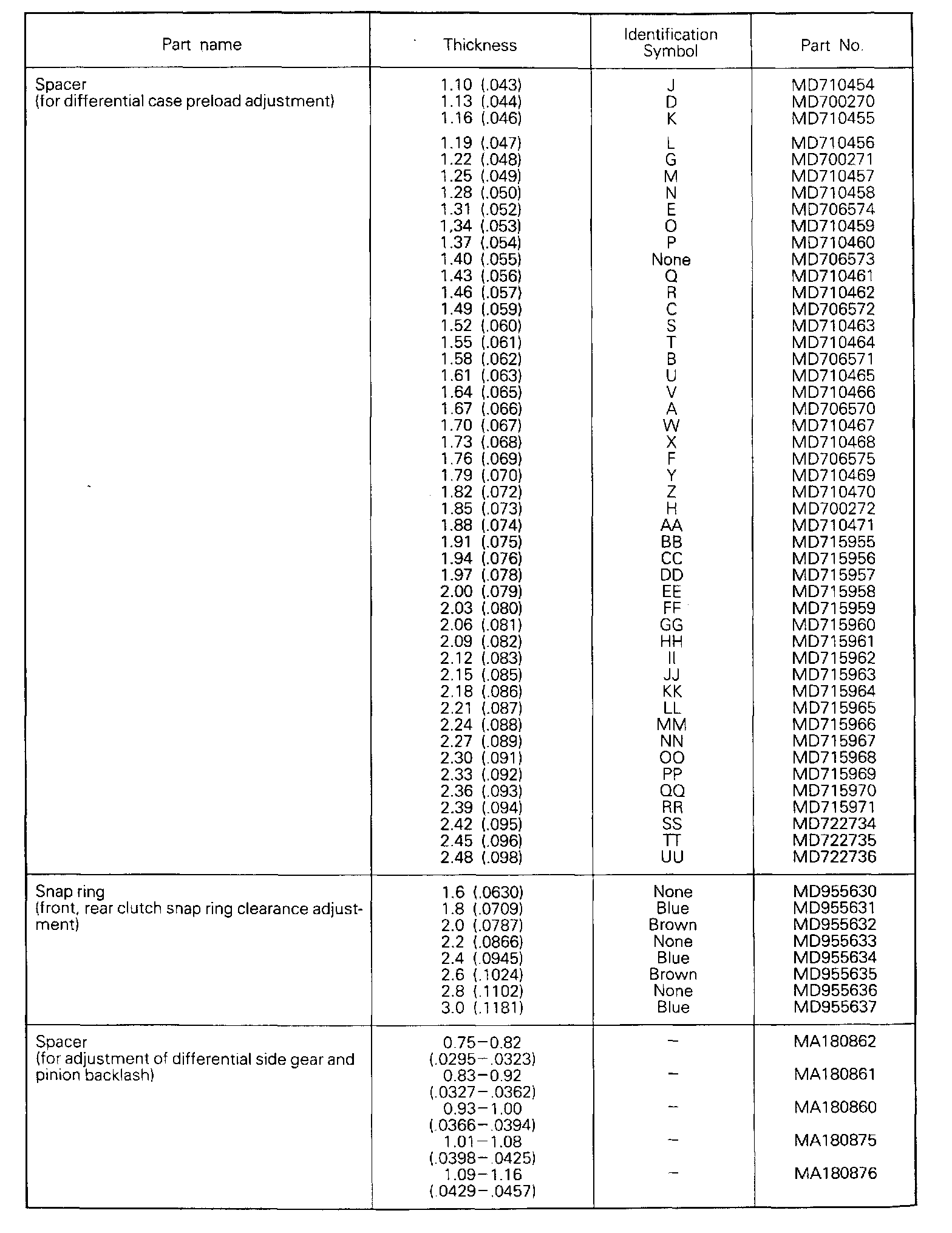

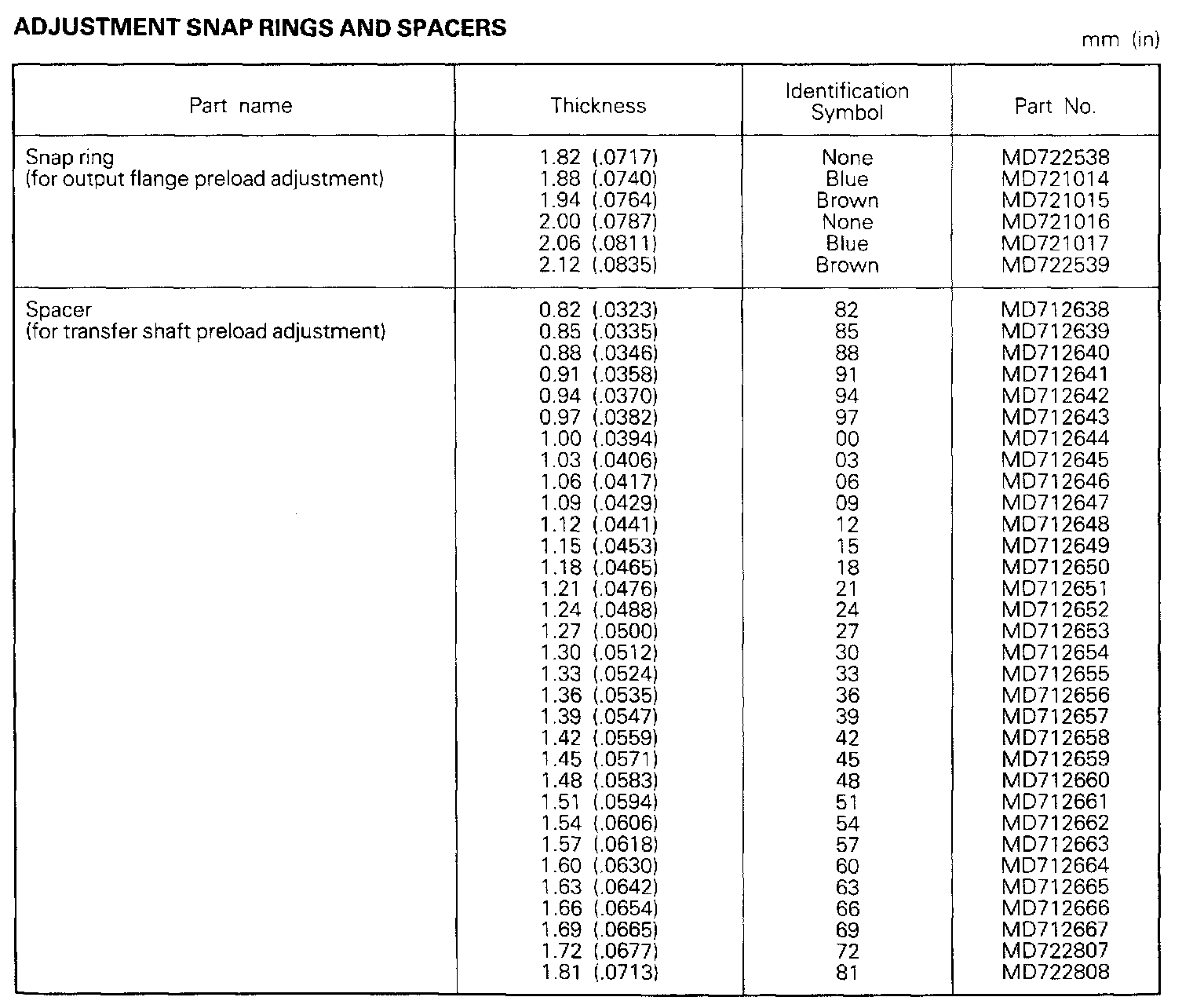

Adjustment Snap Rings And Spacers:





Continued:

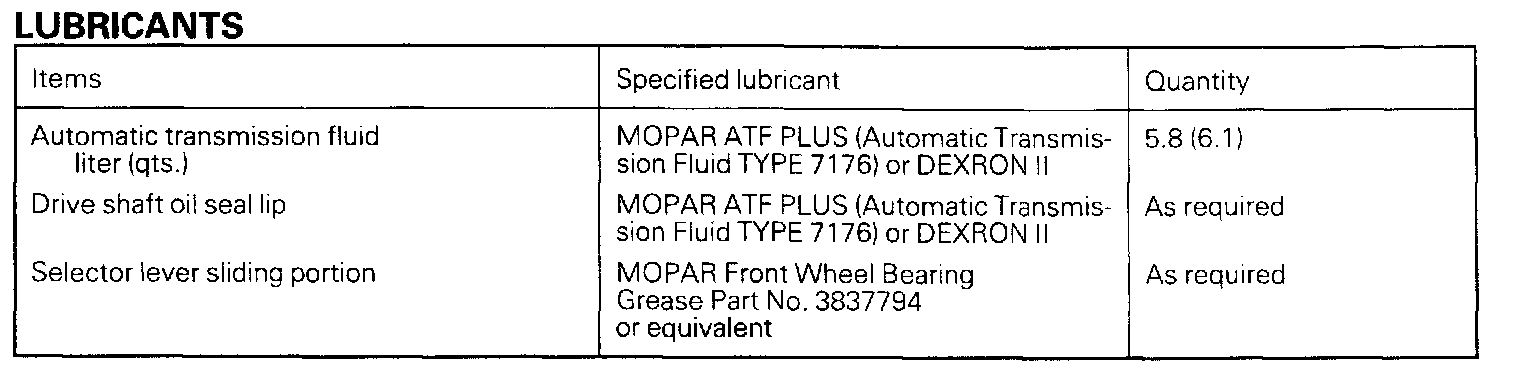

Lubricants:
