Home
>>
Plymouth
>>
1989
>>
Colt L4-1597cc 1.6L DOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Management
Engine Management

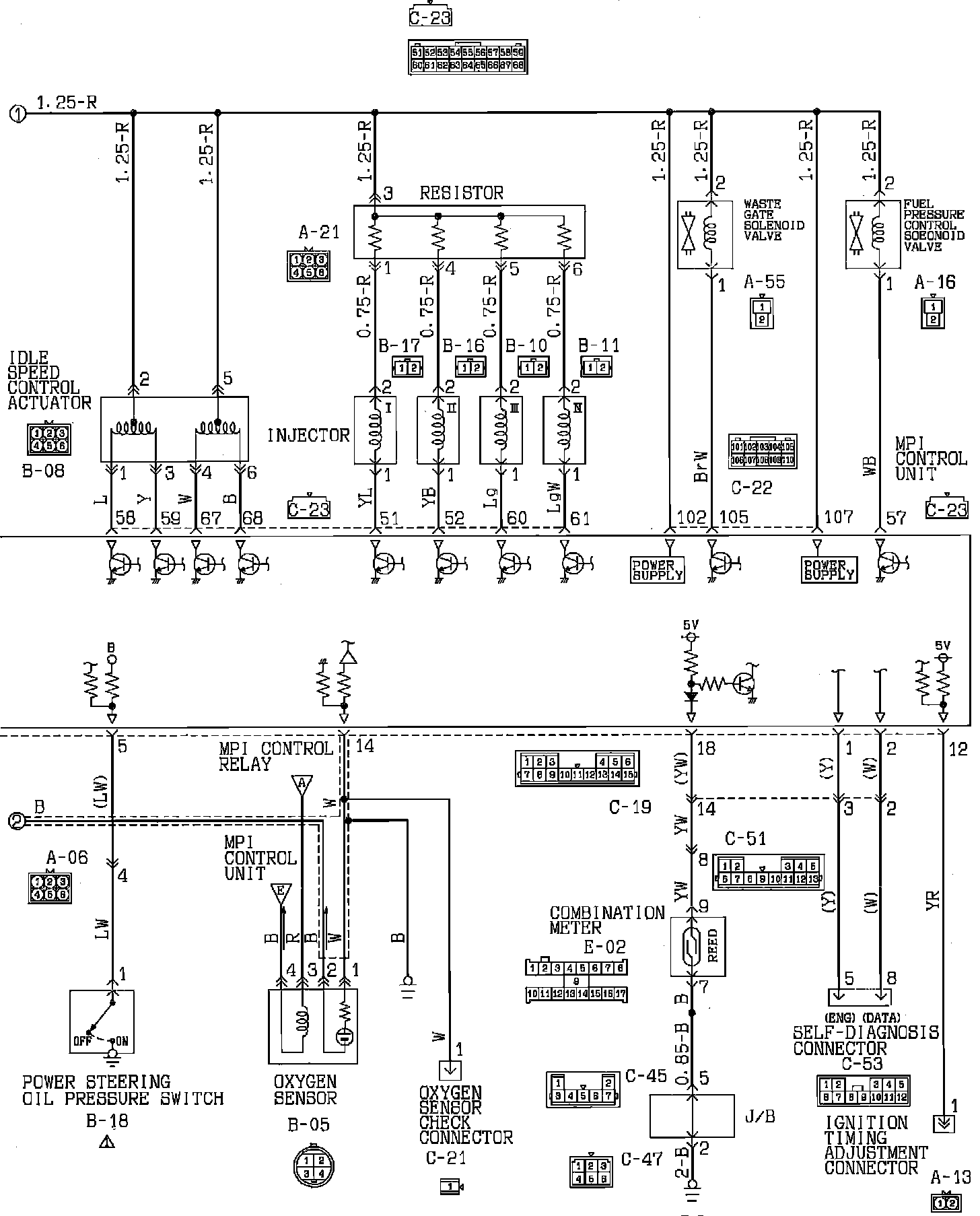

Fuel Injection System - With Turbo:

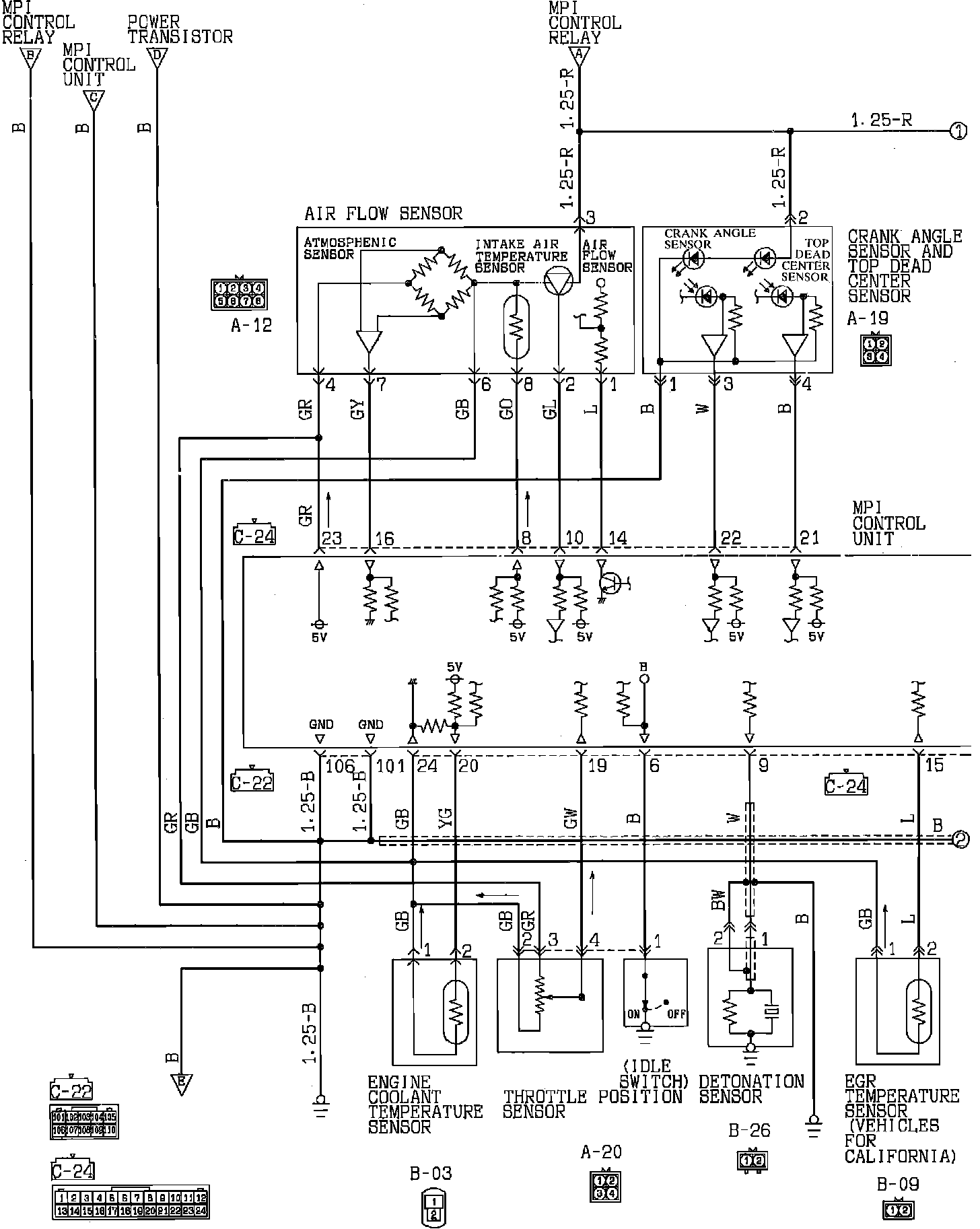

Fuel Injection System - With Turbo:

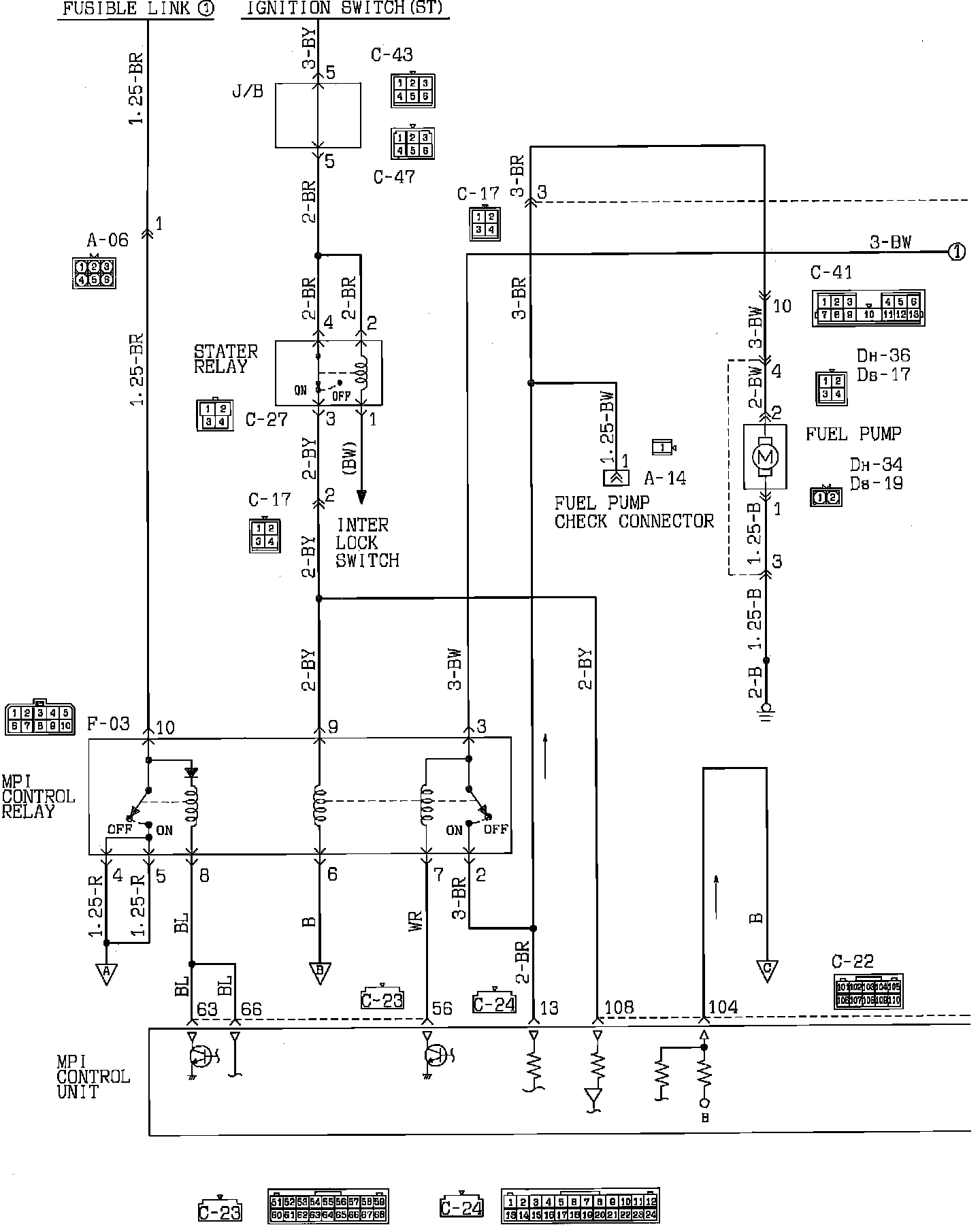

Fuel Injection System - With Turbo:

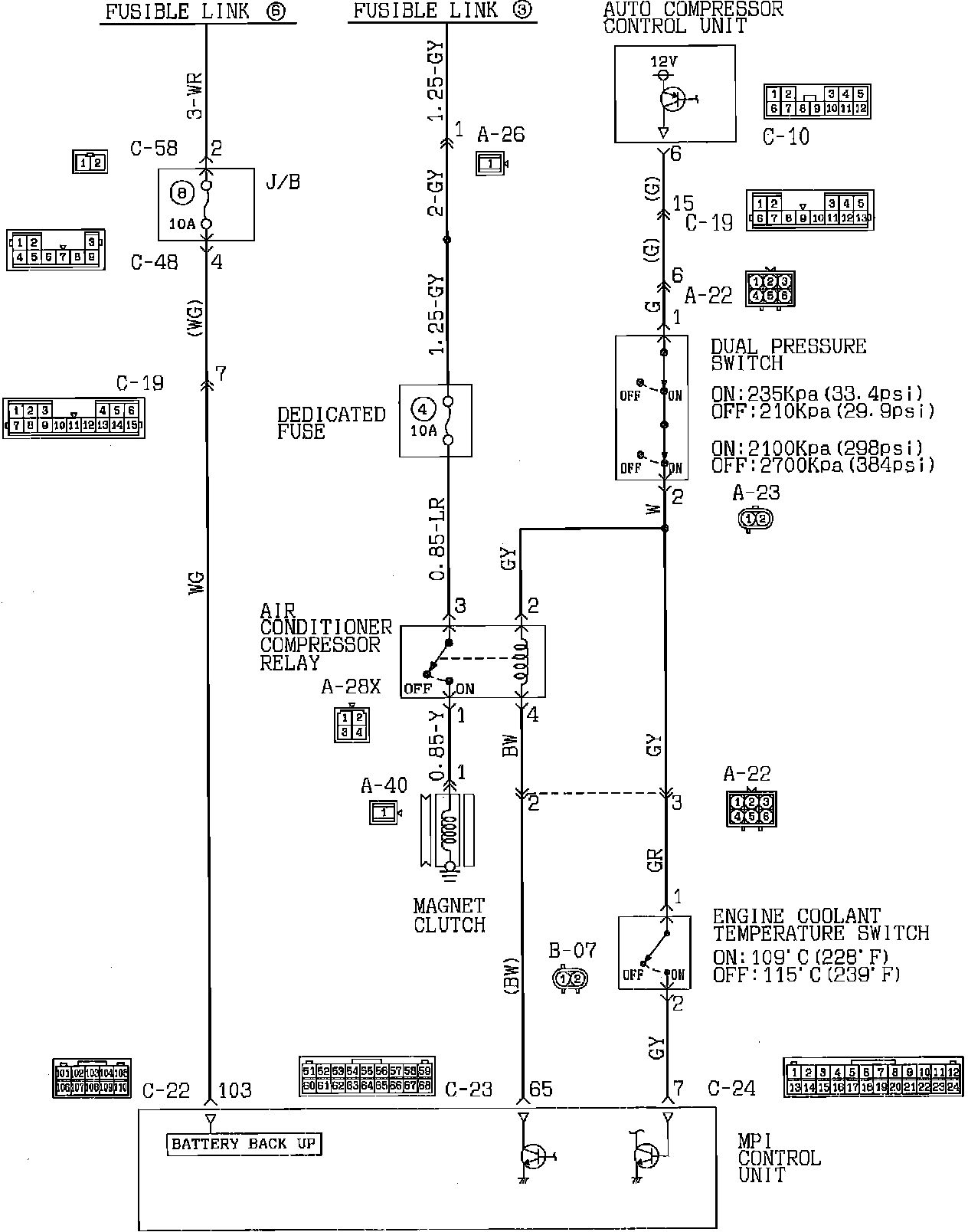

Fuel Injection System - With Turbo:
Fuel Injection System - With Turbo:
