Home >> Plymouth >> 1989 >> Acclaim V6-181 3.0L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> 11 Auto Shut Down Relay & Z1 Circuitry

11 Auto Shut Down Relay & Z1 Circuitry

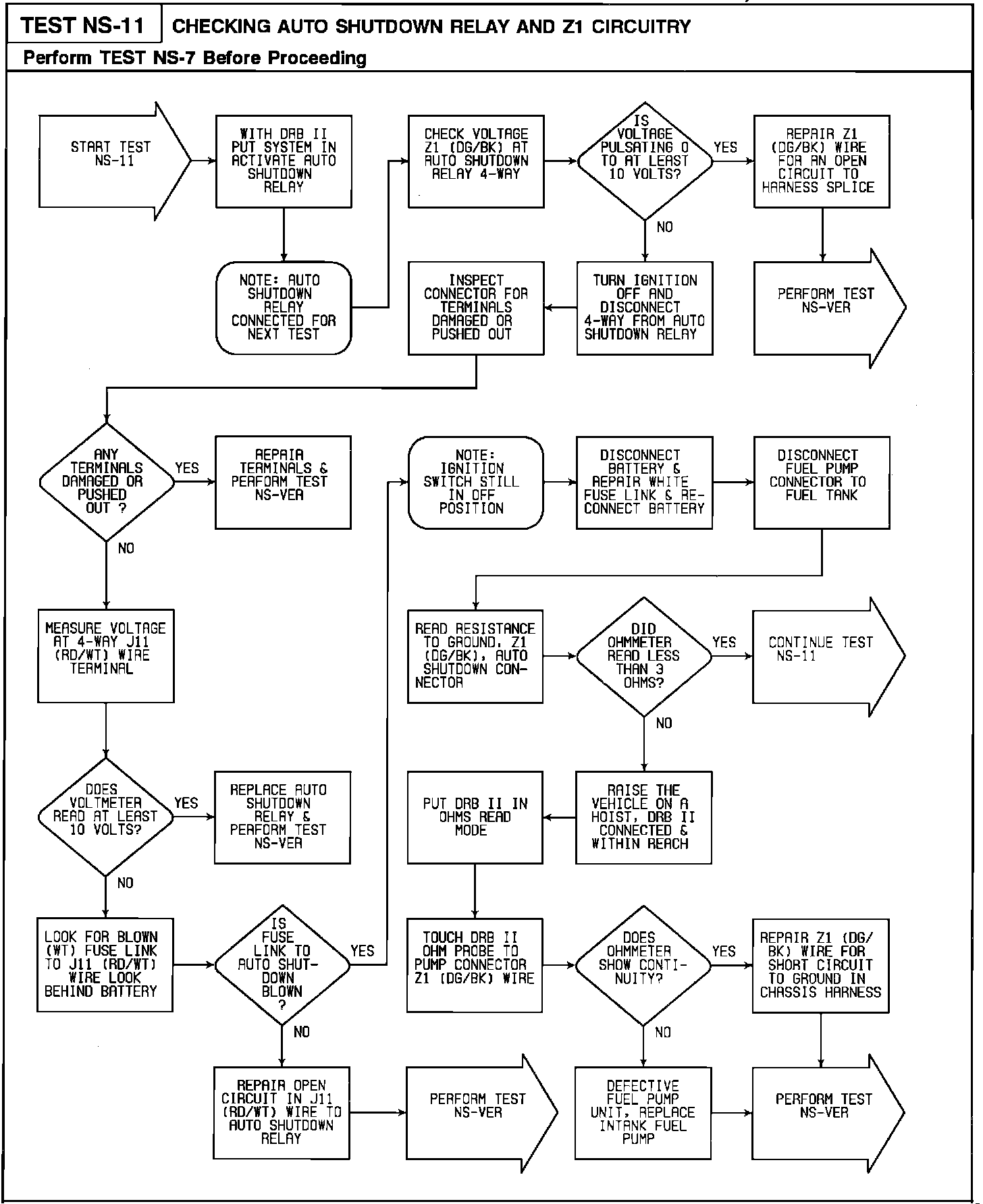

Part 1 of 2:

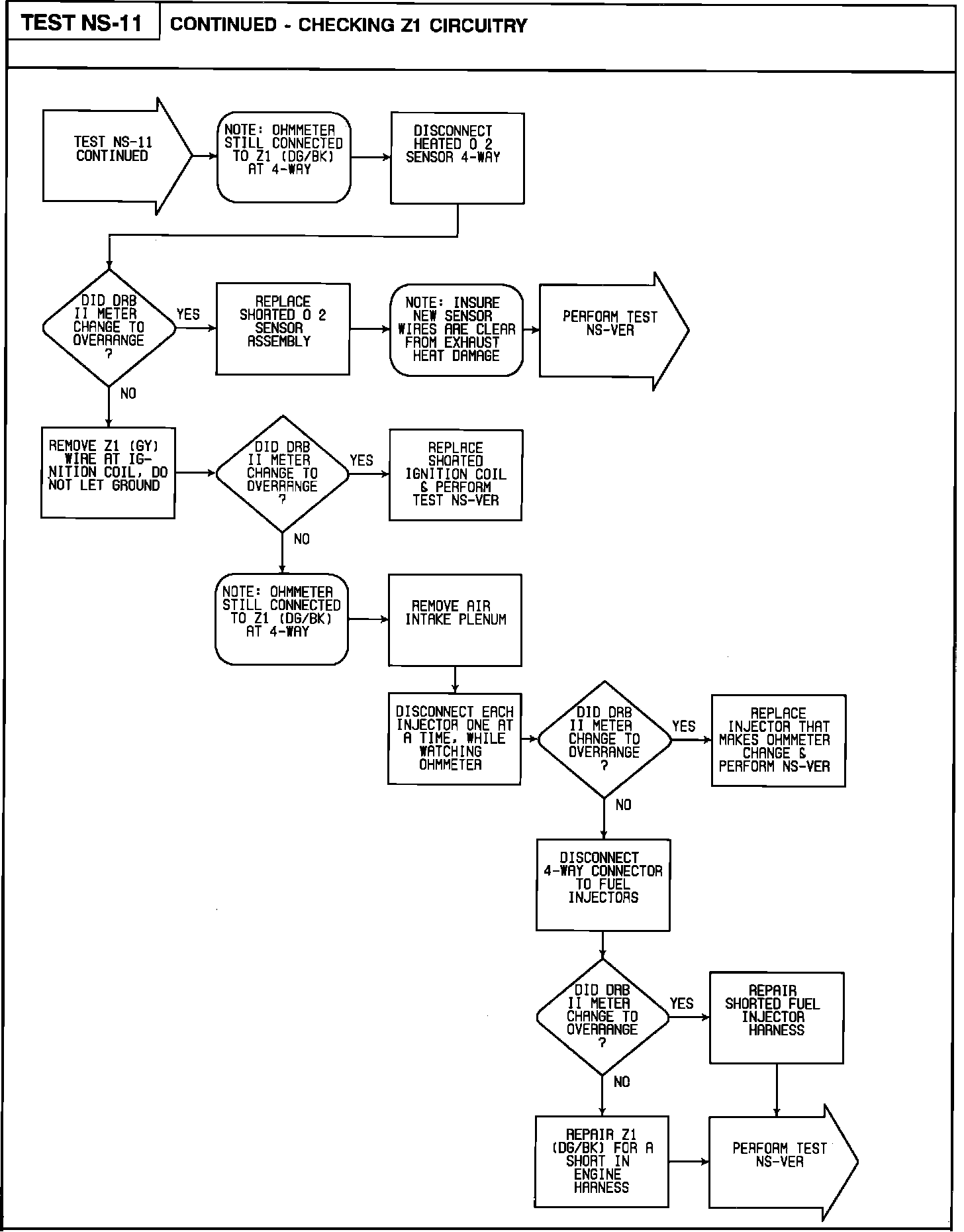

Part 2 of 2:
