Plymouth
>>
1989
>>
Acclaim V6-181 3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>

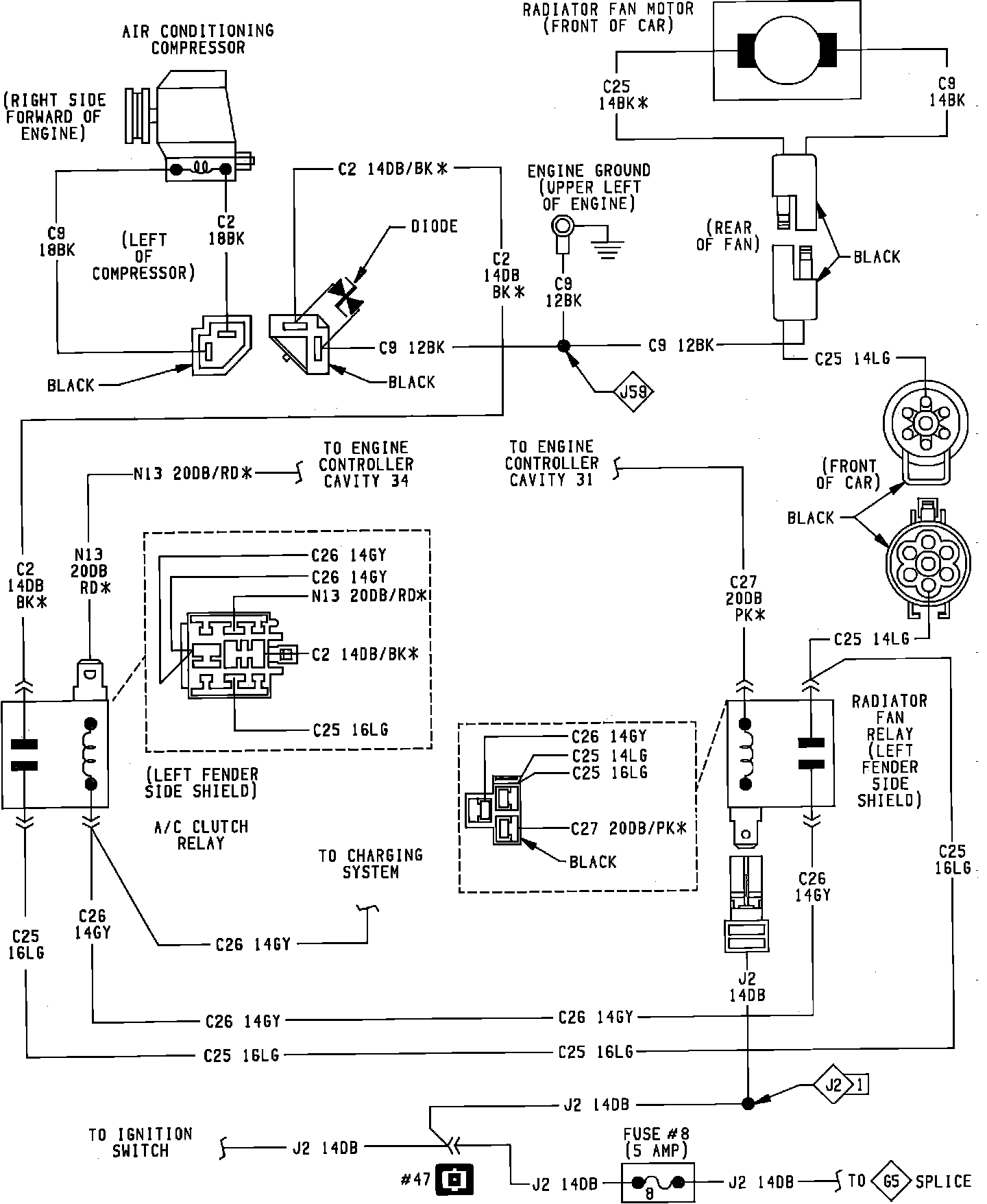

Radiator Fan and Compressor Circuits
Radiator Fan and Compressor Circuits
Cooling Fan:
