Home >> Plymouth >> 1989 >> Acclaim L4-153 2.5L SOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SP) Tests >> SP-4A Testing Brake Switch Circuit

SP-4A Testing Brake Switch Circuit

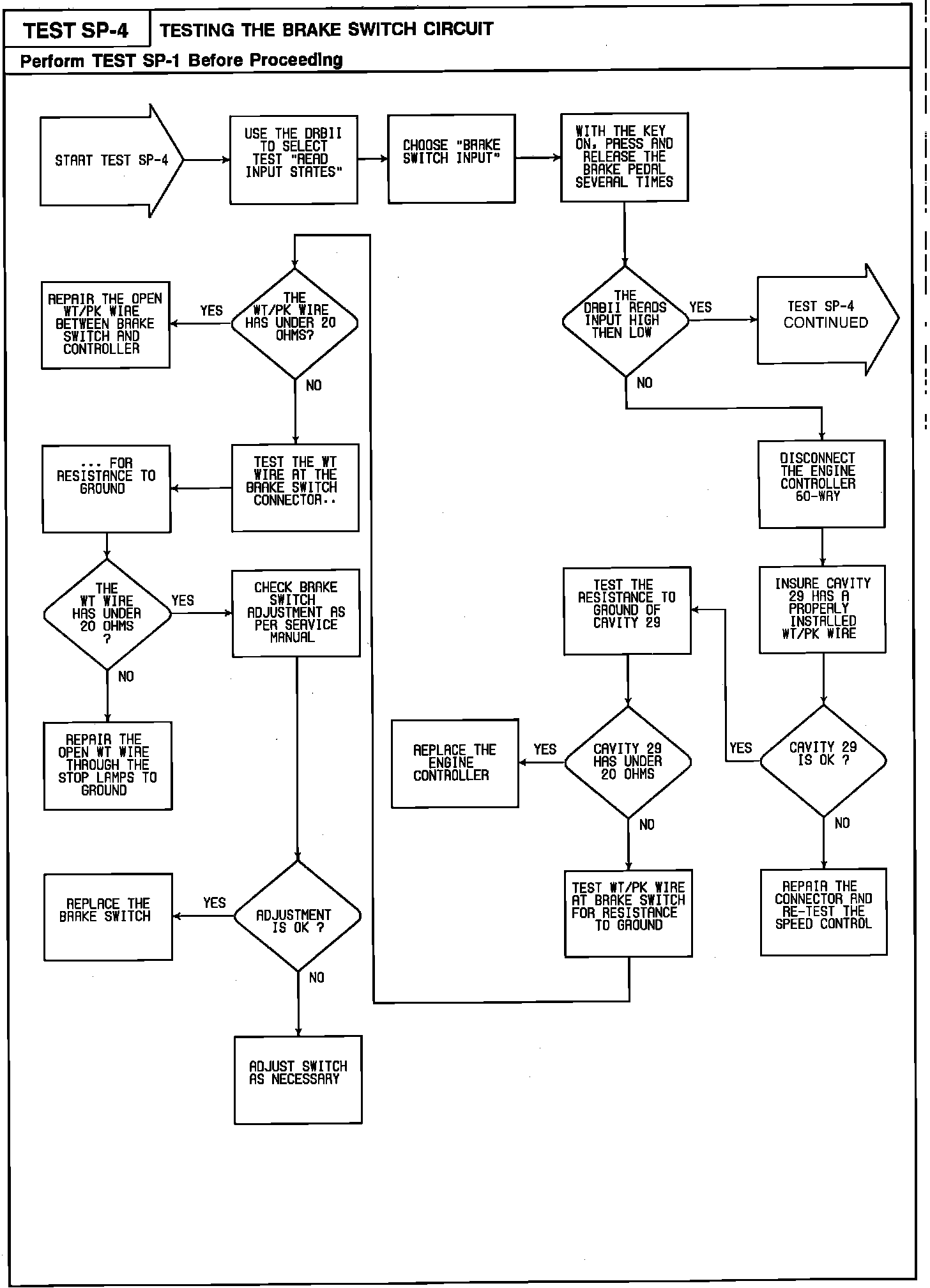

Part 1 of 4:

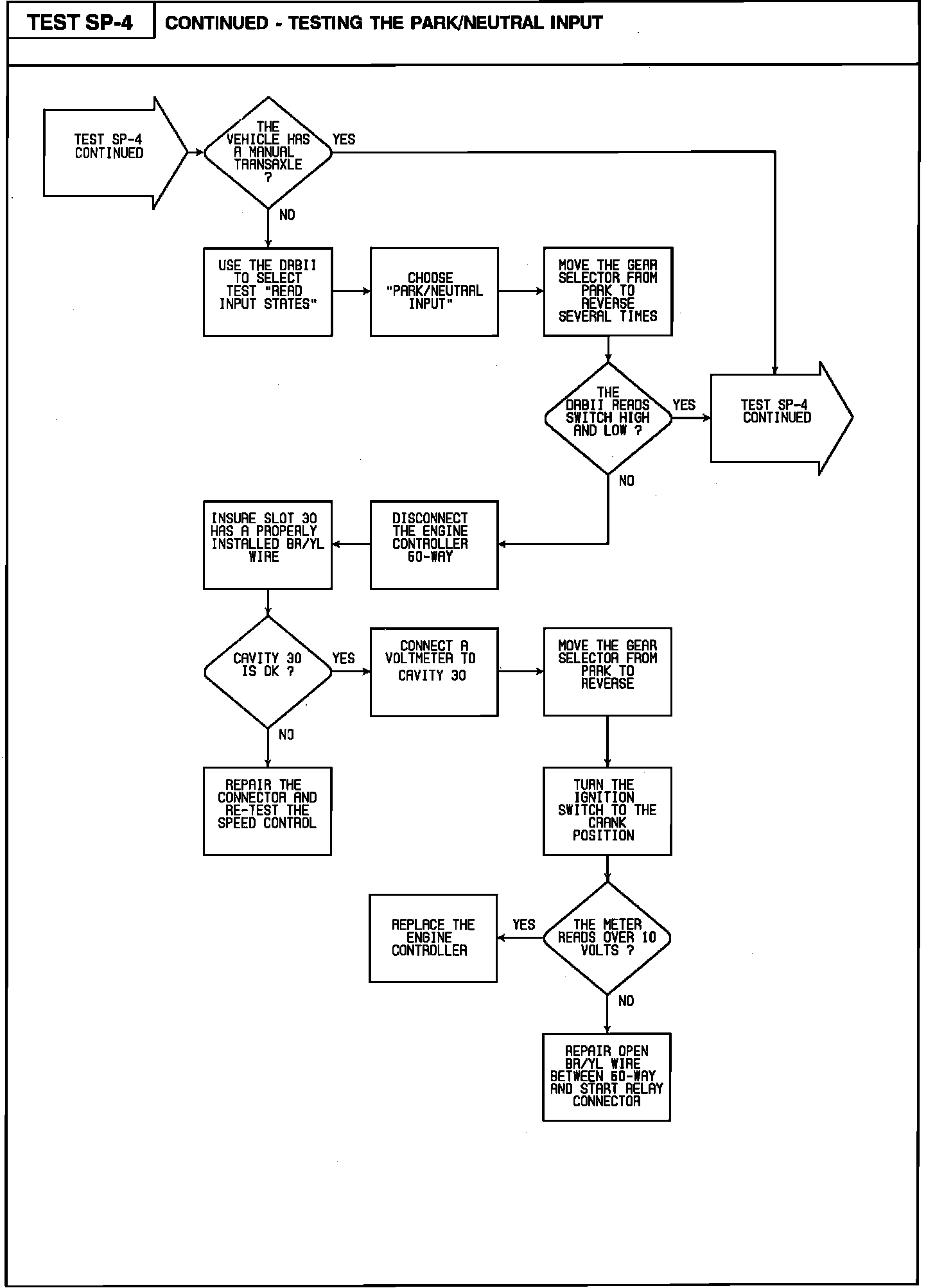

Part 2 of 4:

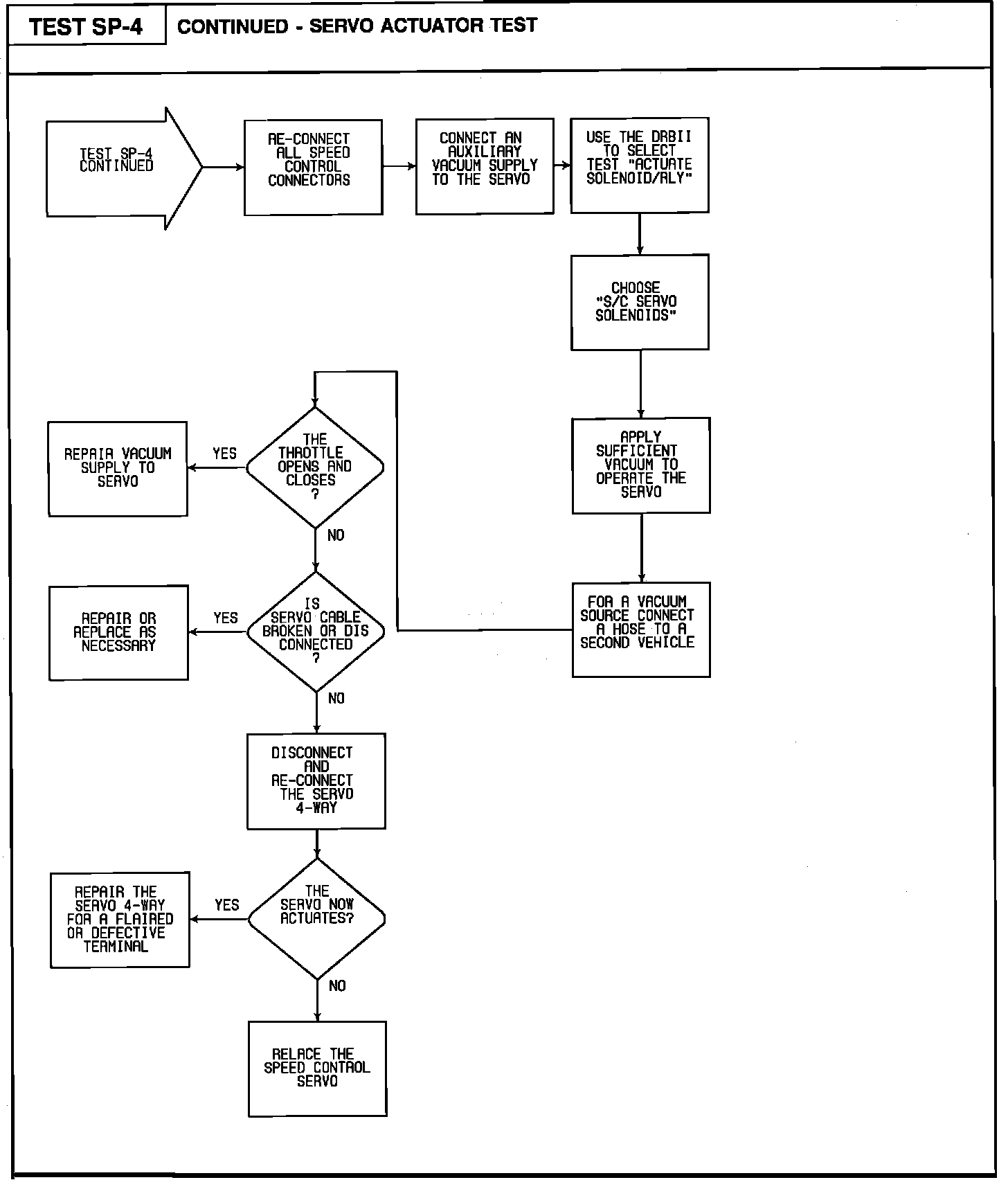

Part 3 of 4:

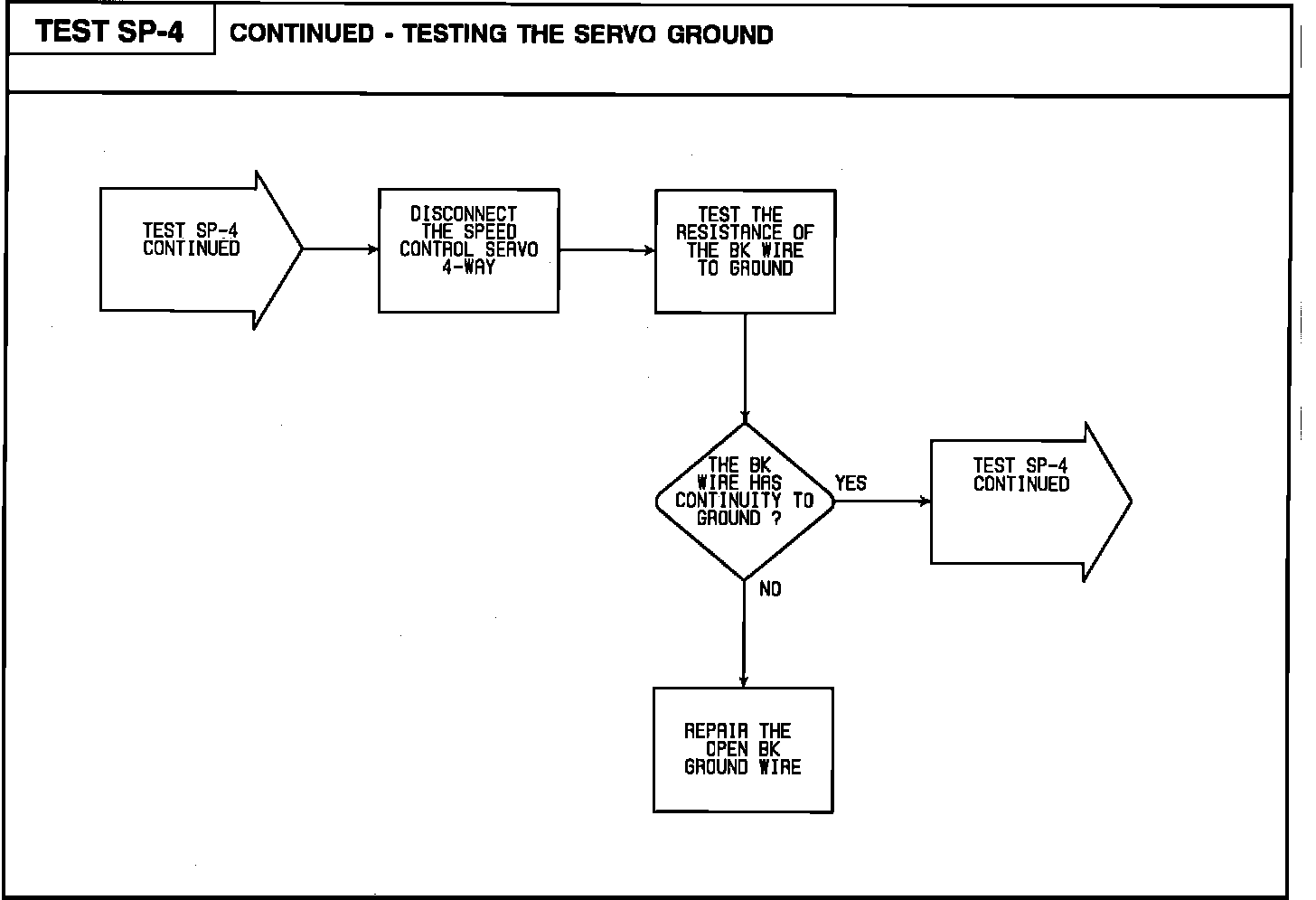

Part 4 of 4:
