Sundance L4-135 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Speed Control (SC) Tests
>>
SC-2G Power Supply to Speed Control Servo
SC-2G Power Supply to Speed Control Servo

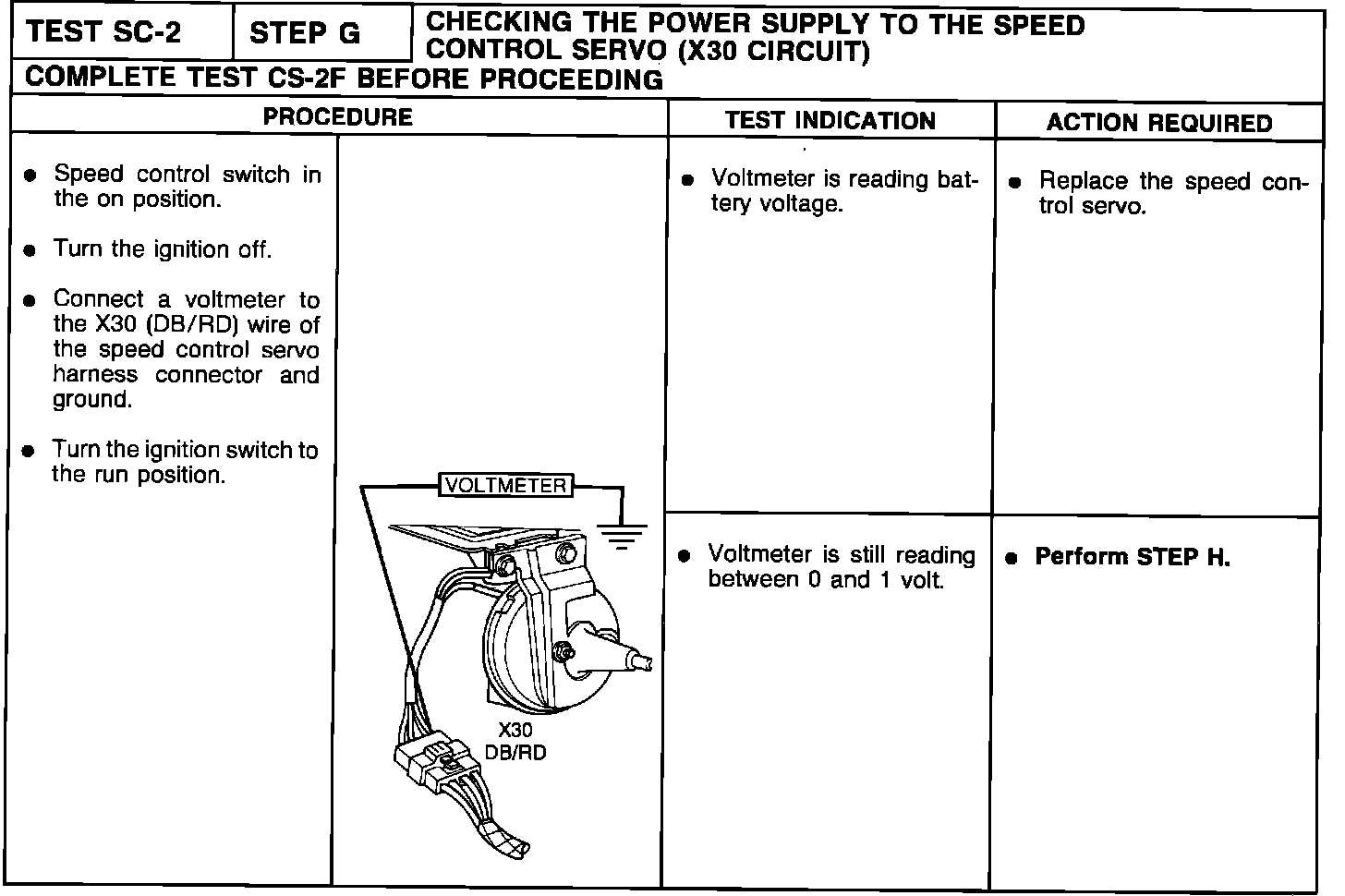

Test 2-Step G, Power Supply To The Speed Control Servo:
