Outside Rear View Mirror

1. Lower glass to full down position.
2. Remove door trim panel and plastic air shield.
3. Remove arm rest bracket on models with premium styled arm rests.

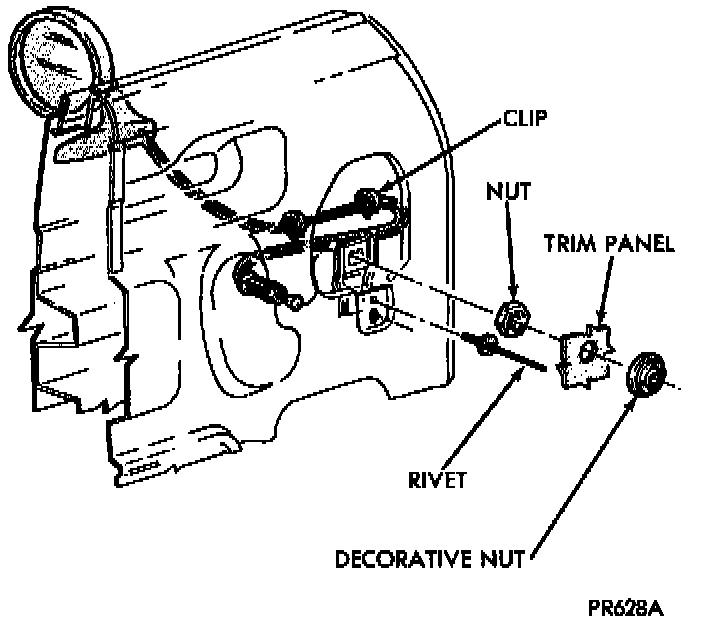

Outside Mirror:

Left Remote Mirror:

4. On remote control mirrors, remove remote control retaining nut.
5. Remove remote control cable from retaining clips.
6. Remove plastic clip on cable from door.
7. Remove mirror retaining nuts.

Remote Control Mirror (Inner Half):

8. Remove mirror from door outer panel and reinforcement from door inner panel.
9. Reverse above procedure for installation.
