Oil Pump Sprocket - New Design
89chrysler01Models
1988 LA With 1.6L Engine Vehicles
Subject
Timing Belt Noise Reduction
Index
ENGINE
Date
February 13, 1989
No.
09-02-89
P-472 (C09-08)

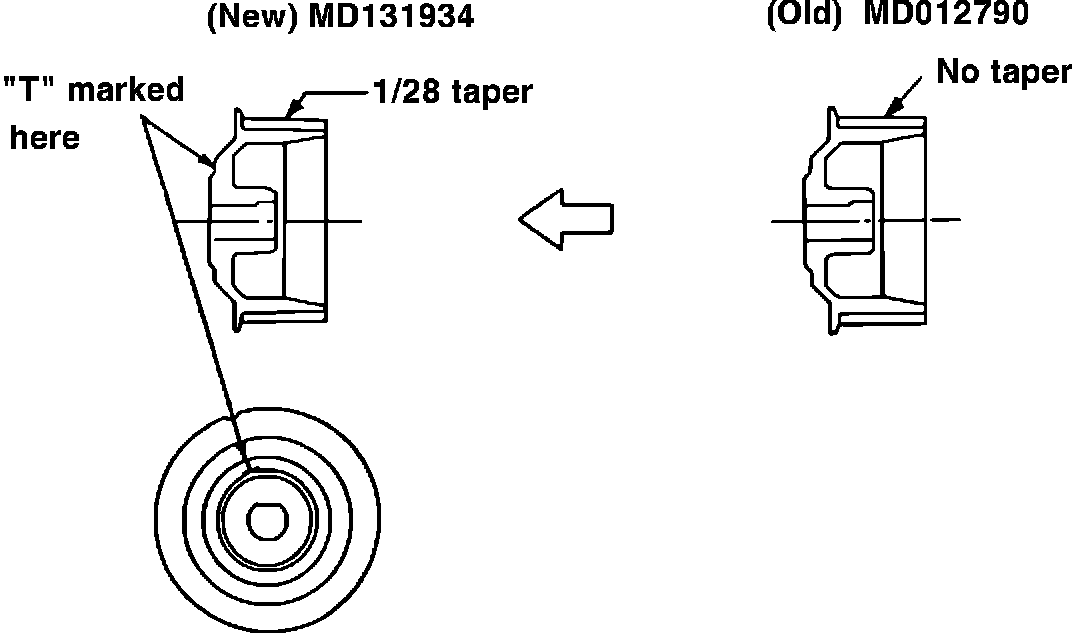

FIGURE 1:
BODY CODE LEGEND
LA - COLT
Effective in February, 1988, with Engine No. FT9425 and later, the oil pump sprocket has been changed to a tapered design to reduce timing belt noise. The new tapered design sprocket can easily be identified by the letter "T" stamped on it as indicated in Figure 1. The new sprocket is interchangeable with earlier built engines. The part number of the new sprocket is MD131934.
POLICY: Information Only
