Fuel Return Line: Testing and Inspection

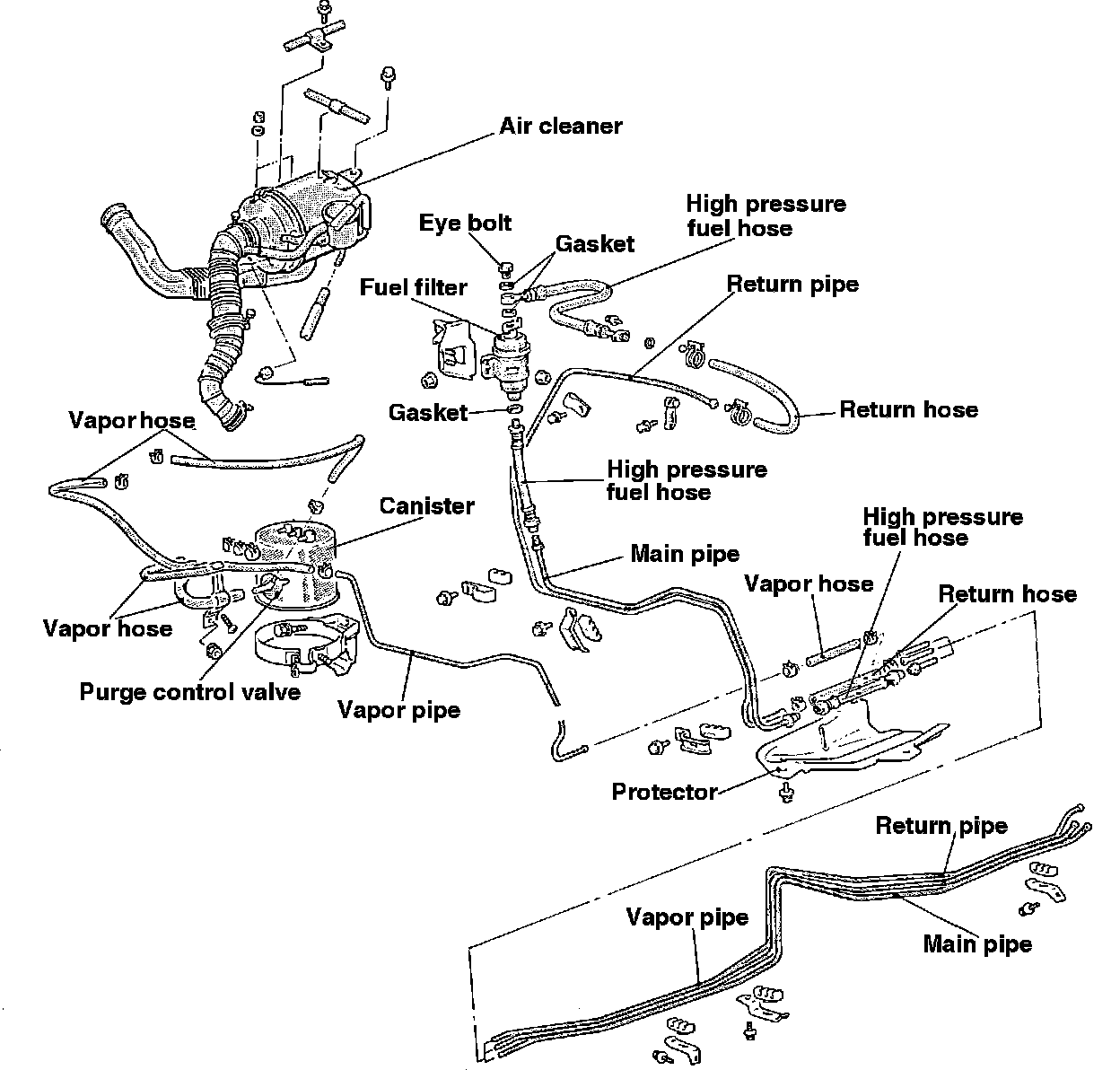

Fuel And Vapor Lines:

INSPECTION:
1. Check the hoses and pipes for cracking, bending, deformation or restrictions.
2. Check the canister for restrictions.


3. Check the fuel filter for restrictions and damage.

Fuel Injection Mixer:

4. Check the fuel injection mixer and all of its attachment points for any sign of leakage.
