Plymouth
>>
1988
>>
Caravelle L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

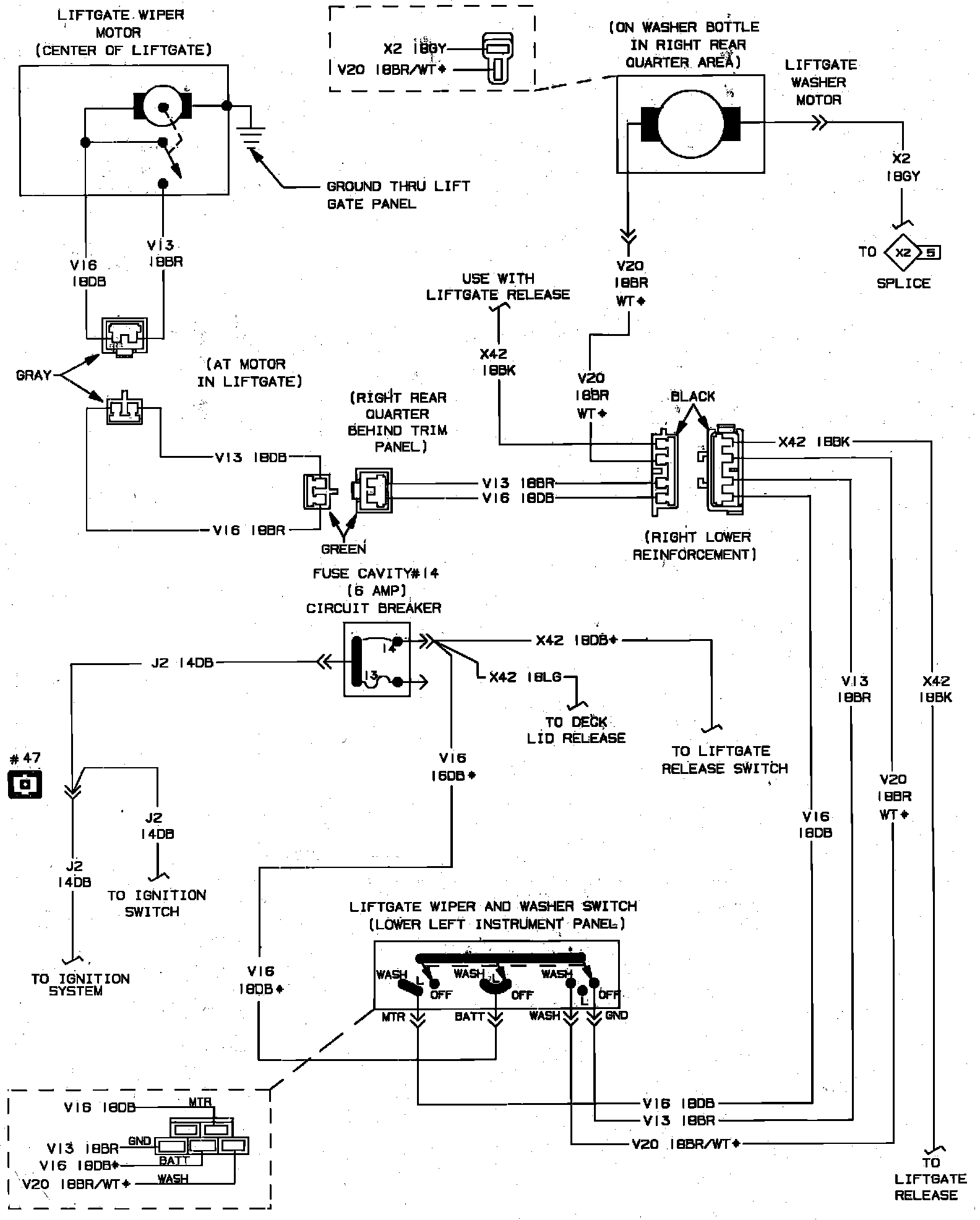

Liftgate Wiper & Washer System Wiring Circuit:
