Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1988
>>
Caravelle L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
Trunk / Liftgate

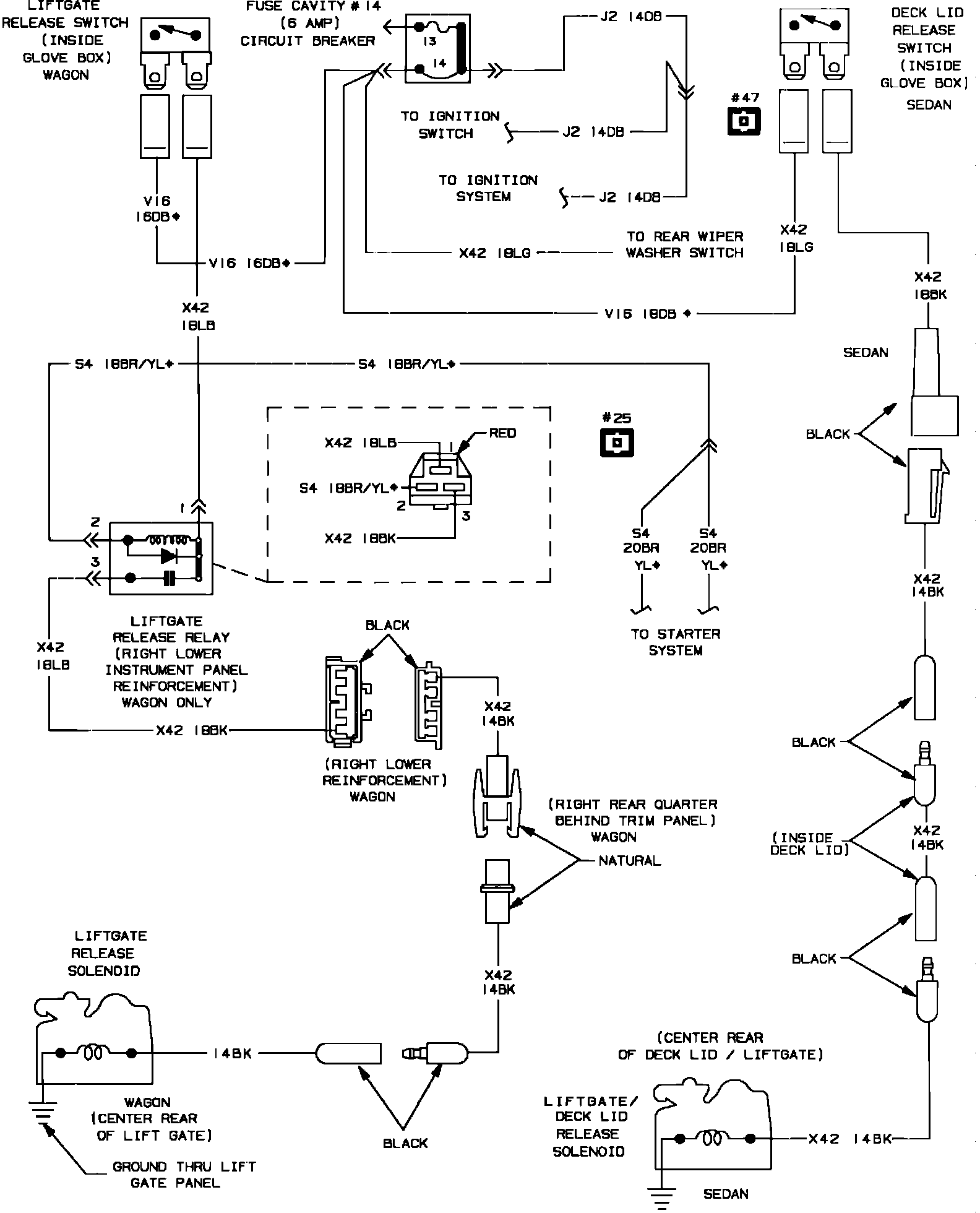

Deck Lid & Liftgate Release Wiring Circuit:
