Plymouth
>>
1987
>>
Colt Vista 2WD L4-1997cc 2.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Drum Brake System
>>
System Diagram
System Diagram

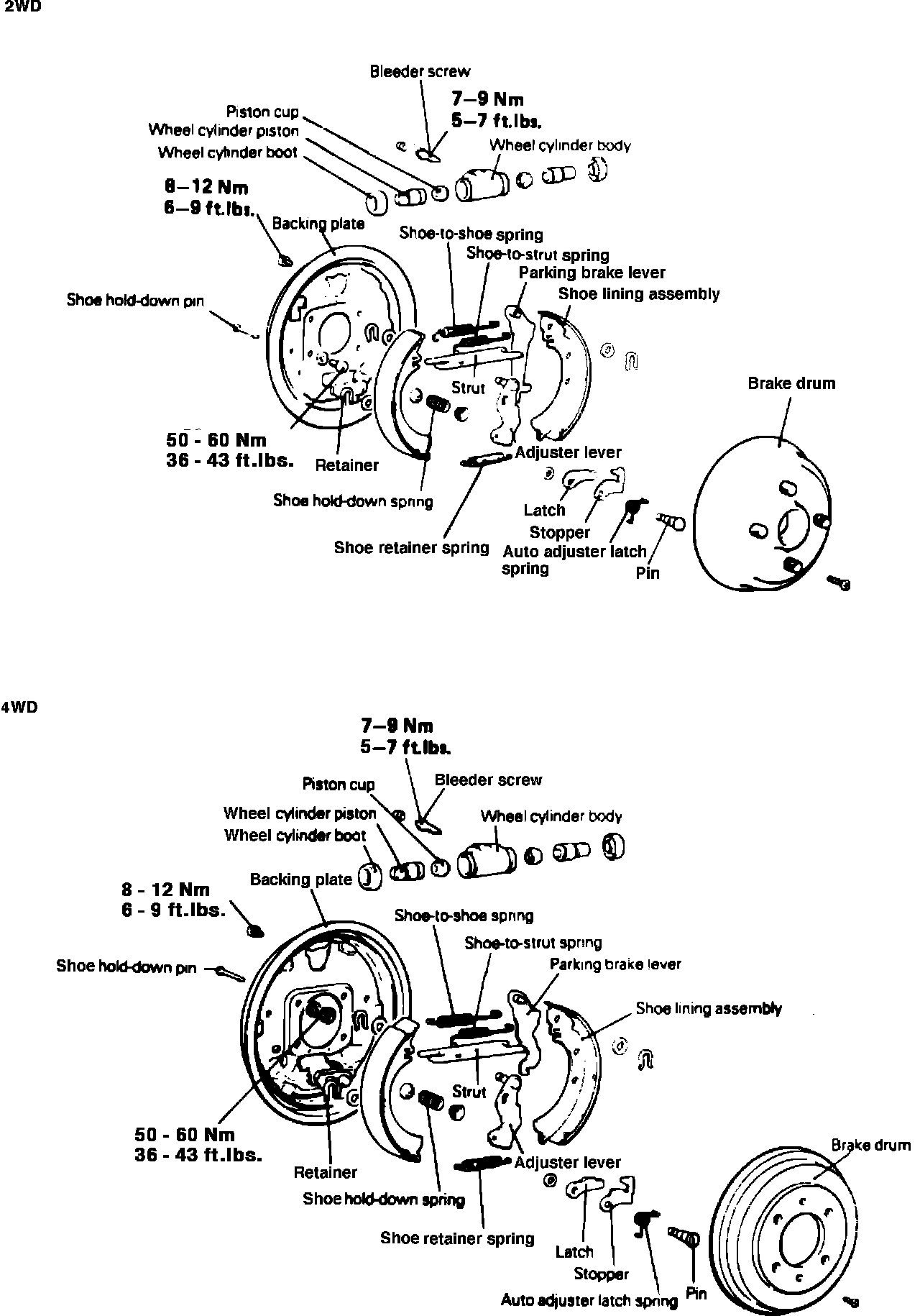

Fig. 2 Rear Drum Brake Assembly Exploded View - Colt Vista:
