Specifications
>>
Mechanical Specifications
>>
Drive Axles, Bearings and Joints
Drive Axles, Bearings and Joints

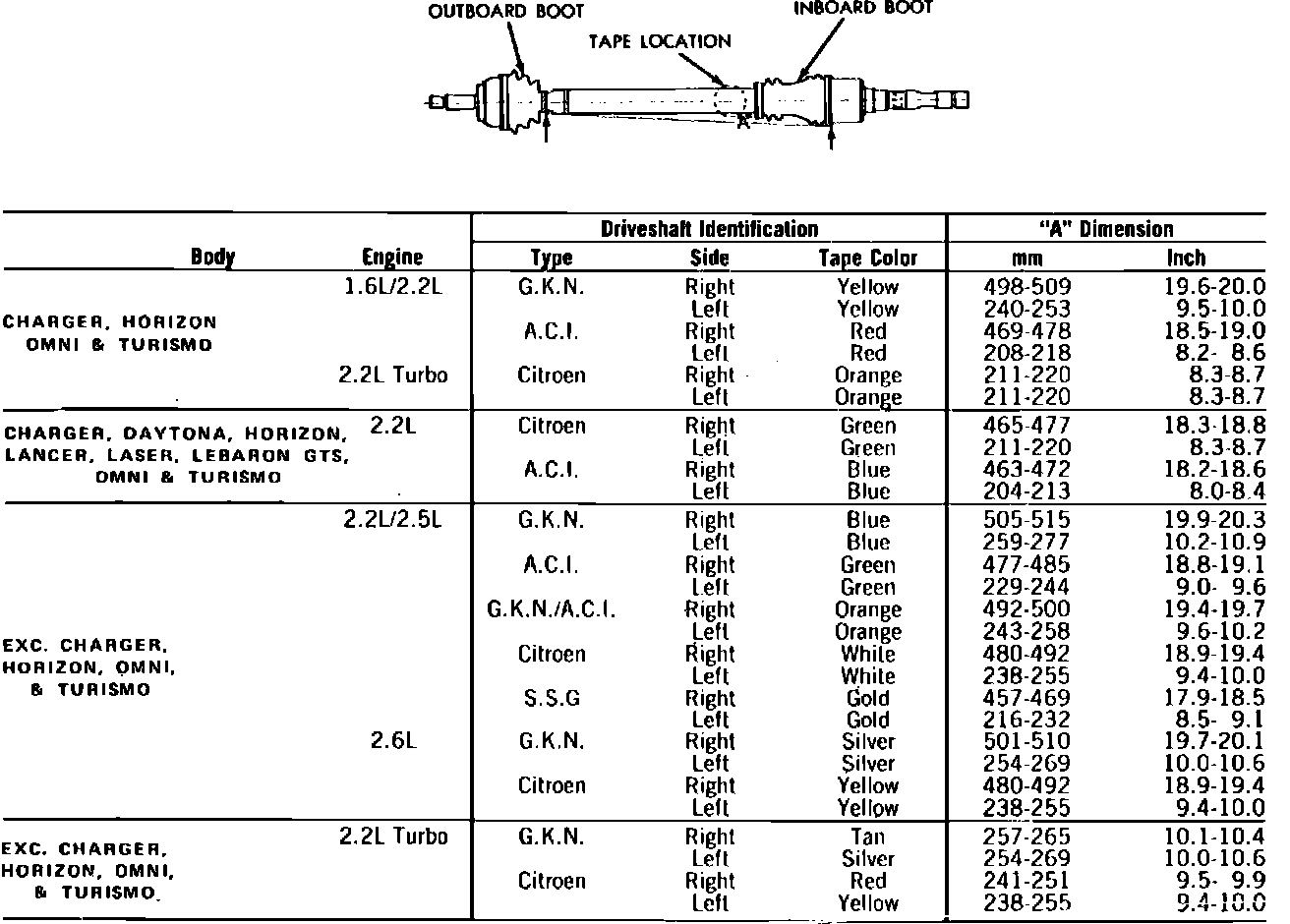

Fig. 13 Driveshaft length specifications. 1986:
