Plymouth
>>
1986
>>
Horizon L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Diagrams
>>
Connector Views
Connector Views

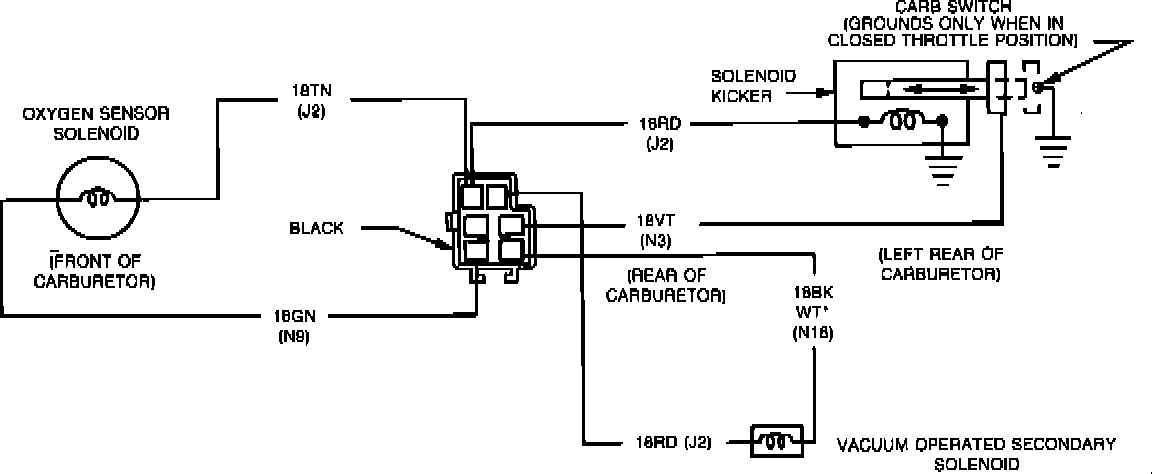

6-Way Connector 2.2L Engine:
