Colt L4-1597cc 1.6L SOHC Turbo
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

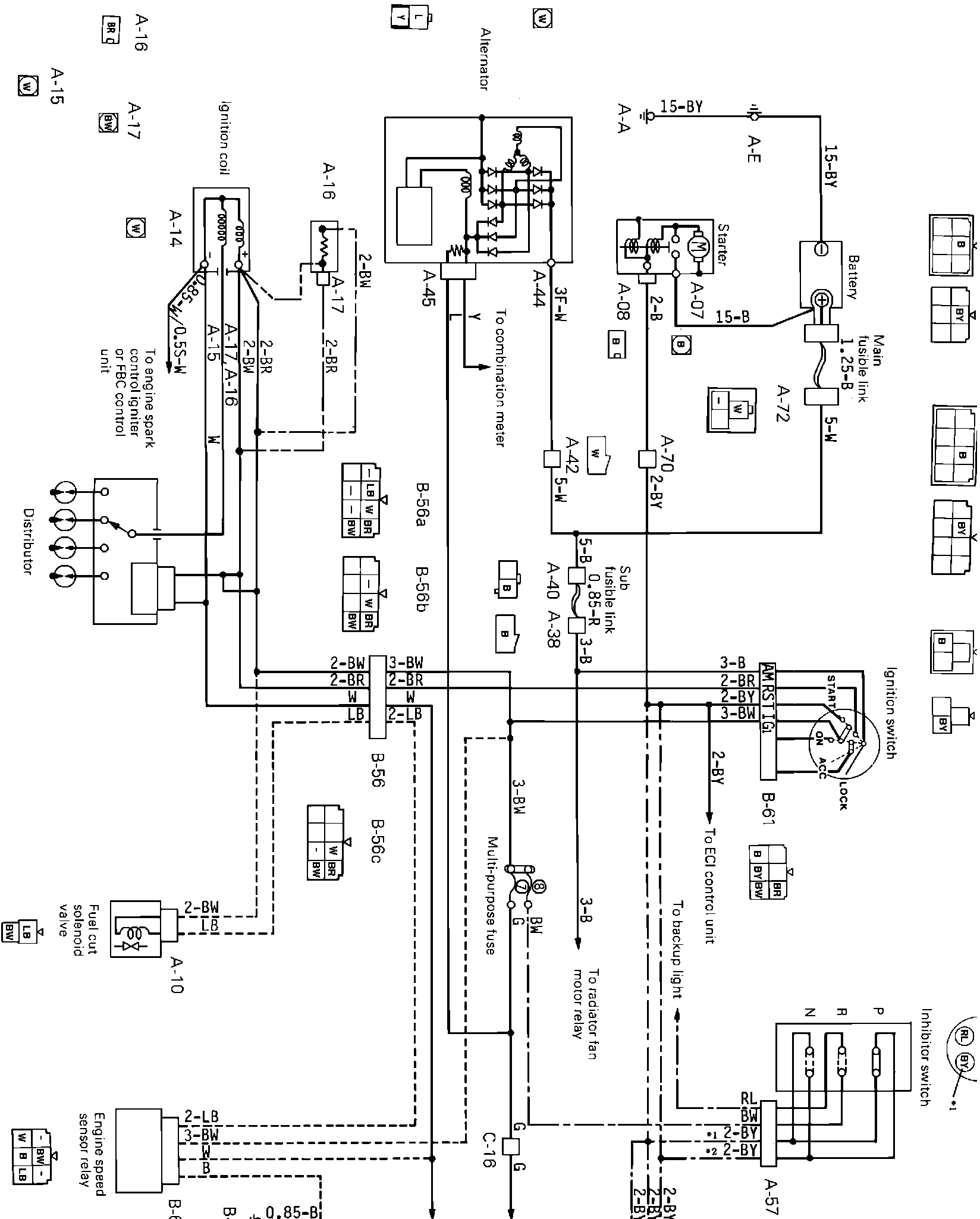

�$>��$>��$>Starting, Charging & Ignition Wiring Circuit:
