Home >> Plymouth >> 1986 >> Colt L4-1597cc 1.6L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Diagrams

Electrical Diagrams: Diagrams

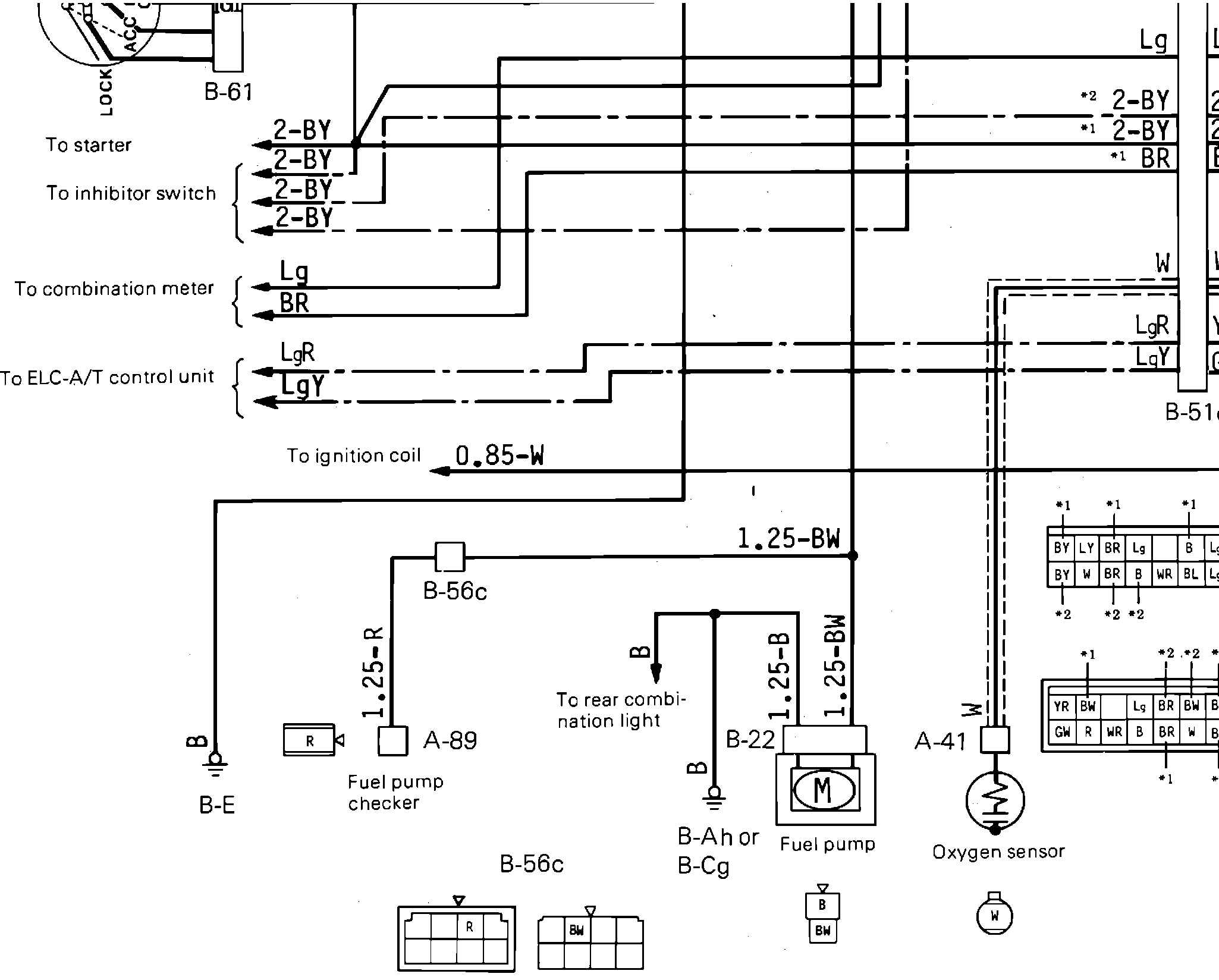

"T�1|��1~��1�×1I�1Computerized Engine Control Wiring Circuit:
