Plymouth
>>
1986
>>
Colt L4-1597cc 1.6L SOHC Turbo
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

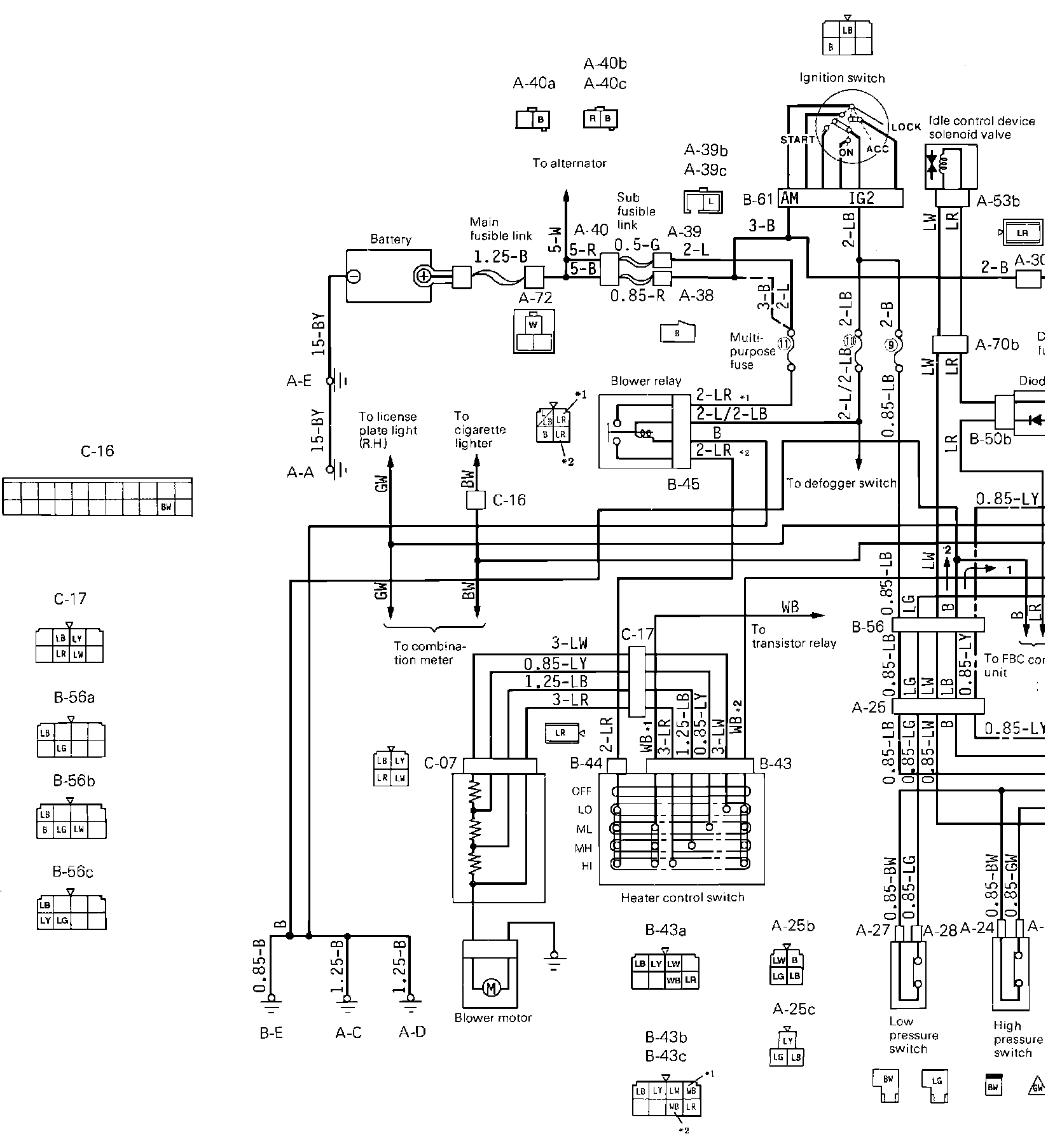

�#�AAir Conditioning Wiring Circuit:
