Plymouth
>>
1986
>>
Colt L4-1597cc 1.6L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Manual Transmission/Transaxle
Manual Transmission/Transaxle

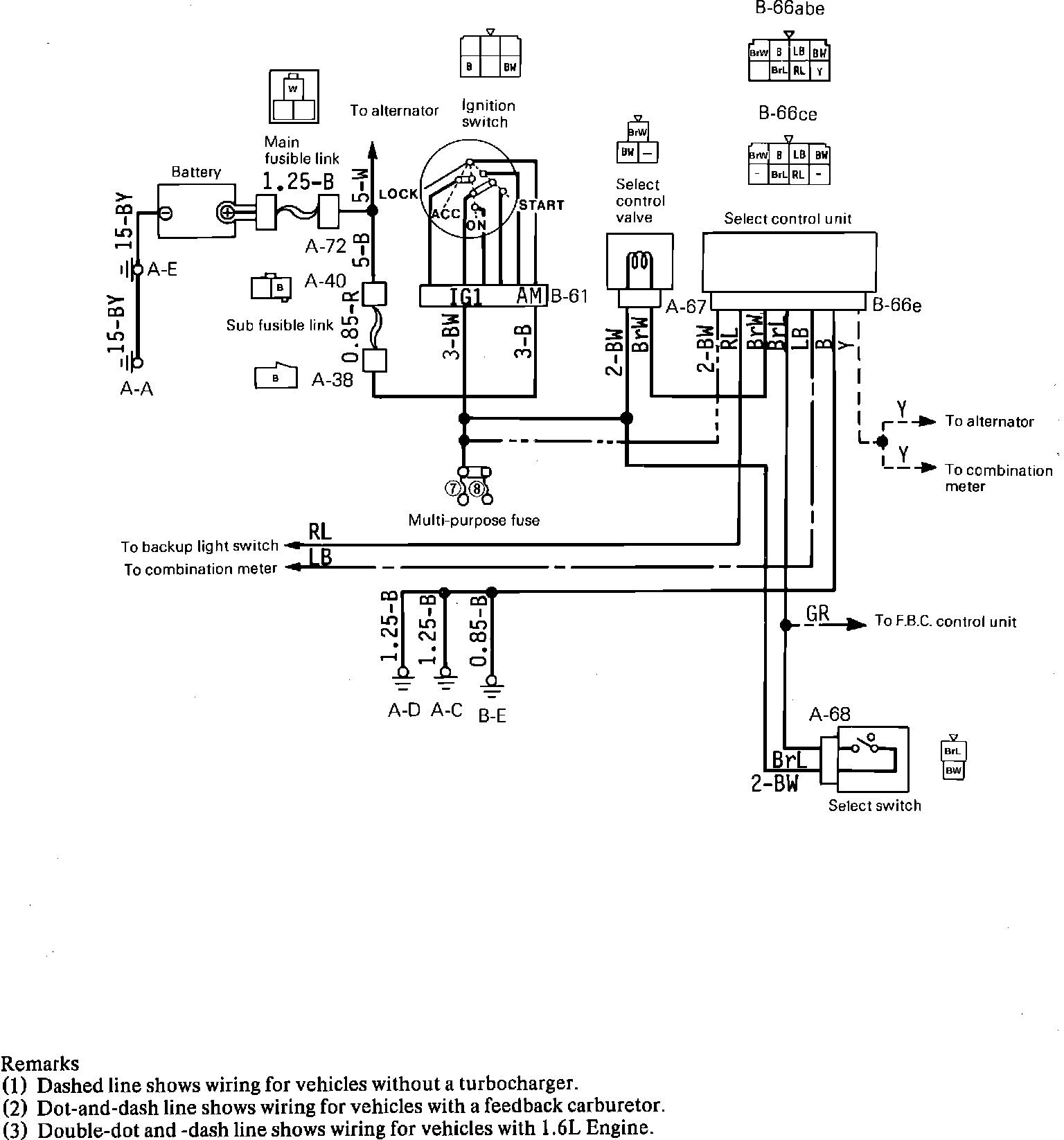

5-Speed Manual Transaxle Wiring Circuit:
