Plymouth
>>
1986
>>
Colt L4-1597cc 1.6L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
>>
U.S. Models
U.S. Models

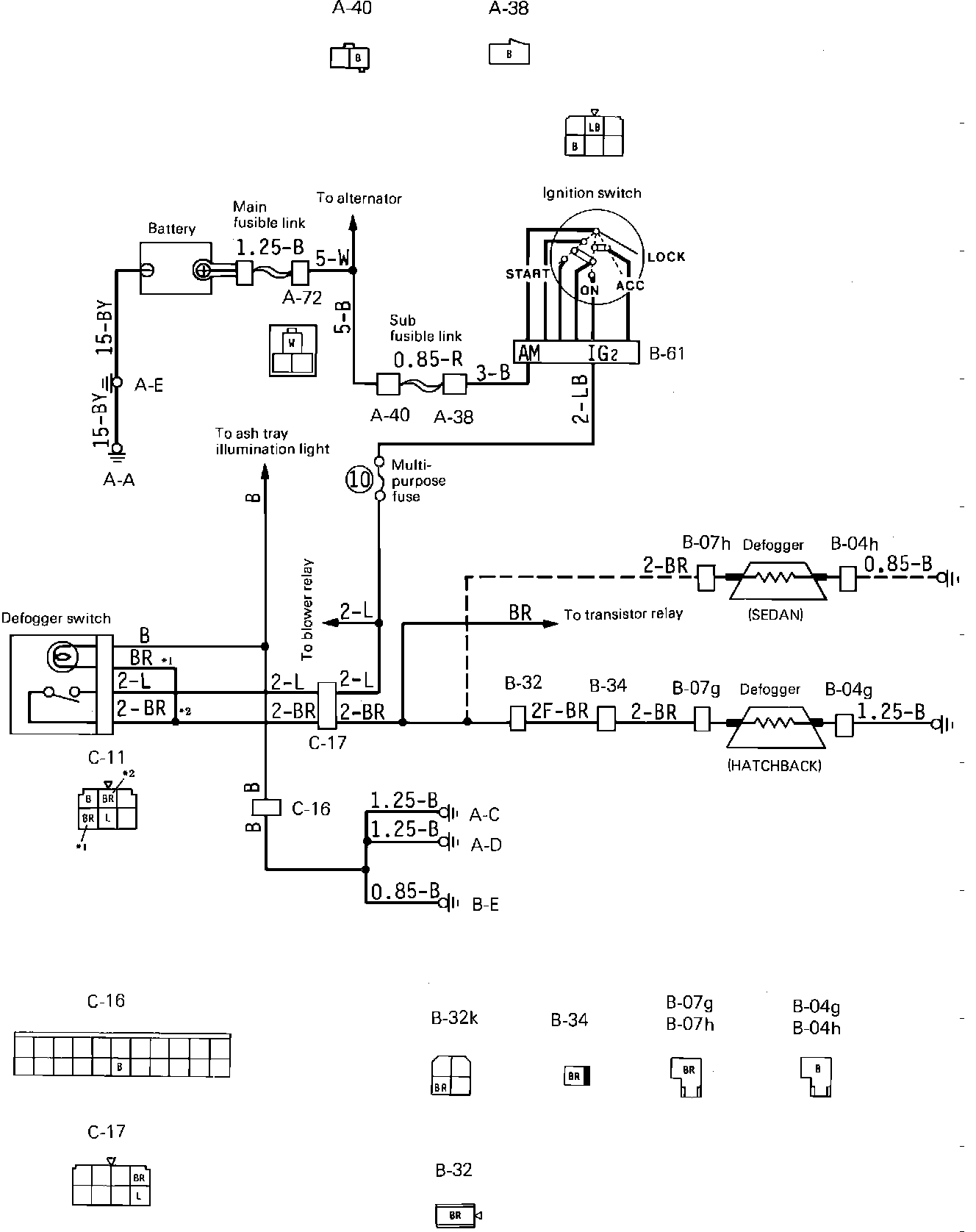

Defogger Wiring Circuit:
