Plymouth
>>
1986
>>
Colt L4-1597cc 1.6L SOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle

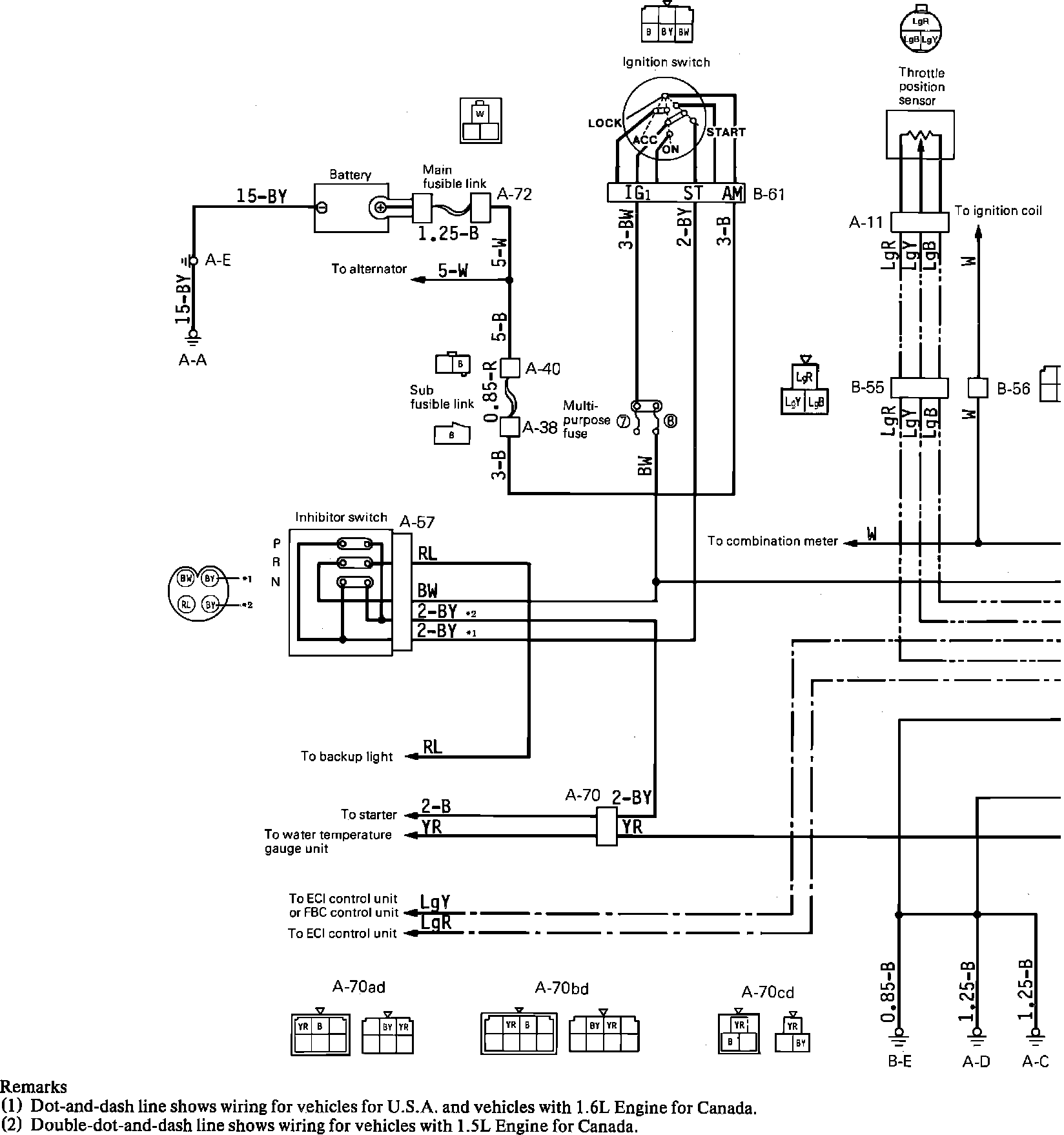

�q,1ELC 3-Speed Automatic Transaxle Wiring Circuit:
