A/C And Heater Controls
A/C And Heater Controls

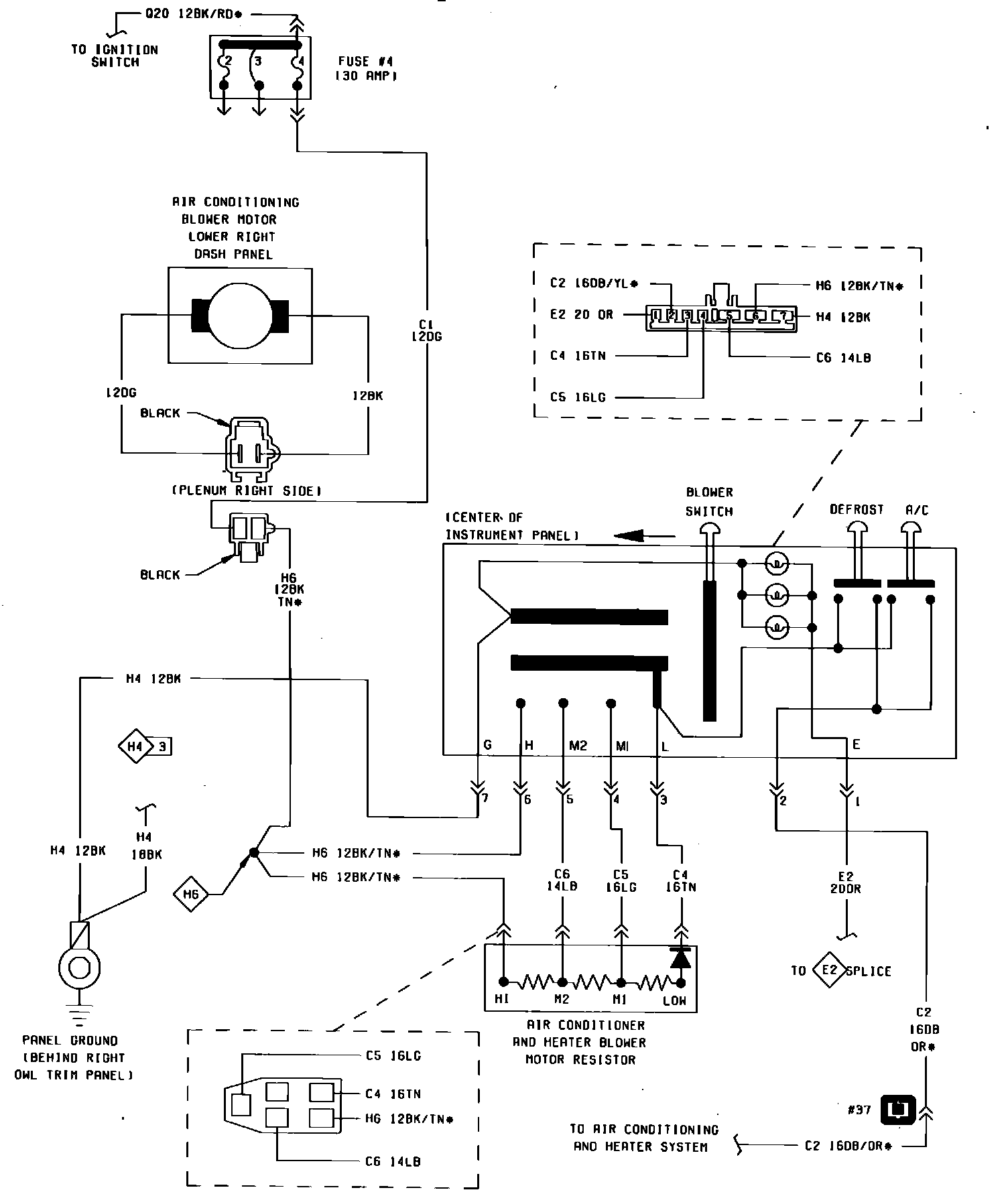

Fig. 18 Air Conditioning Wiring Circuit (Instrument Panel Portion):
