Plymouth
>>
1986
>>
Caravelle L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
Power Window Circuit Diagrams
>>
2 Door
2 Door

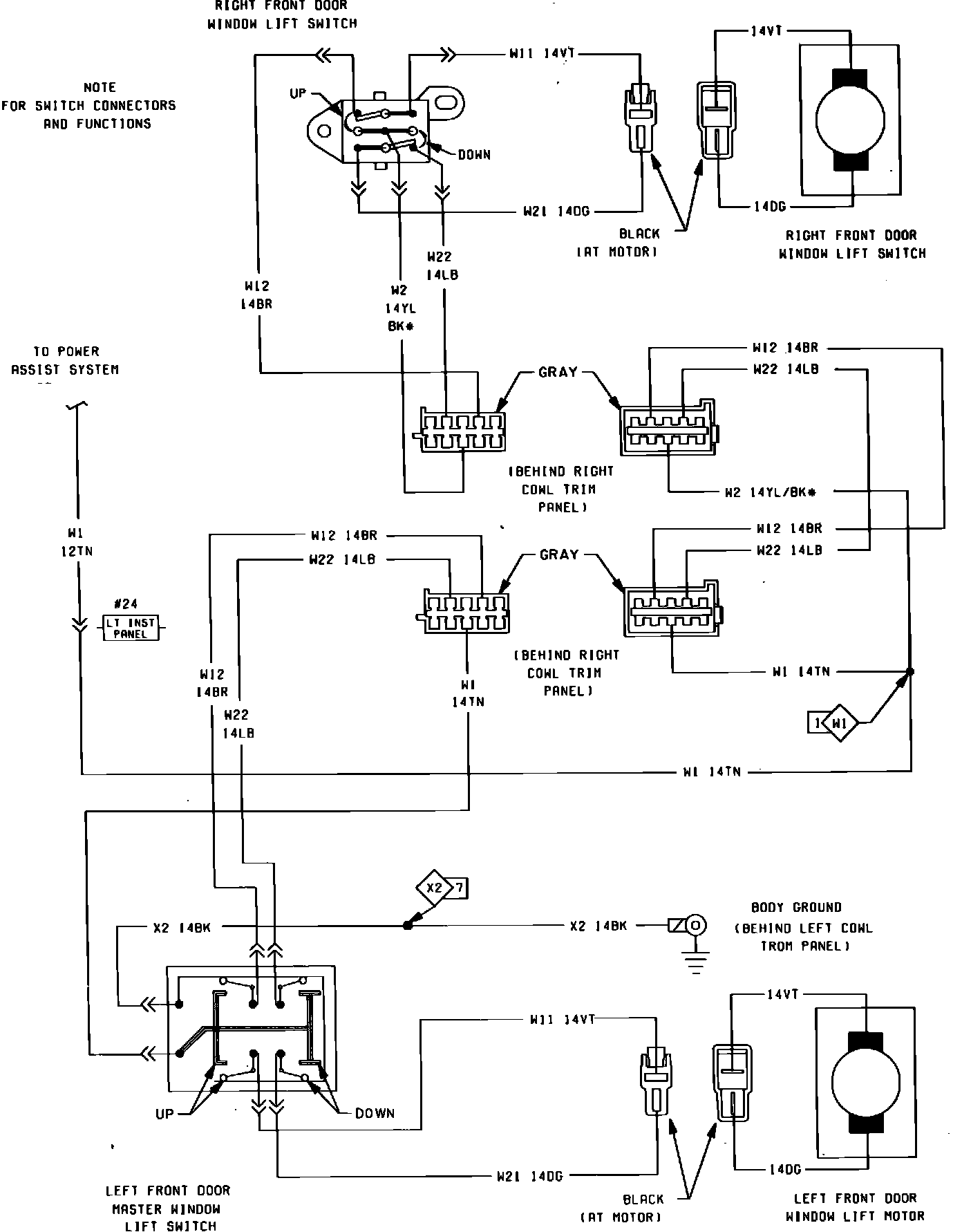

Fig. 59 Power Window System Wiring Circuit. LeBaron & 600 W/Hardtop:
