Plymouth
>>
1986
>>
Caravelle L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
Power Window Switch

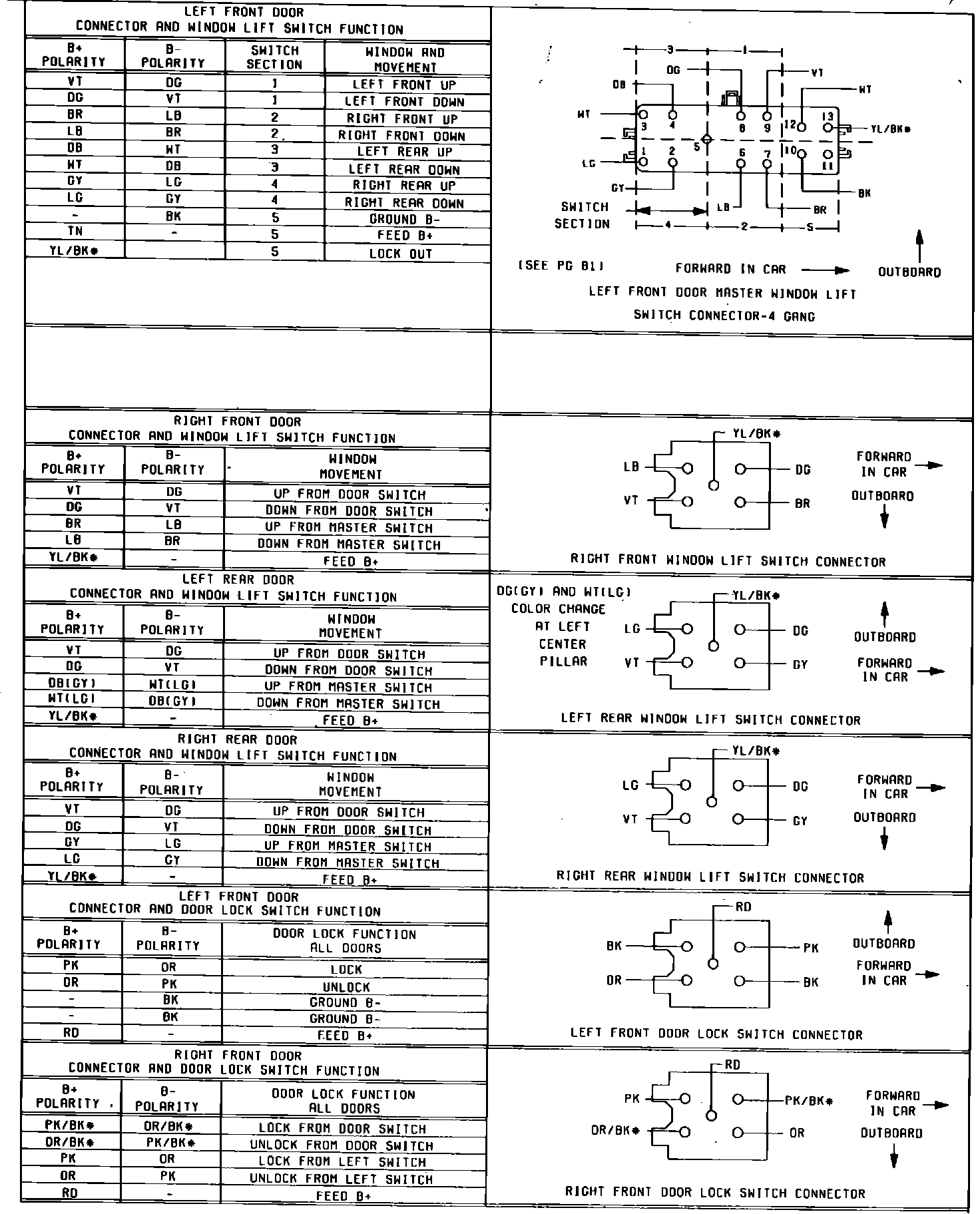

Fig. 16 Power Door Lock & Window Switch Connectors. 4 Door Model:
