Home >> Plymouth >> 1985 >> Reliant L4-135 2.2L SOHC >> Repair and Diagnosis >> Locations >> Splice Locations >> Body, Cowl & Steering Column Splices >> Front Door

Front Door

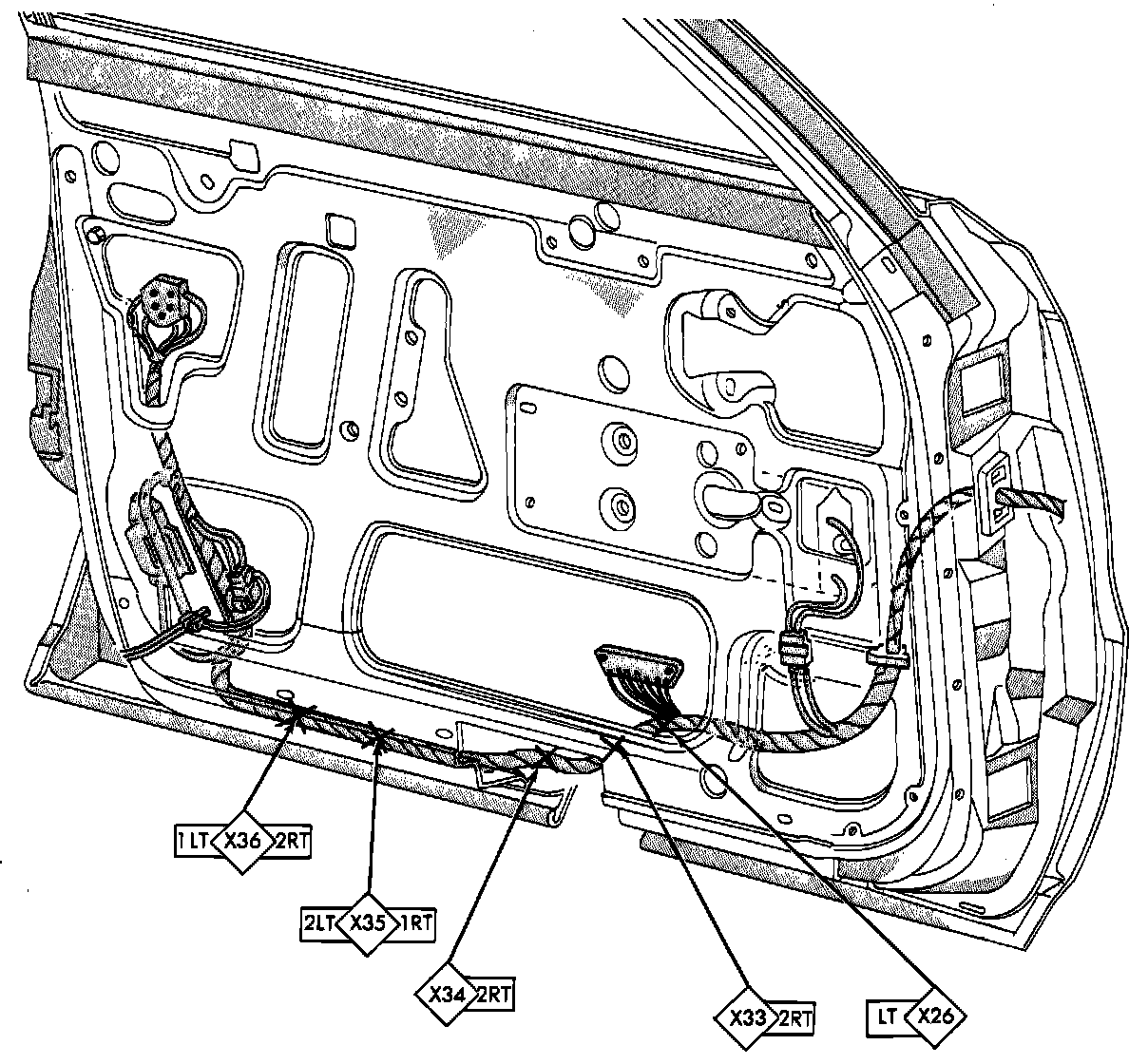

Fig. 64 Splice Location (Front Door, Part 1 of 2). 1985:

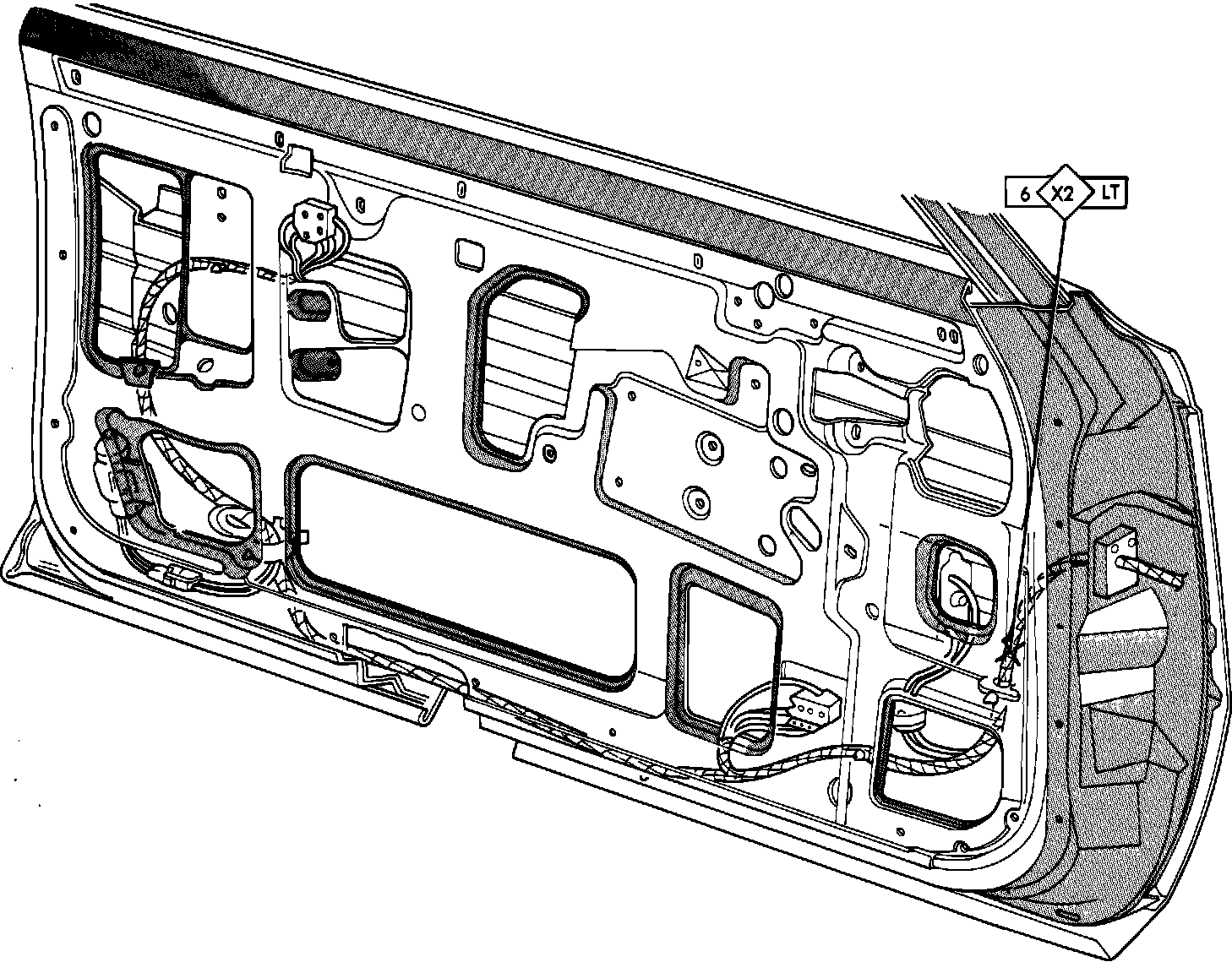

Fig. 64 Splice Location (Front Door, Part 2 of 2). 1985:
