Home
>>
Plymouth
>>
1985
>>
Reliant L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
Power Window Circuit Diagrams
>>
2 Door
2 Door

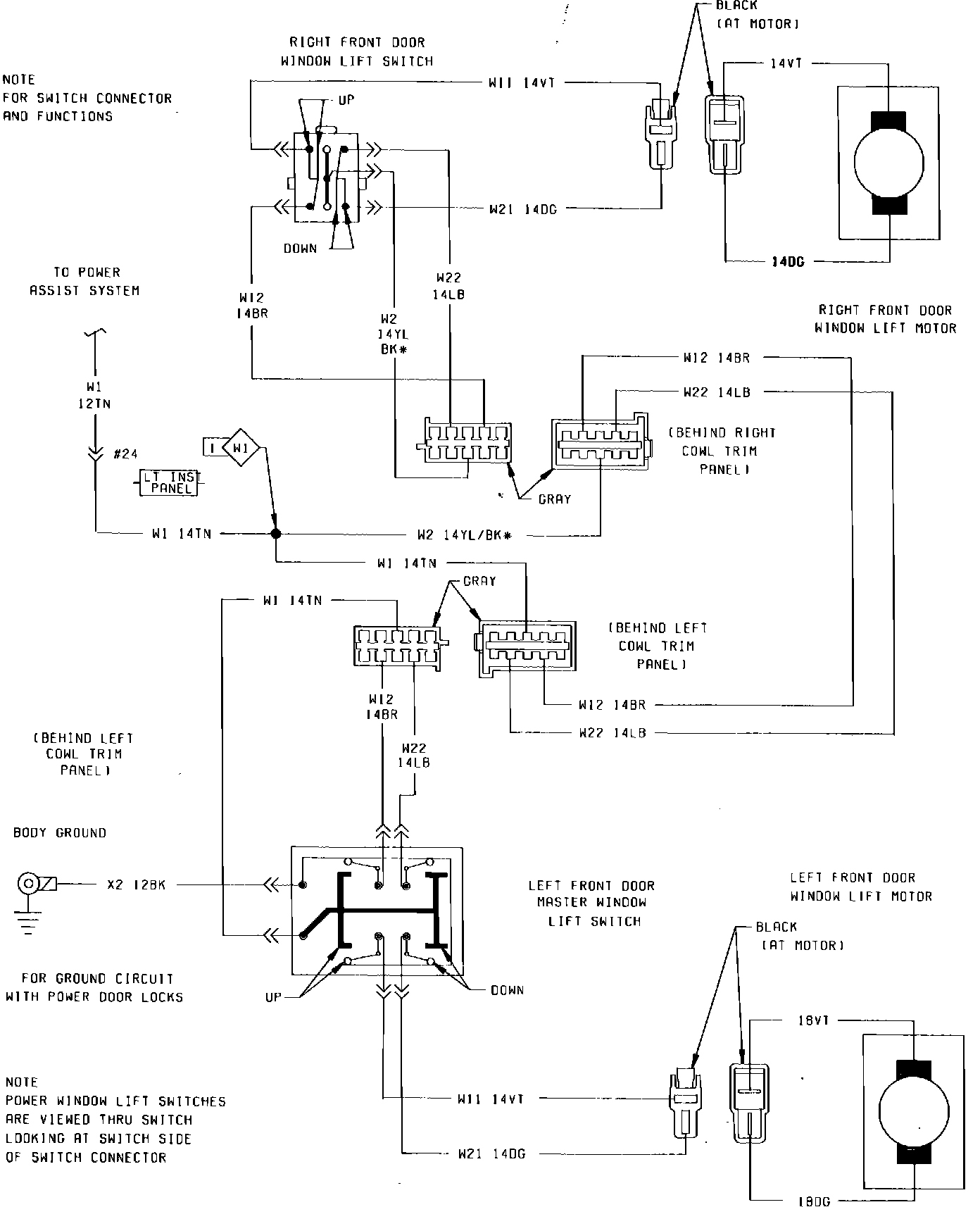

Fig. 41 Power Window Wiring Circuit. 1985 2 Door:
