Power Assist System Wiring Circuit
Power Assist System Wiring Circuit

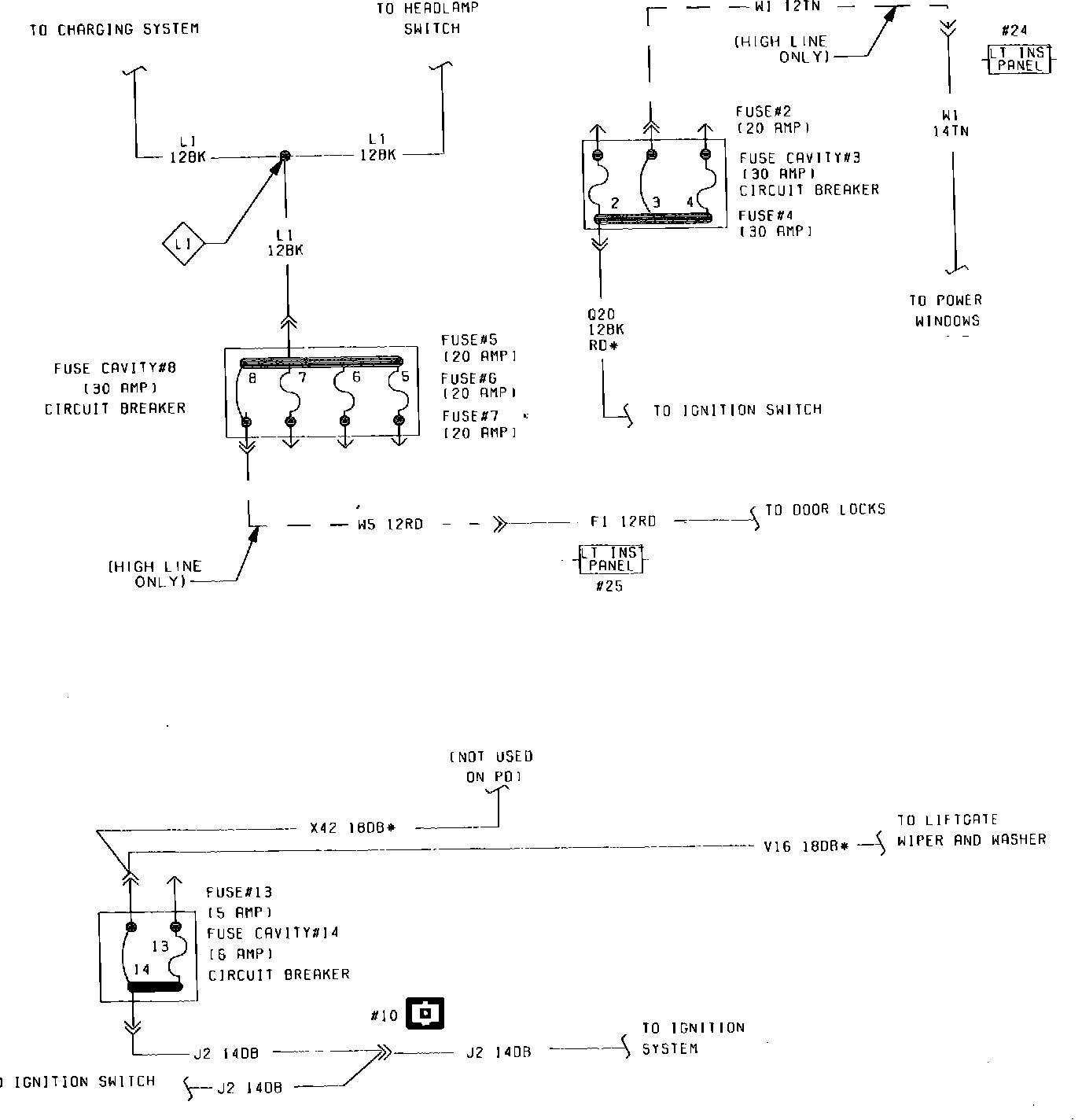

Fig. 37 Power Assist System Wiring Circuit:
