Plymouth
>>
1985
>>
Reliant L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Door Switch
Door Switch

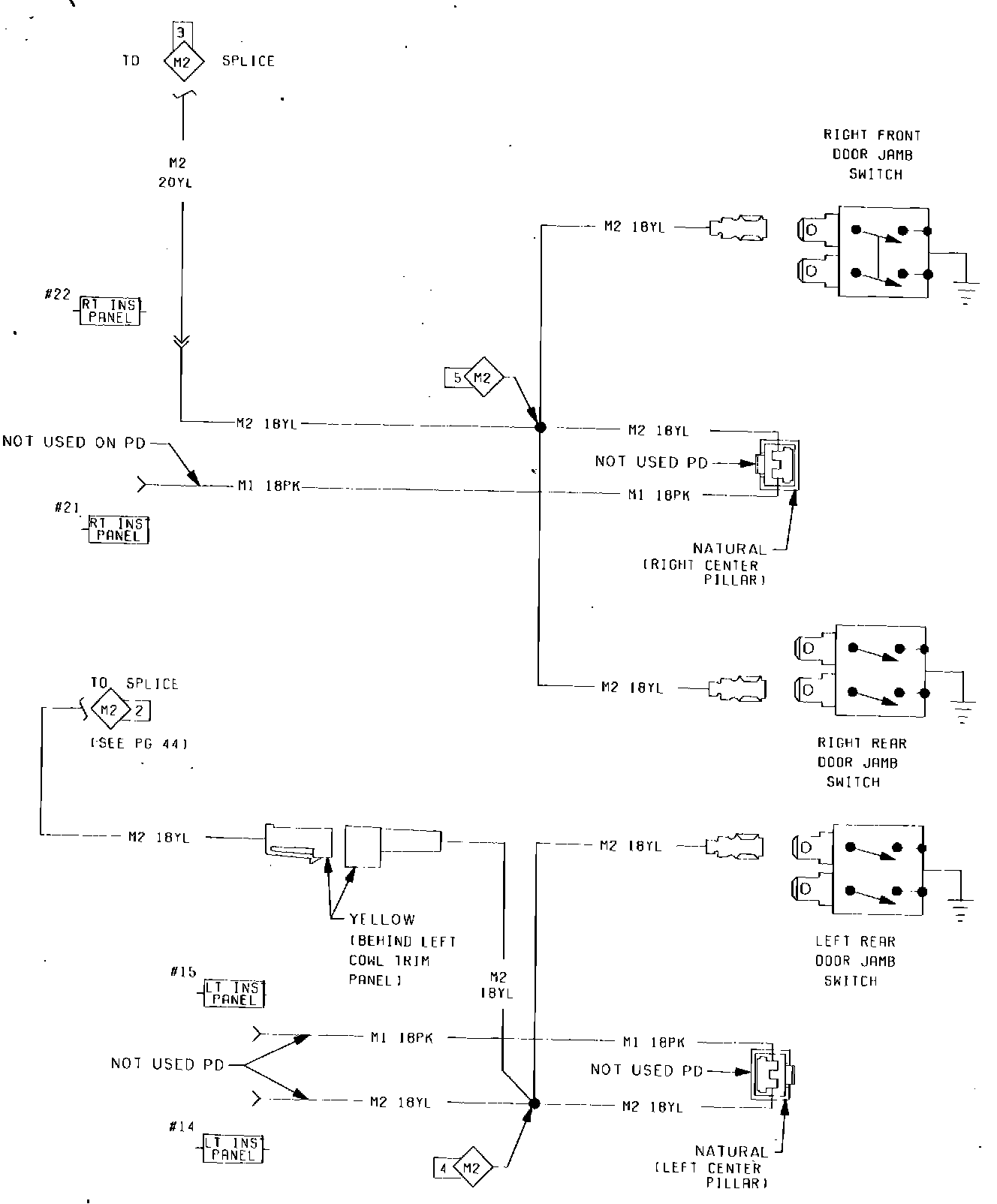

Fig. 45 Rear Door Jamb Switches:
