Home
>>
Plymouth
>>
1985
>>
Reliant L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
>>
System Diagram
>>
Left Side
>>
Part 1 of 2
Part 1 of 2

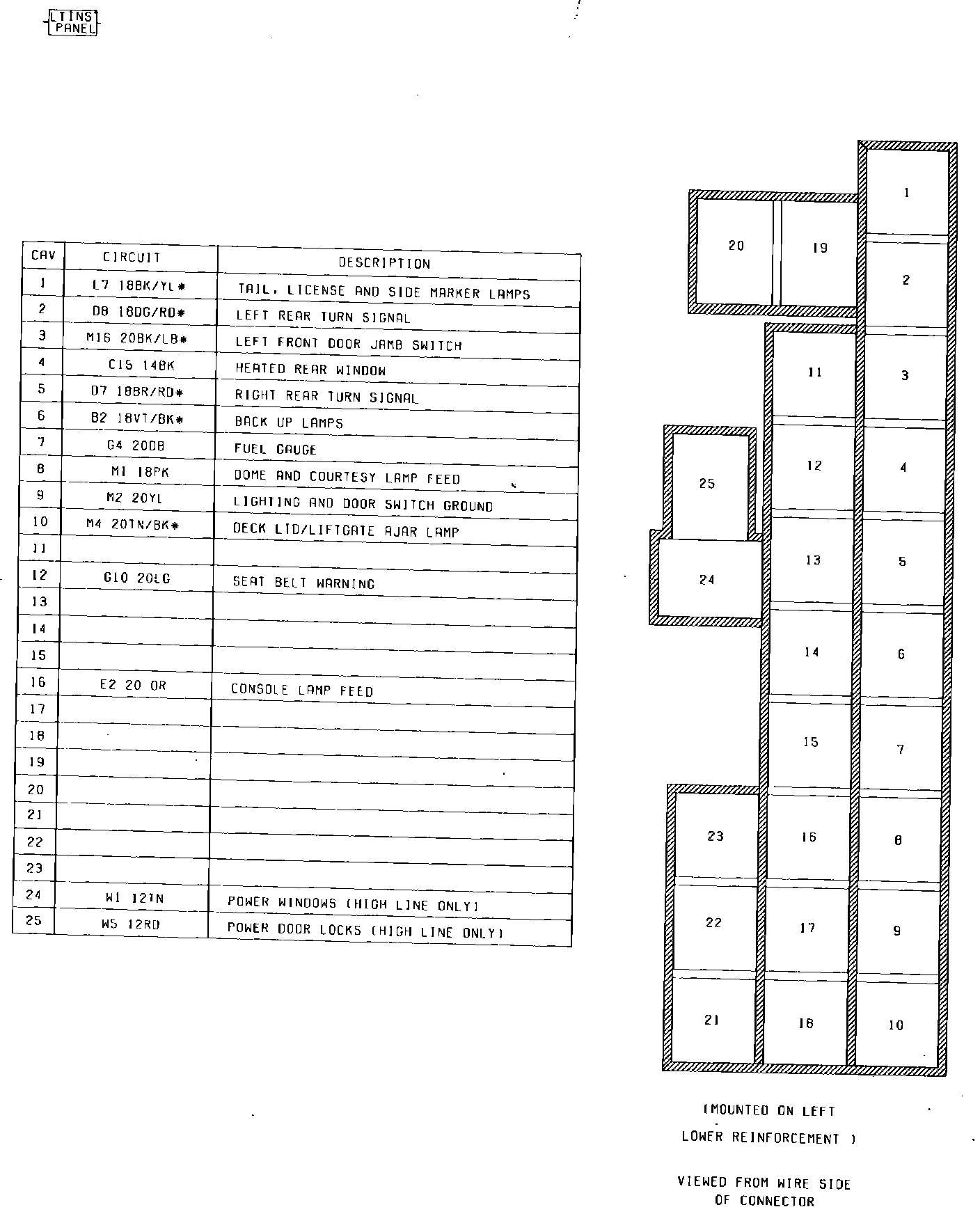

Fig. 6 Instrument Panel To Body Connector (25 Way Left Side, Part 1 of 2). 1985:
