Plymouth
>>
1985
>>
Colt L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

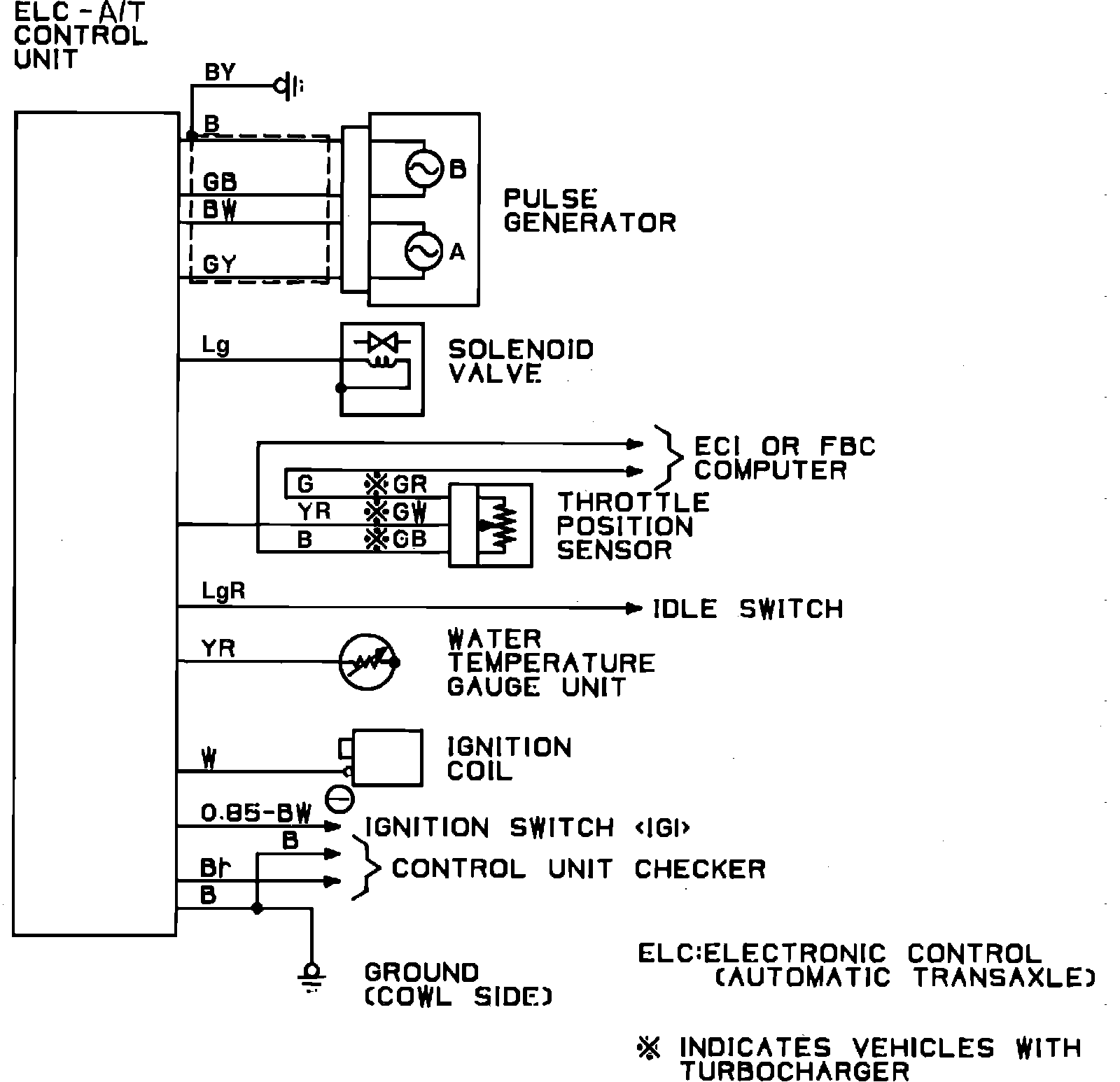

ELC Automatic Transaxle Wiring Circuit:
