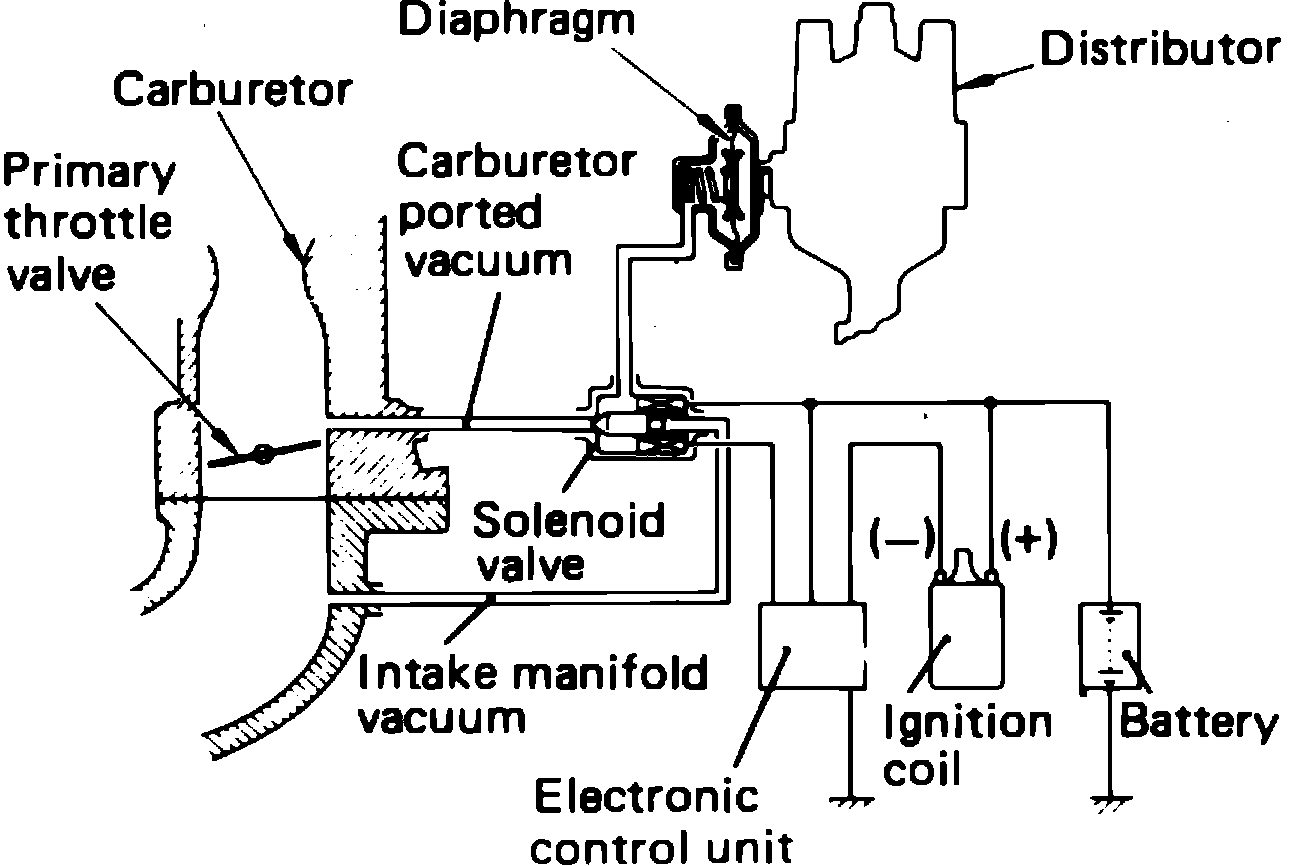

Deceleration Spark Advance System (DSAS). Less Turbo
Deceleration Spark Advance System (DSAS). Less Turbo
Deceleration Spark Advance System (DSAS). 1984-85 1400cc, 1500cc, 1600cc Non-Turbocharged, & 2000cc engines, exc. Pickup:
