Caravelle L4-156 2.6L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>

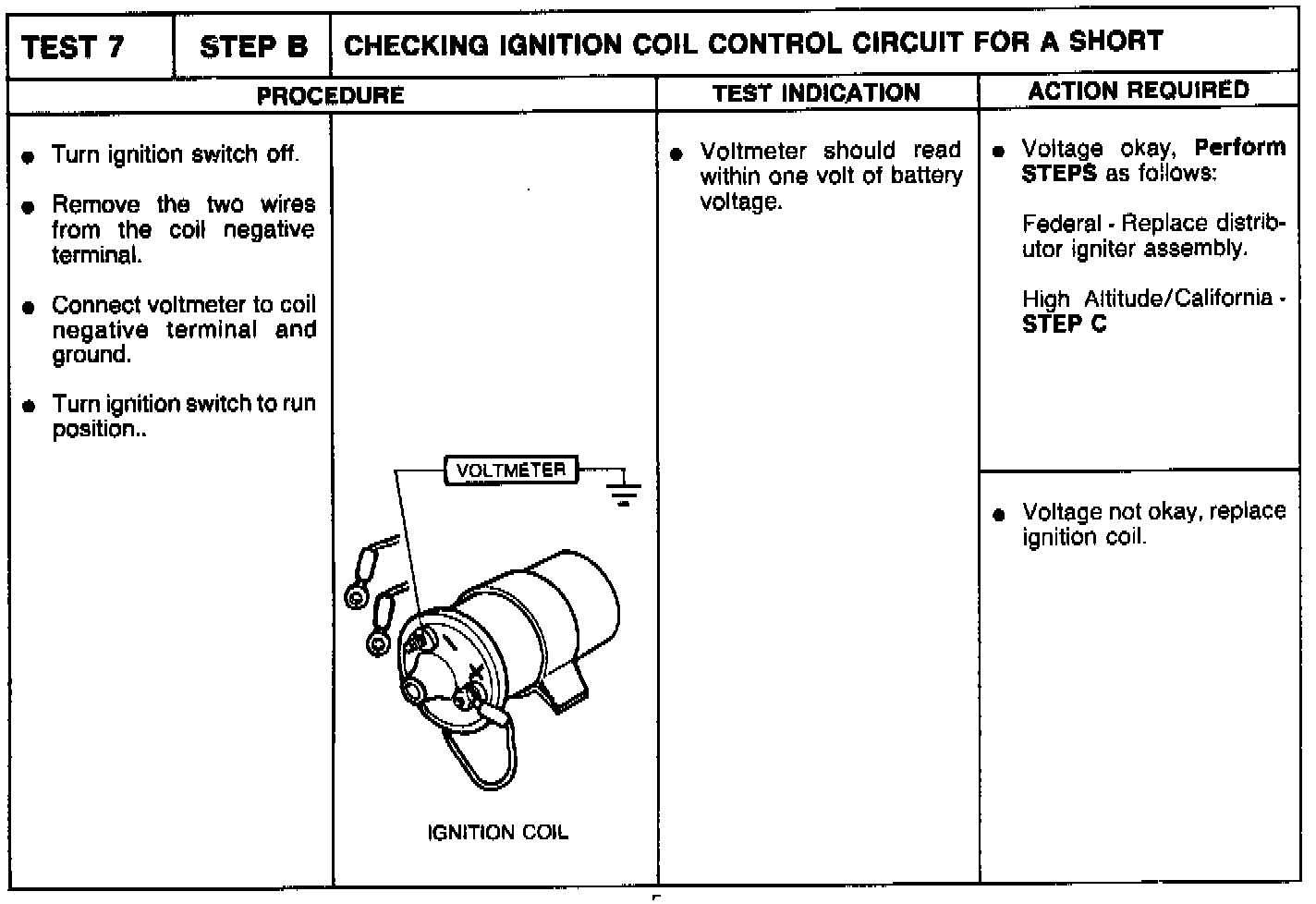

7B Checking Ignition Coil Control Circuit for a Short
7B Checking Ignition Coil Control Circuit for a Short
Diagnostic Chart:
