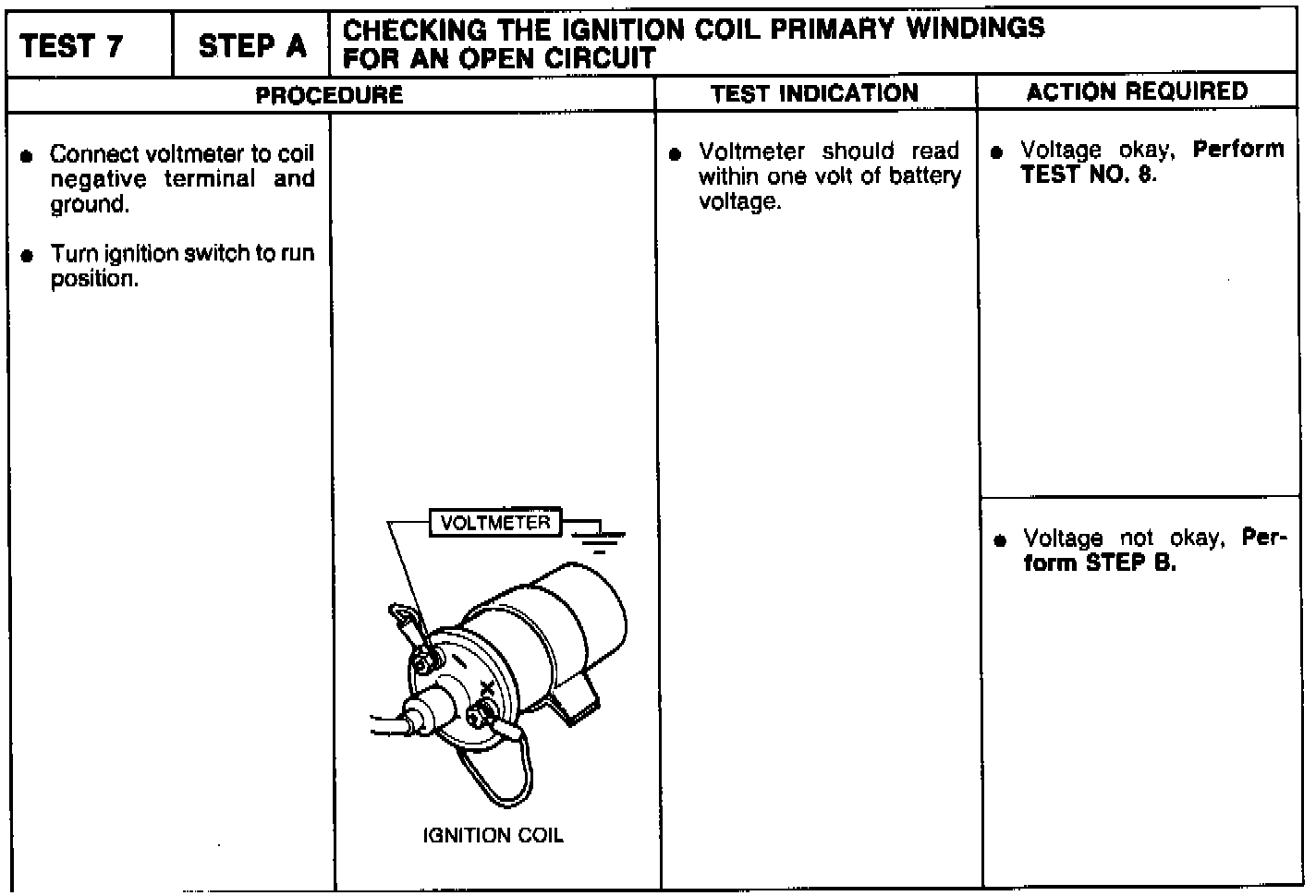

7A Checking Ignition Coil Primary Windings for an Open Circuit
7A Checking Ignition Coil Primary Windings for an Open Circuit
Diagnostic Chart:
