Plymouth
>>
1985
>>
Caravelle L4-156 2.6L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>

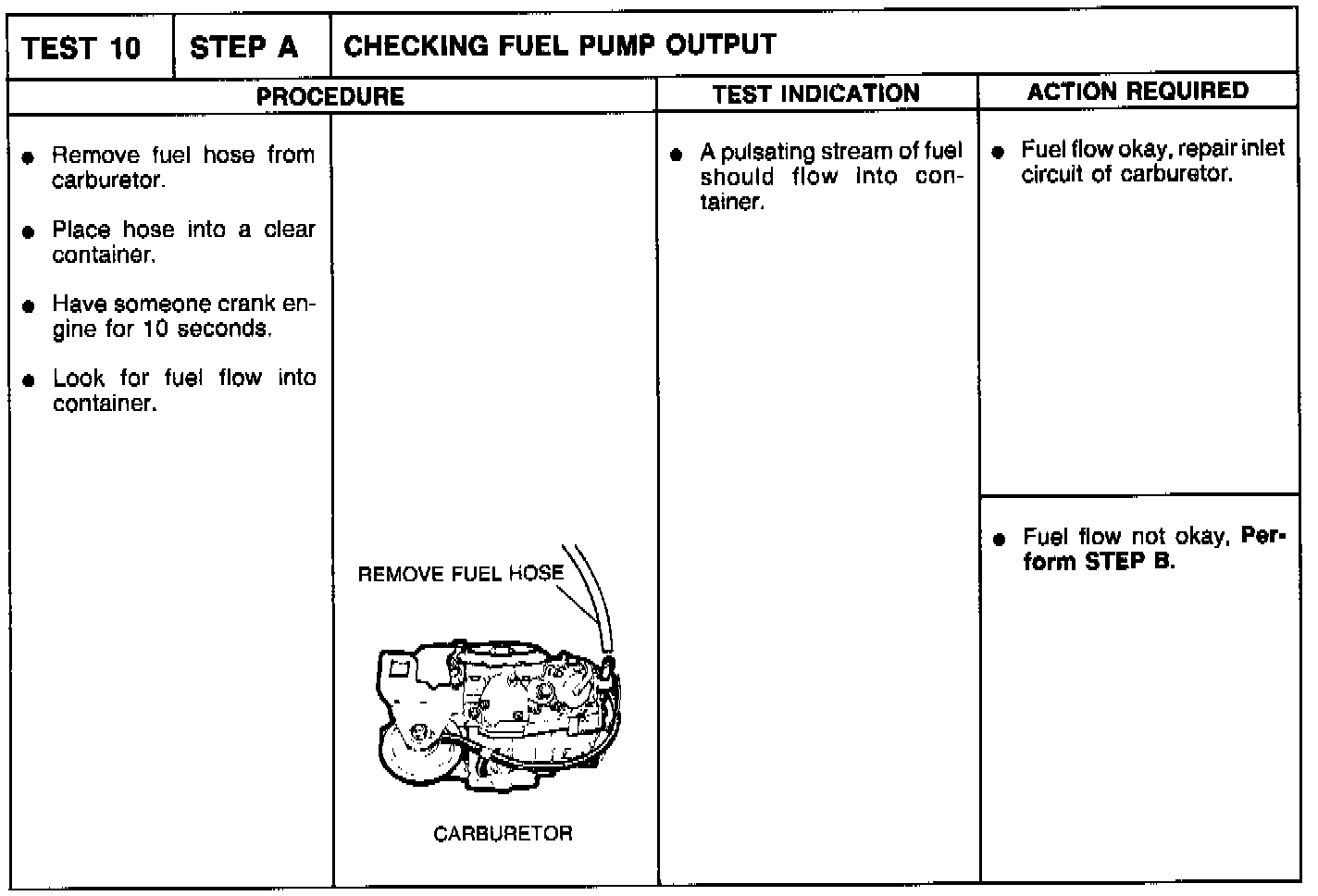

10A Checking Fuel Pump output
10A Checking Fuel Pump output
Diagnostic Chart:
