Carbureted
Carbureted

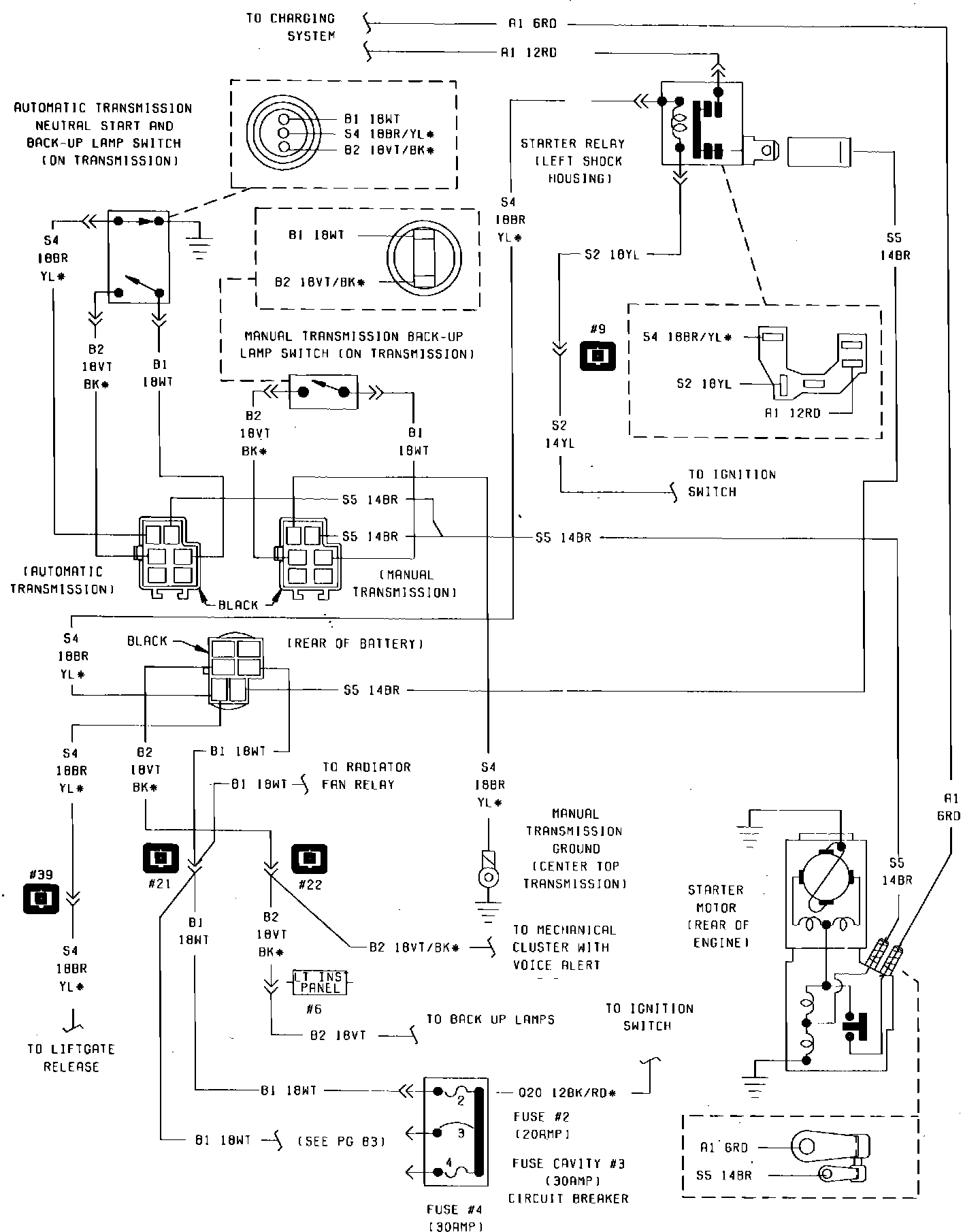

Fig. 83 Starter System Wiring Circuit. 1985 W/2.2 Litre Engine, Less EFI Or Turbo:
