No Start
>>

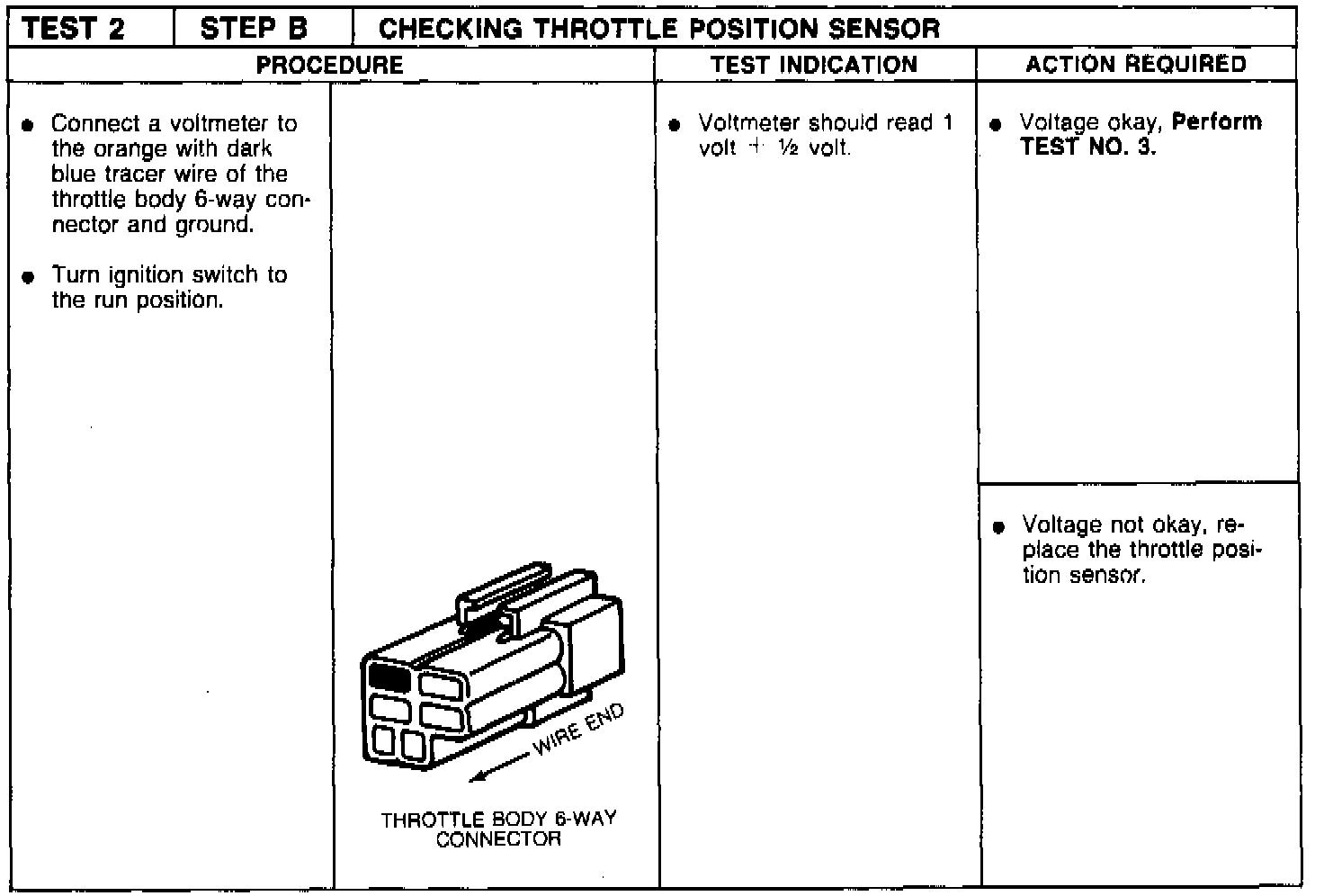

2B Checking Throttle Position Sensor
2B Checking Throttle Position Sensor
Diagnostic Chart:
