Home >> Plymouth >> 1985 >> Caravelle L4-135 2.2L SOHC Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start (NS) Tests >> No Start Ignition >> 2C Checking Ignition Coil Wire For Open

2C Checking Ignition Coil Wire For Open

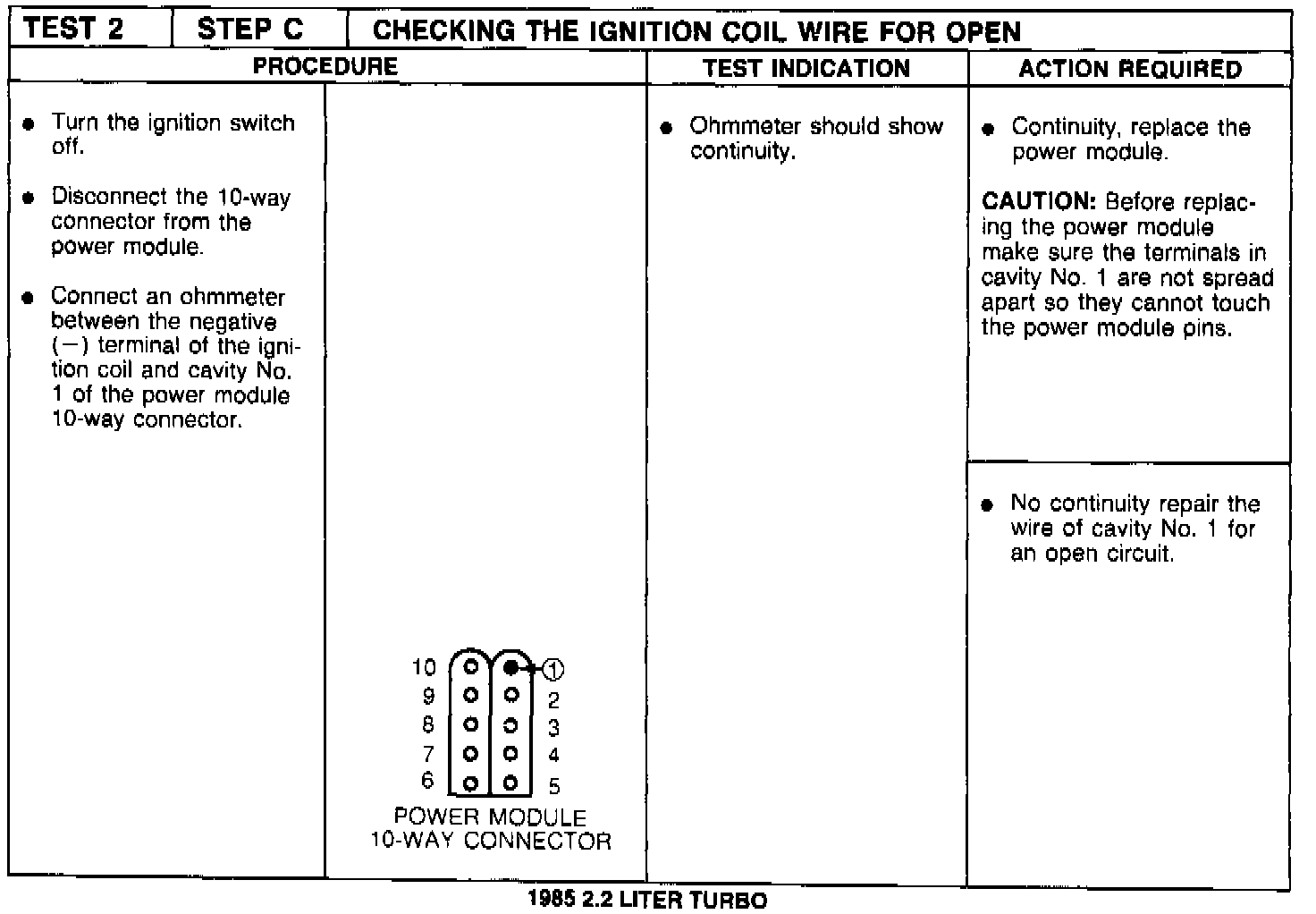

Diagnostic Chart:
