Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1985
>>
Caravelle L4-135 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start (NS) Tests
>>
No Start Ignition/Injectors
>>
2H Checking For 8 Volts at Power Module
2H Checking For 8 Volts at Power Module

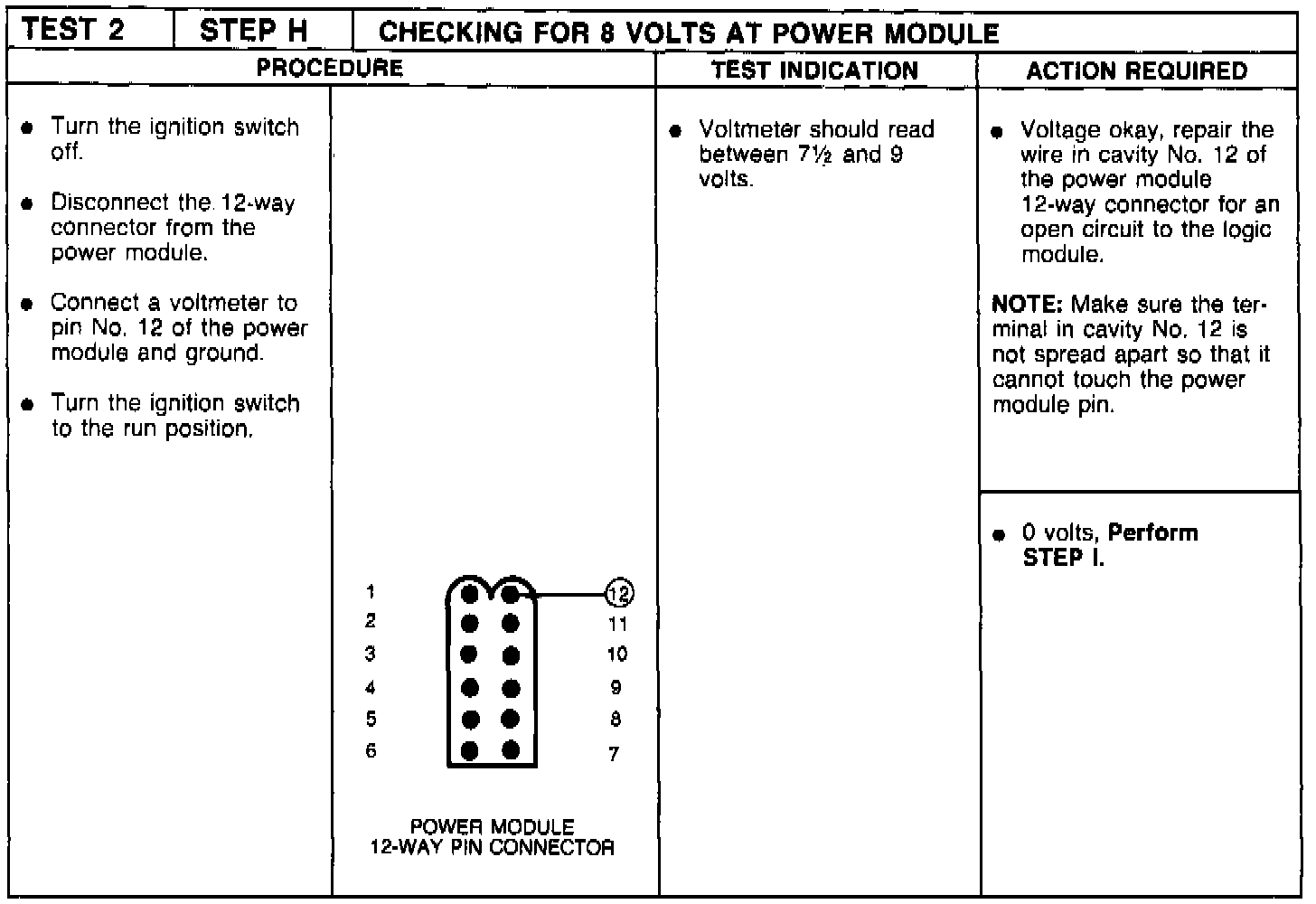

Diagnostic Chart:
