Caravelle L4-135 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start (NS) Tests
>>
No Start Ignition/Injectors
>>
2G Checking For A Shorted DIST. P/U Coil
2G Checking For A Shorted DIST. P/U Coil

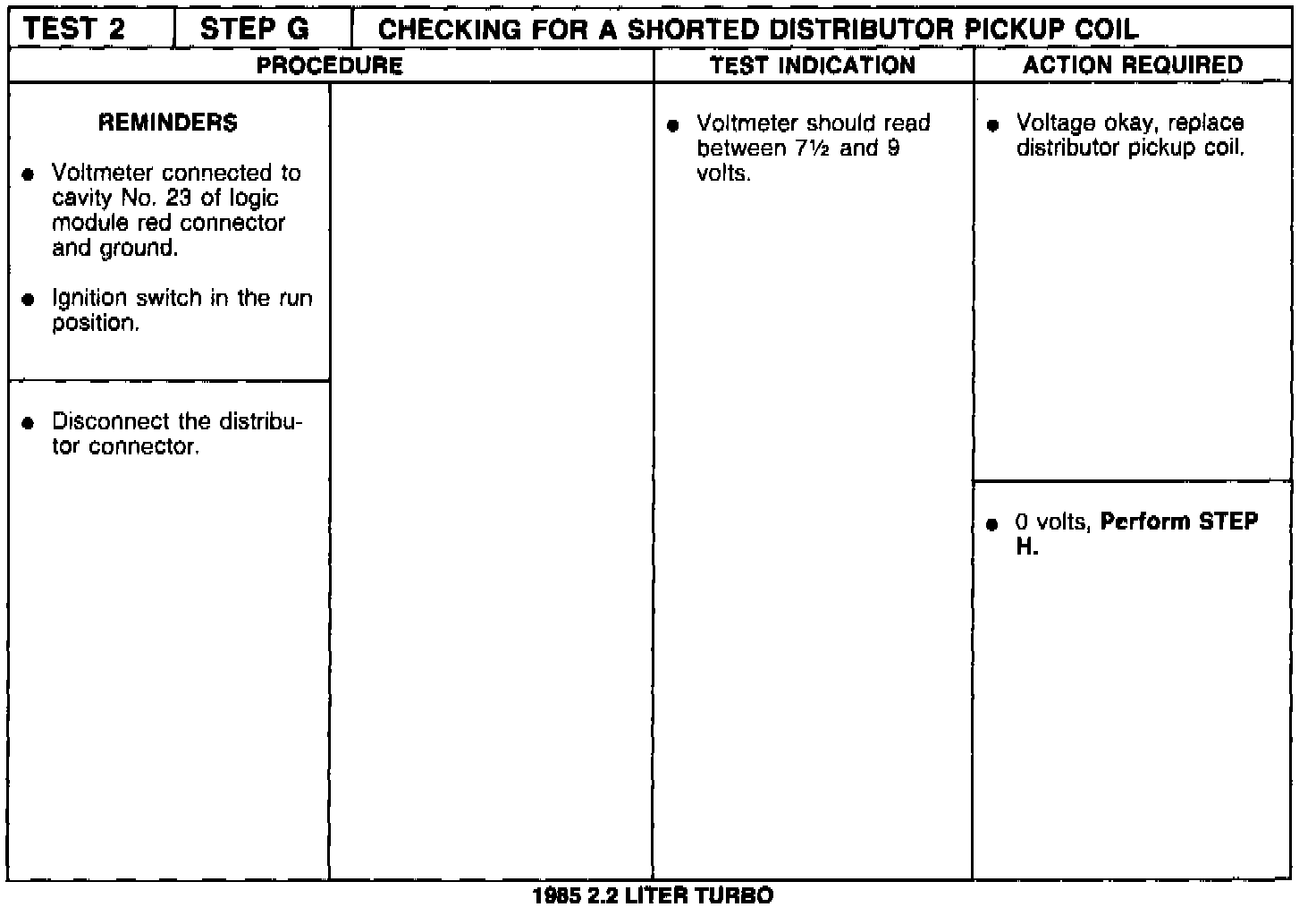

Diagnostic Chart:
