Caravelle L4-135 2.2L SOHC Turbo
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start (NS) Tests
>>
No Start Ignition/Injectors
>>
2D Checking Logic Module Ground Circuit
2D Checking Logic Module Ground Circuit

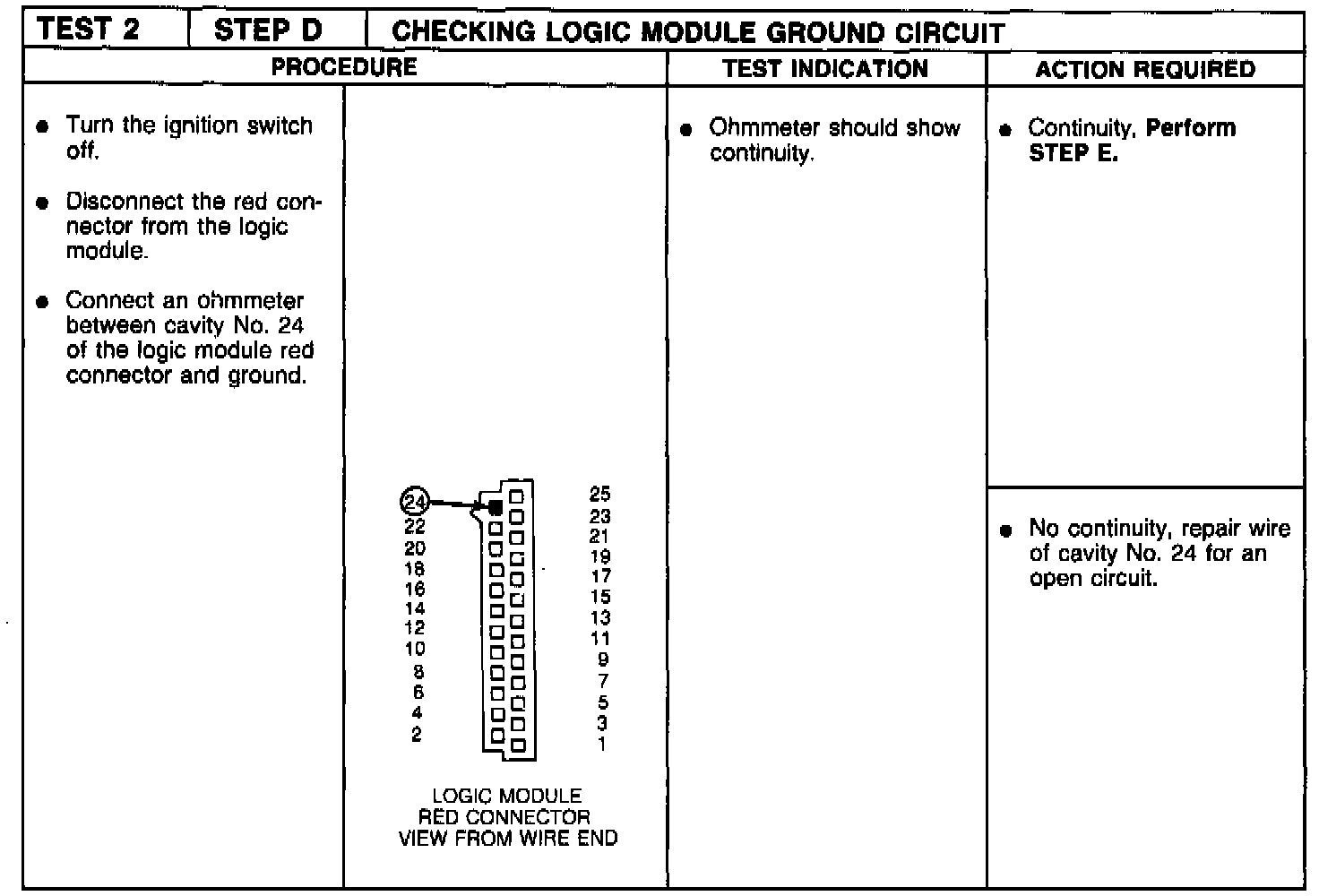

Diagnostic Chart:
